Allen-Bradley MicroLogix 1400 User Manual

314 Rockwell Automation Publication 1766-UM001I-EN-P - June 2015
Appendix F MicroLogix 1400 Distributed Network Protocol (DNP3)

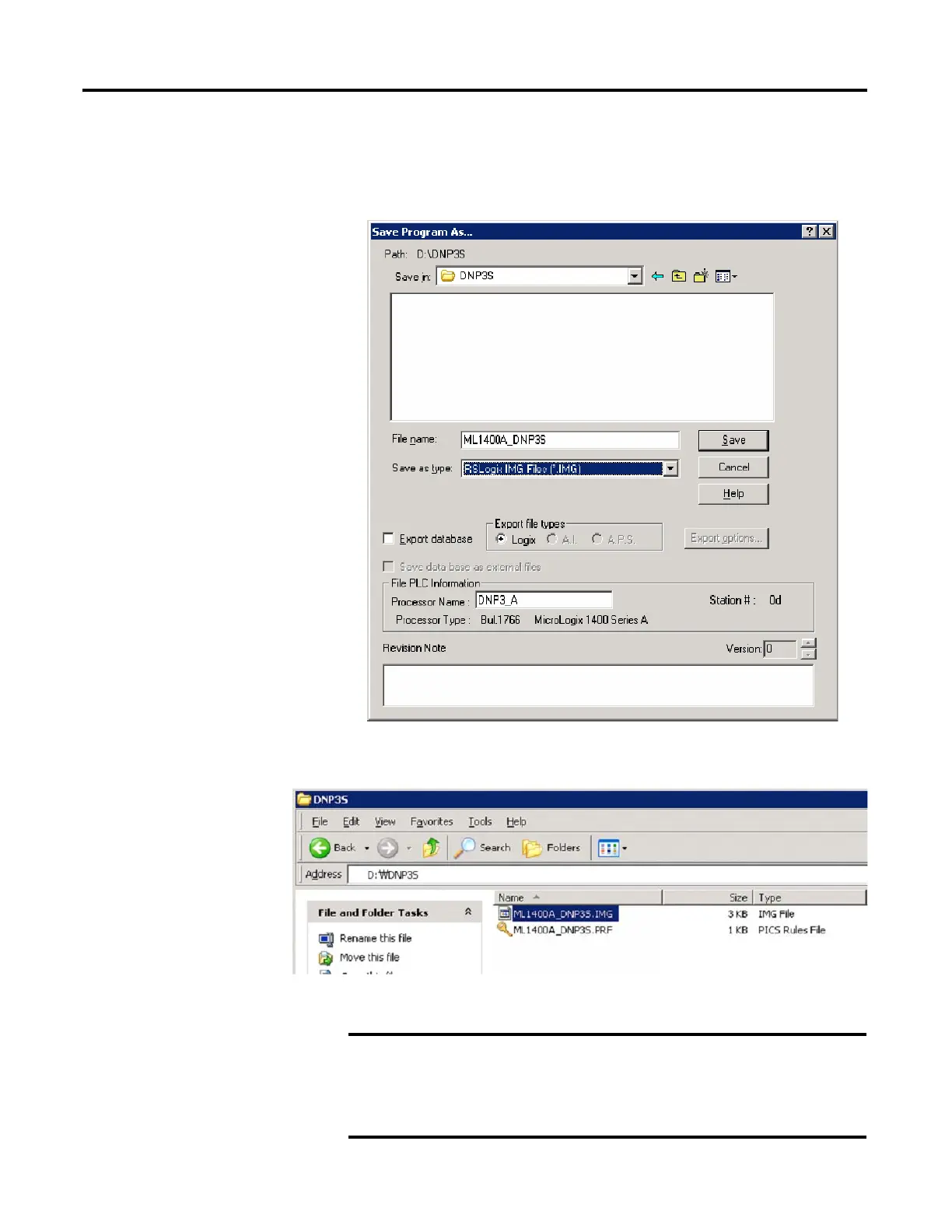

After you write your ladder program, select "Save As …" from the File menu of
RSLogix 500/RSLogix Micro. Select the save type as "RSLogix IMG Files
(*.IMG)"
After saving the file, you can see the file "ML1400A_DNP3S.IMG". This is the
file to be used for download.
IMPORTANT
RSLogix 500/RSLogix Micro v8.10.00 and the MicroLogix 1400 Series
A controller do not support the opening of *.IMG files. Be sure to
store your ladder program in the RSLogix Files (*.RSS) format before
generating RSLogix IMG Files (*.IMG). Otherwise, you may lose the
latest modifications to your ladder program.

Allen-Bradley MicroLogix 1400 Specifications

General

Processor	32-bit
Expansion Modules	Up to 7 expansion I/O modules
Power Supply	24V DC or 120/240V AC
Programming Software	RSLogix 500
Communication Ports	Ethernet, RS-232/RS-485 combo port
Controller Type	Programmable Logic Controller (PLC)
Series	MicroLogix
Digital Outputs	12
Analog Inputs	6 (embedded)
Analog Outputs	2 (embedded)
High-Speed Counter	6 high-speed counters
Pulse Output	2 (embedded)
Ethernet Port	Yes
