Allen-Bradley MicroLogix 1400 User Manual

332 Rockwell Automation Publication 1766-UM001I-EN-P - June 2015
Appendix F MicroLogix 1400 Distributed Network Protocol (DNP3)

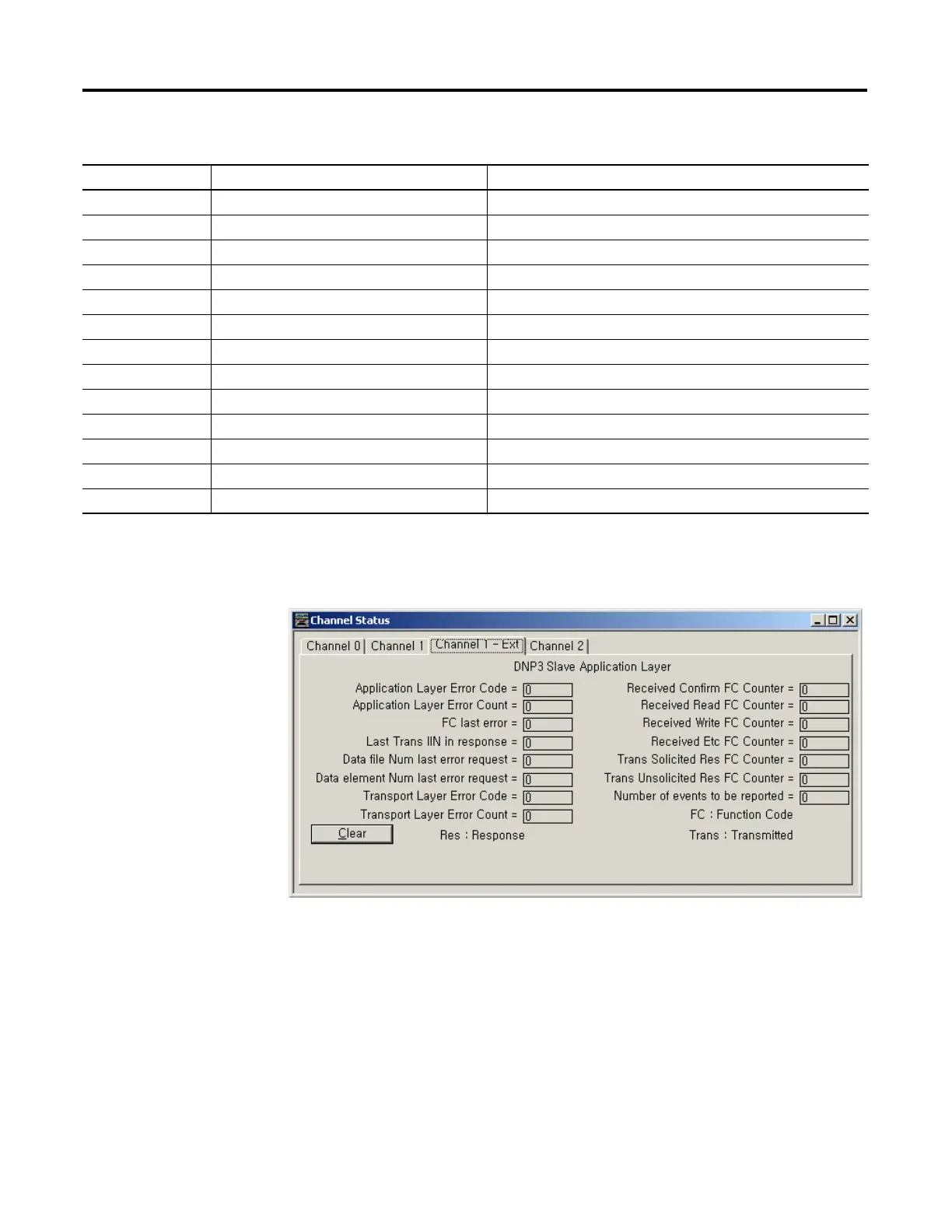

For the elements of the DNP3 Slave Application Layer diagnostic counter
element offset 60 to 74, the counter values available with the structured display
in RSLogix 500/RSLogix Micro software as below.
18 ERR_PACKET_RELEASE Firmware use only
19-29 Reserved -
30 ERR_CONN_REJECTED Incoming Connection is rejected by the IP address validation.
31 ERR_INVALID_HEADER_CRC Received packet header has invalid CRC.
32 ERR_INVALID_HEADER Received packet header has invalid packet format.
33 ERR_INVALID_PACKET_CRC Received packet has invalid CRC.
34 ERR_BAD_PACKET_RECEIVED Received packet is unknown.
35 ERR_PACKET_REJECTED Received packet is rejected.
36 ERR_CONNECTION_BROKEN The connection has been broken for some reason.
37-49 Reserved -
50 ERR_INVALID_IP_ADDRESS Target IP Address is invalid.
51 ERR_INVALID_PORT Target Port Number is invalid.
52- Reserved -
Error Codes
Value (DEC) Mnemonic Description

Allen-Bradley MicroLogix 1400 Specifications

General

Processor	32-bit
Expansion Modules	Up to 7 expansion I/O modules
Power Supply	24V DC or 120/240V AC
Programming Software	RSLogix 500
Communication Ports	Ethernet, RS-232/RS-485 combo port
Controller Type	Programmable Logic Controller (PLC)
Series	MicroLogix
Digital Outputs	12
Analog Inputs	6 (embedded)
Analog Outputs	2 (embedded)
High-Speed Counter	6 high-speed counters
Pulse Output	2 (embedded)
Ethernet Port	Yes
