Rockwell Automation Publication 1766-UM001I-EN-P - June 2015 43
Wire Your Controller Chapter 3

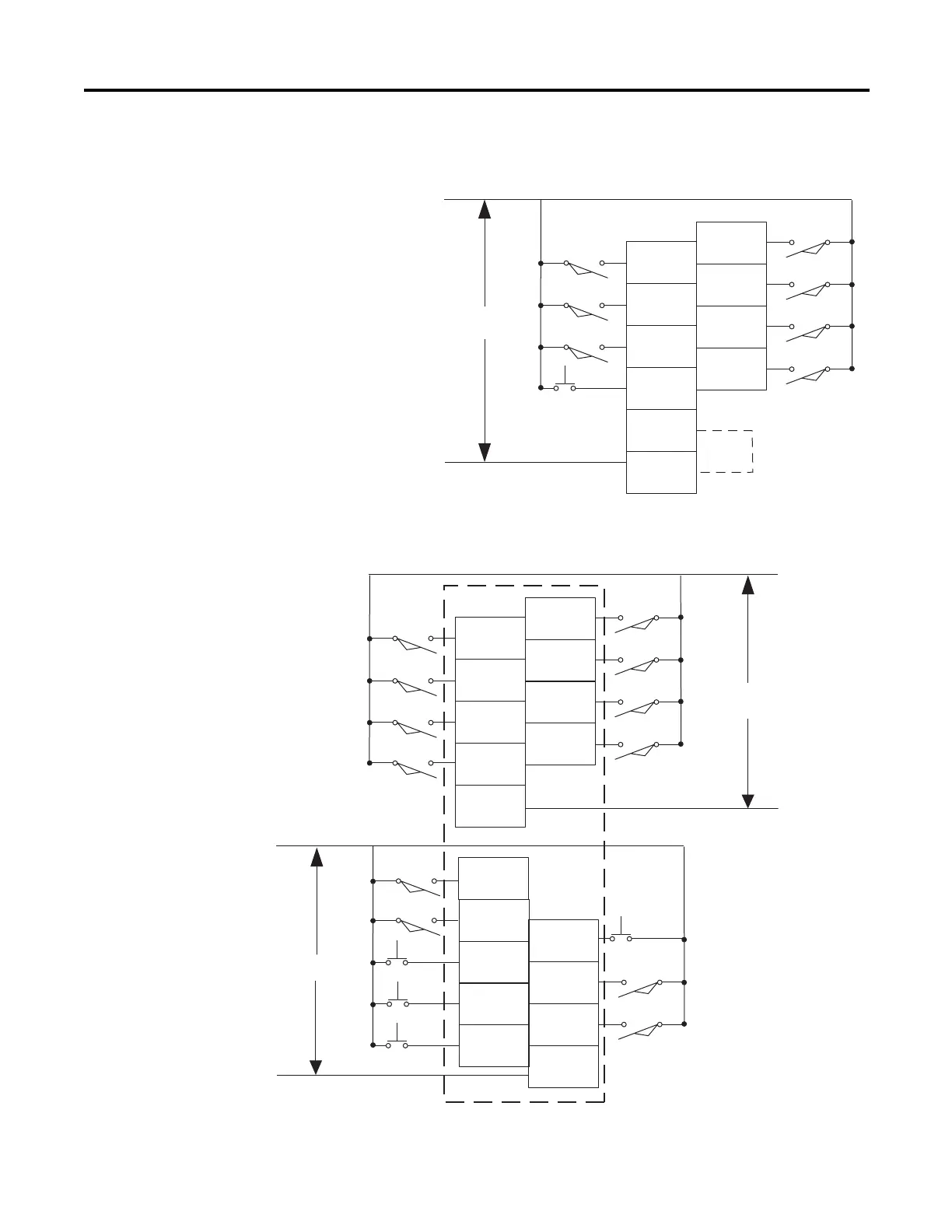

Figure 16 - 1762-IQ8 Wiring Diagram
Figure 17 - 1762-IQ16 Wiring Diagram
IN 7
IN 5
IN 3
IN 1
DC
COM
IN 6
IN 4
IN 2
IN 0
24V DC
DC
COM
Common connected
internally.
-DC (sinking)
+DC (sourcing)
+DC (sinking)
-DC (sourcing)
44571
IN 7
IN 5
IN 3
IN 1
IN 6
IN 4
IN 2
IN 0
24V DC
IN 15
IN 13
IN 11
IN 9
DC
COM 0
IN 14
IN 12
IN 10
IN 8
24V DC
DC
COM 1
+DC (Sinking)
-DC (Sourcing)
-DC (Sinking)
+DC (Sourcing)
+DC (Sinking)
-DC (Sourcing)
-DC (Sinking)
+DC (Sourcing)
44572
