Rockwell Automation Publication 1766-UM001I-EN-P - June 2015 45

Wire Your Controller Chapter 3

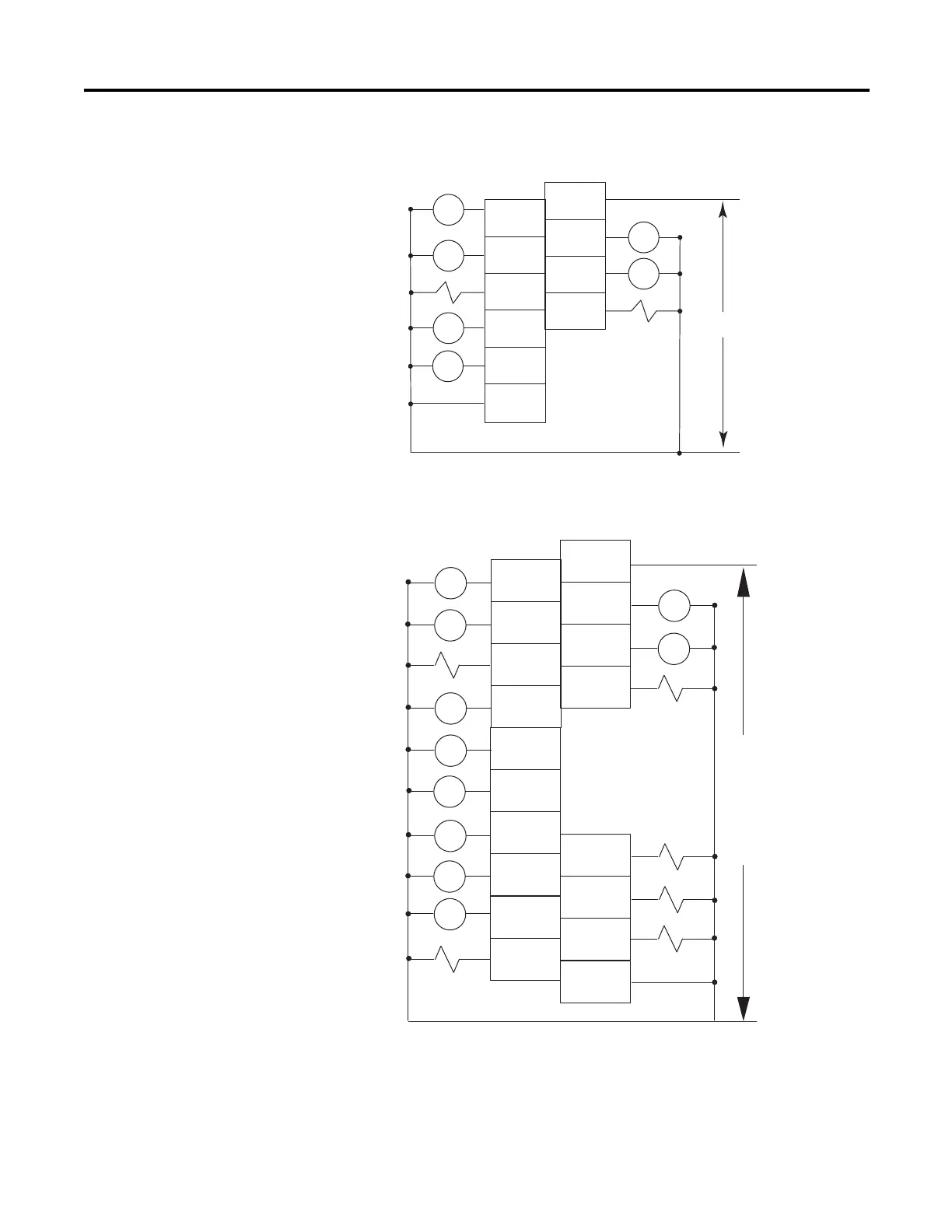

Figure 20 - 1762-OB8 Wiring Diagram

Figure 21 - 1762-OB16 Wiring Diagram

+DC

24V DC (source)

-DC

OUT 6

OUT 4

OUT 2

OUT 0

OUT 7

OUT 5

OUT 3

OUT 1

+VDC

DC COM

44574

OUT 6

OUT 2

OUT 0

OUT 10

OUT 5

OUT 7

OUT 9

OUT 11

OUT 13

OUT 15

OUT 14

OUT 3

OUT 1

VDC+

OUT 8

OUT 12

OUT 4

DC COM

24V DC (source)

+DC

-DC

44575
