Allen-Bradley MicroLogix 1400

To Next Page

To Previous Page

Publication 1766-RM001A-EN-P - October 2008

454 Communications Instructions

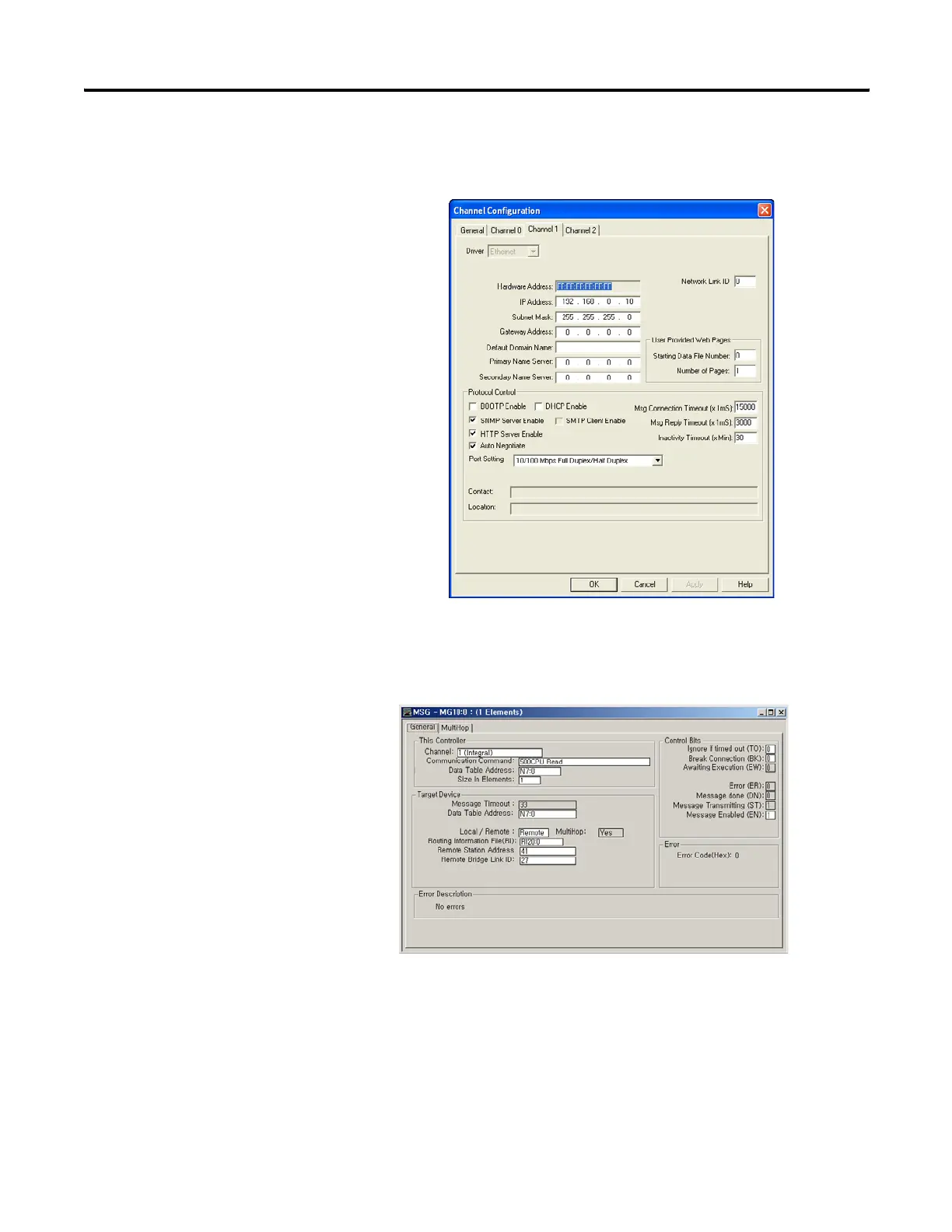

ML1400 Channel1 Configuration

The following is the message setup screen for the MicroLogix 1400

controller.

A MSG route must be configured in the MultiHop tab of the MSG Setup

Screen. Click on the MultiHop tab.
