Publication 1766-RM001A-EN-P - October 2008
498 Socket Interface Using CIP Generic Messaging
MSG Configuration Parameters

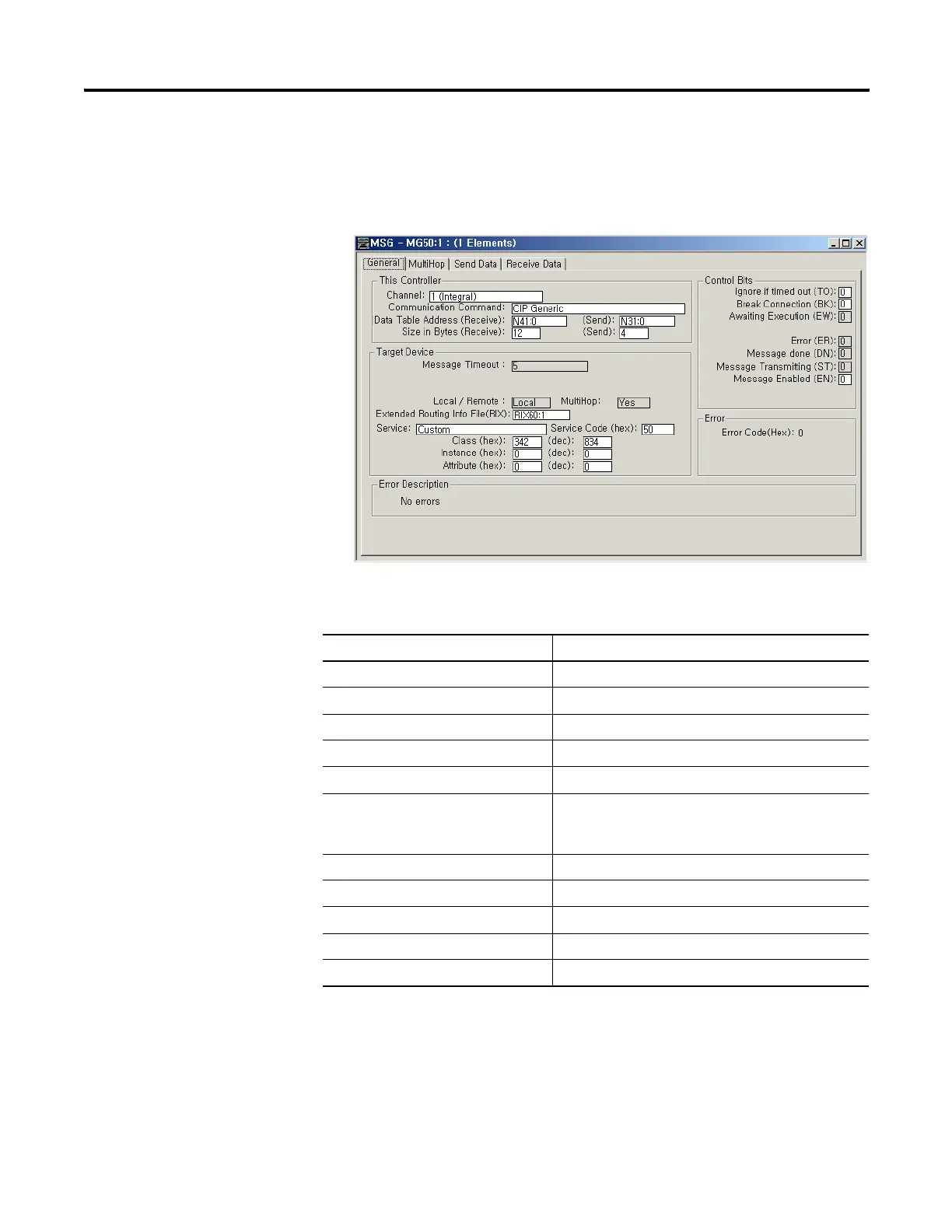

To call this service, click "Setup Screen" in the MSG instruction and enter
the values displayed below.
Configure the MSG with these values:
CIP Generic Msg Parameter Description
Channel 1 (Integral)
Communication Command CIP Generic
Service Custom
Service Code 50 (hexadecimal)
Class 342 (hexadecimal)
Instance 0 Use a relay ladder instruction to move the returned
instance number from a CreateSocket service into the
MGx:y.TFN element of a MSG instruction.
Attribute 0
Data Table Address (Send) Specify N file
Size in Bytes (Send) 4 bytes
Data Table Address (Receive) Specify N file.
Size in Bytes (Receive) 12 bytes
