Allen-Bradley MicroLogix 1400 User Manual

Publication 1766-RM001A-EN-P - October 2008
Recipe and Data Logging 513
Recipe File and Programming Example
Configuring the RCP file

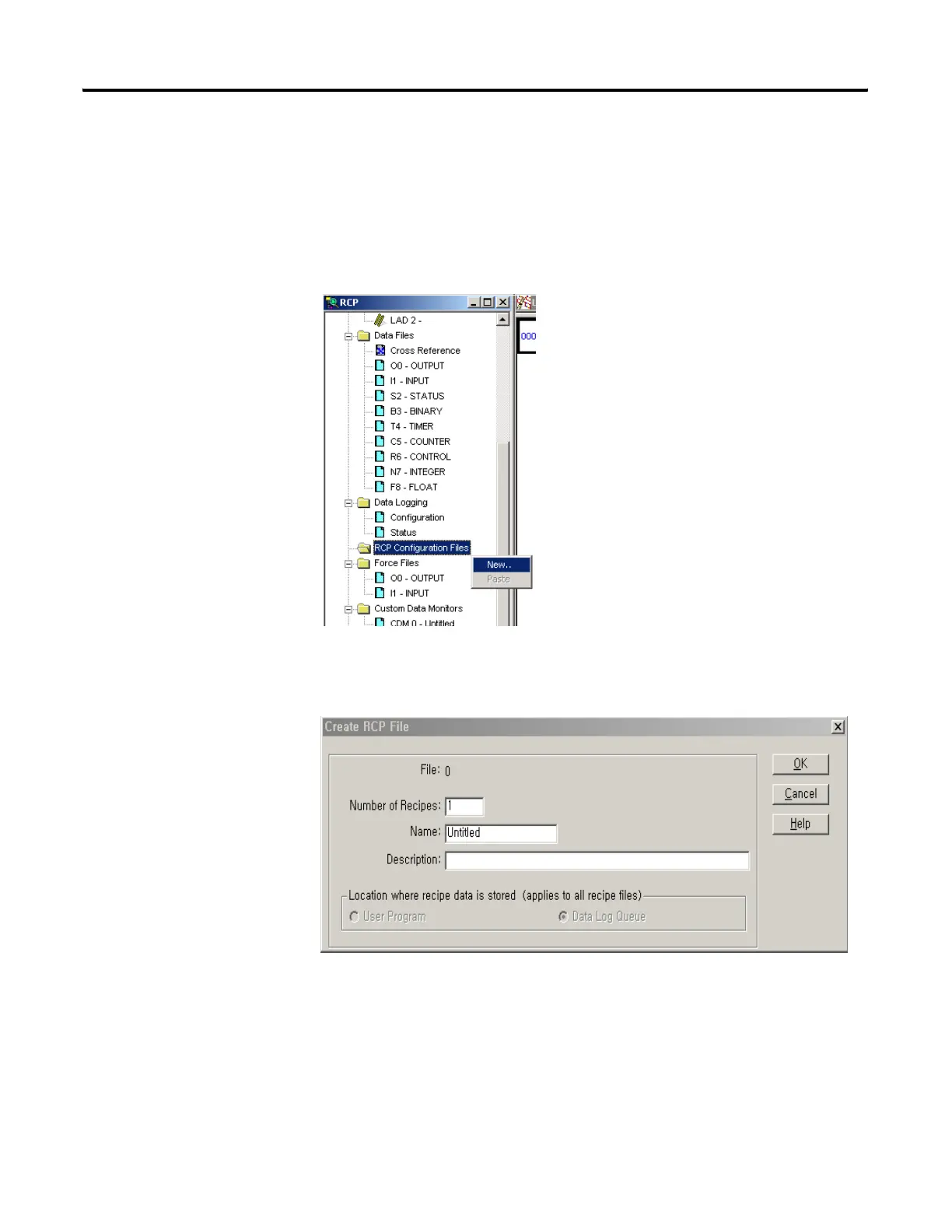

1. Using RSLogix 500/RSLogix Micro, locate and select RCP
Configuration Files. Right-click and select New.
2. Create a RCP File.
• File - This is the number identifying the RCP file. It is the Recipe File
Number used in the RCP instruction in your ladder program and
identifies the recipe database.
• Number of Recipes - This is the number of recipes contained in the
RCP file. This can never be more than 256. This is the Recipe
Number used in the RCP instruction in your ladder program.
• Name - This is a descriptive name for the RCP file. Do not exceed 20
characters.
