Allen-Bradley MicroLogix 1400 User Manual

Publication 1766-RM001A-EN-P - October 2008
514 Recipe and Data Logging
• Description - This is the file description (optional).
• Location where recipe data is stored (applies to all recipe files) -
This allows you to designate a memory location for your RCP files.
• User Program - Cannot be used.
• Data Log Queue - Recipe data is stored in the data log memory
space (max. 64K bytes).

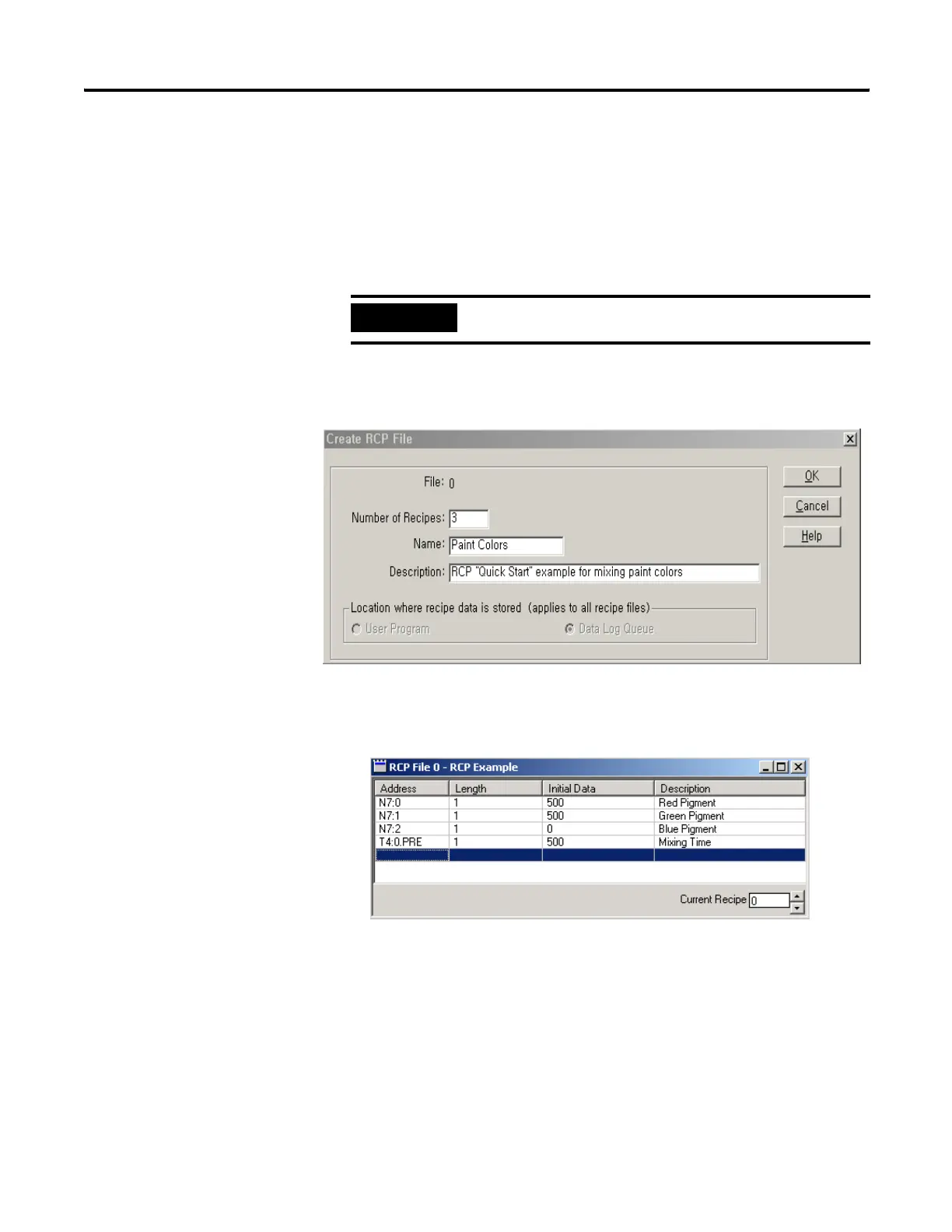

3. Enter the RCP file parameters as shown below. When finished click
on OK.
4. A new window will appear. In this window, enter the values as
shown below.
5. Change the Current Recipe from 0 to 1. Notice the addresses were
duplicated, but the data was not.
6. Enter the data for Recipe 1 as shown below.
7. Change from Recipe 1 to Recipe 2 and enter the following data.
IMPORTANT
All the recipe data is stored into the controller’s memory module
(1766-MM1).
