Knowledgebase Quick Starts 651
FYI - Every time Configuration above is double-clicked a new
queue is added. To delete queues, simply select the queue with the
mouse and press the <delete> key on the keyboard.

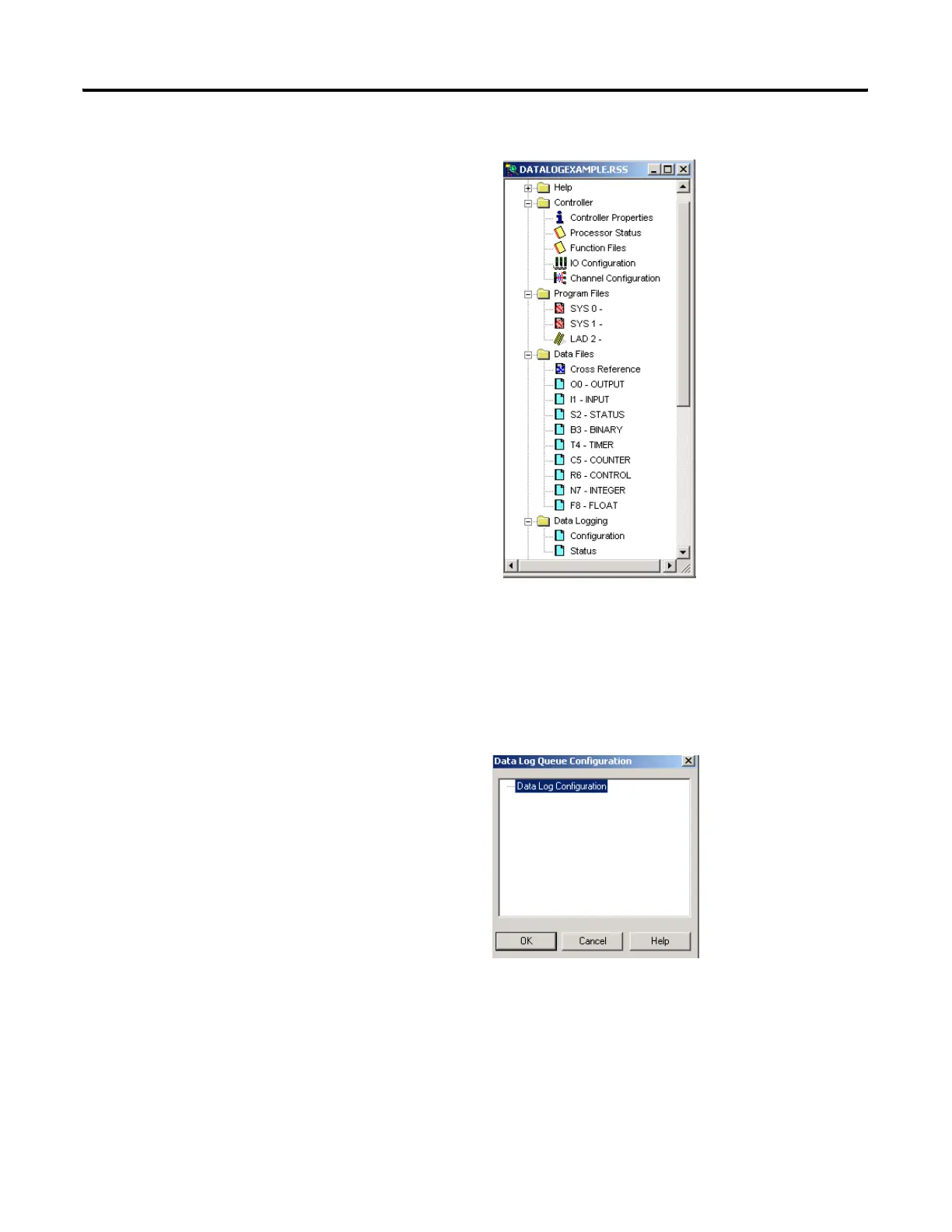

4. Double-Click on Data Log configuration to open the
Configuration window.
5. Complete the Data Log Queue as shown below. The Number of
records and Addresses selected were arbitrary for this example.
efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive

Allen-Bradley MicroLogix 1400 Specifications

General

Processor	32-bit
Expansion Modules	Up to 7 expansion I/O modules
Power Supply	24V DC or 120/240V AC
Programming Software	RSLogix 500
Communication Ports	Ethernet, RS-232/RS-485 combo port
Controller Type	Programmable Logic Controller (PLC)
Series	MicroLogix
Digital Outputs	12
Analog Inputs	6 (embedded)
Analog Outputs	2 (embedded)
High-Speed Counter	6 high-speed counters
Pulse Output	2 (embedded)
Ethernet Port	Yes
