Allen-Bradley MicroLogix 1400 User Manual

Publication 1766-RM001A-EN-P - October 2008
Knowledgebase Quick Starts 655
FYI - Remember that once the data records have been read from the
MicroLogix the queue is automatically cleared.

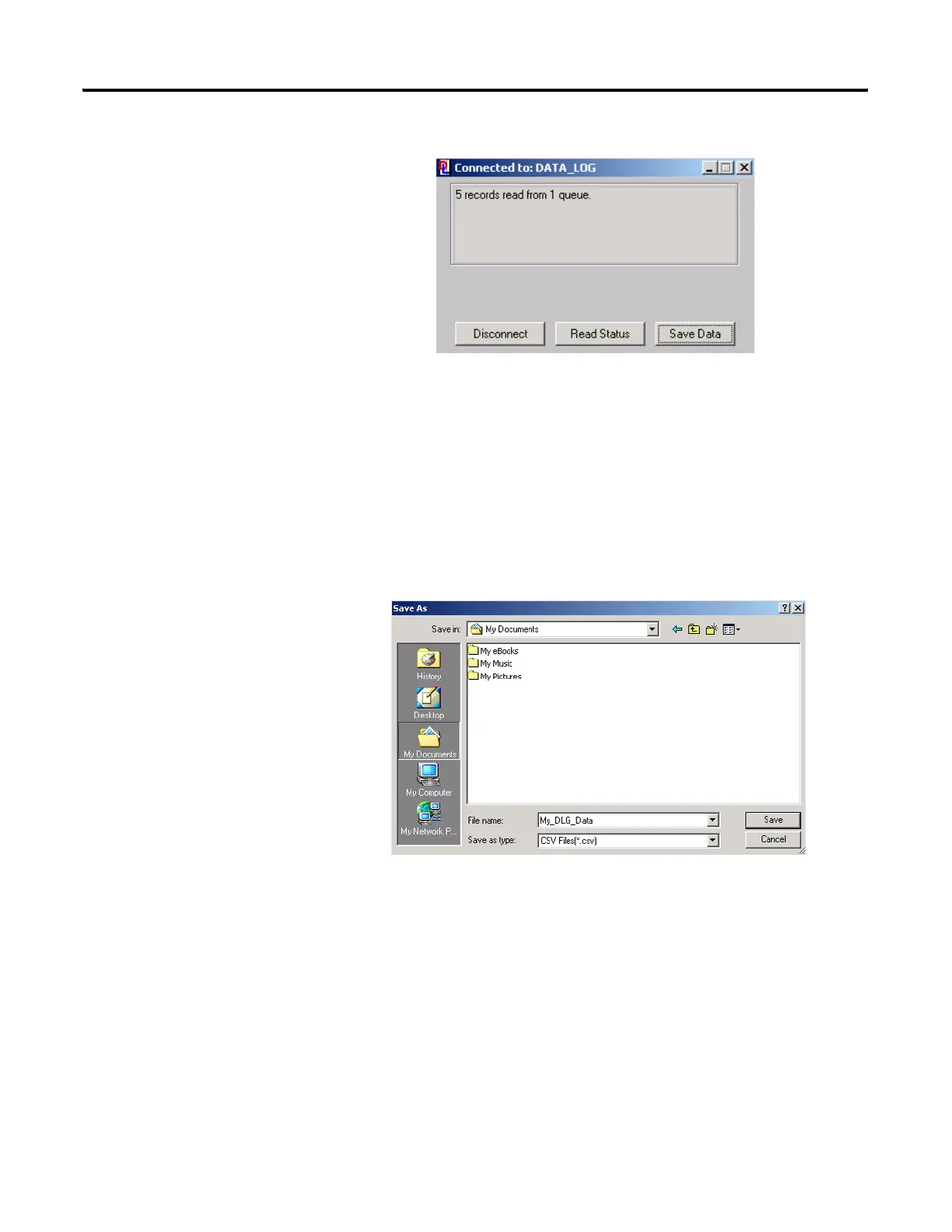

7. Click Save Data.
8. Enter a file name. In our example “My_DLG_Data” was used.
Make note of the filename about to be created and the directory it is being
saved to for later reference.
9. Using Microsoft Excel open the data file that was created.
FYI - If you are unable to locate your file in Excel, remember “Files
of type” must be changed to “Text Files” or “All files (*.*)” in order to
locate your saved file.
(The headings for each column are not stored in the data file these were
added for readability.)
efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive

Allen-Bradley MicroLogix 1400 Specifications

General

Processor	32-bit
Expansion Modules	Up to 7 expansion I/O modules
Power Supply	24V DC or 120/240V AC
Programming Software	RSLogix 500
Communication Ports	Ethernet, RS-232/RS-485 combo port
Controller Type	Programmable Logic Controller (PLC)
Series	MicroLogix
Digital Outputs	12
Analog Inputs	6 (embedded)
Analog Outputs	2 (embedded)
High-Speed Counter	6 high-speed counters
Pulse Output	2 (embedded)
Ethernet Port	Yes
