Allen-Bradley MicroLogix 1400 User Manual

Publication 1766-RM001A-EN-P - October 2008
Function Files 77

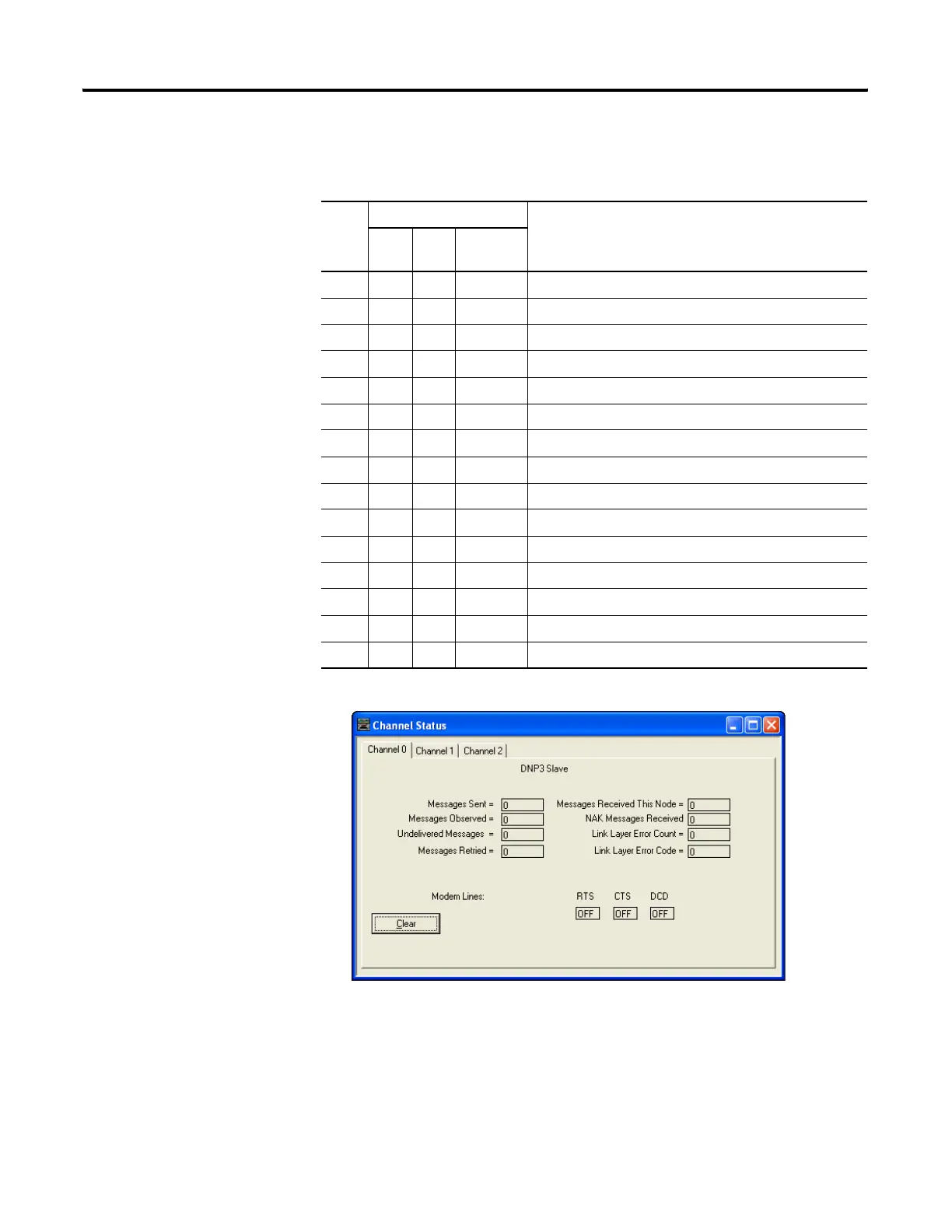

DNP3 Slave Diagnostic Counters Block (Presentation Layer)
Word
Access
Description
RLL
Exe
c
Non-Exe
c
52 RO RO RO PL Diagnostic Counters Category Identifier Code (6))
53 RO RO RO Length: 32 (16 words to follow including format code)
54 RO RO RO Category Block Format Code - 2
55 RO RO RO Presentation Layer Error Code
56 RO RO RO Presentation Layer Error Count
57 RO RO RO Function Code that caused the last error
58 RO RO RO Last Transmitted IIN in the response
59 RO RO RO Data File Number of Error Request
60 RO RO RO Element Number of Error Request
61 RO RO RO Received Confirm Function Code Counter
62 RO RO RO Received Read Function Code Counter
63 RO RO RO Received Write Function Code Counter
64 RO RO RO Received Etc Function Code Counter
65 RO RO RO Transmitted Solicited Response Function Code Counter
66 RO RO RO Transmitted Unsolicited Response Function Code Counter
