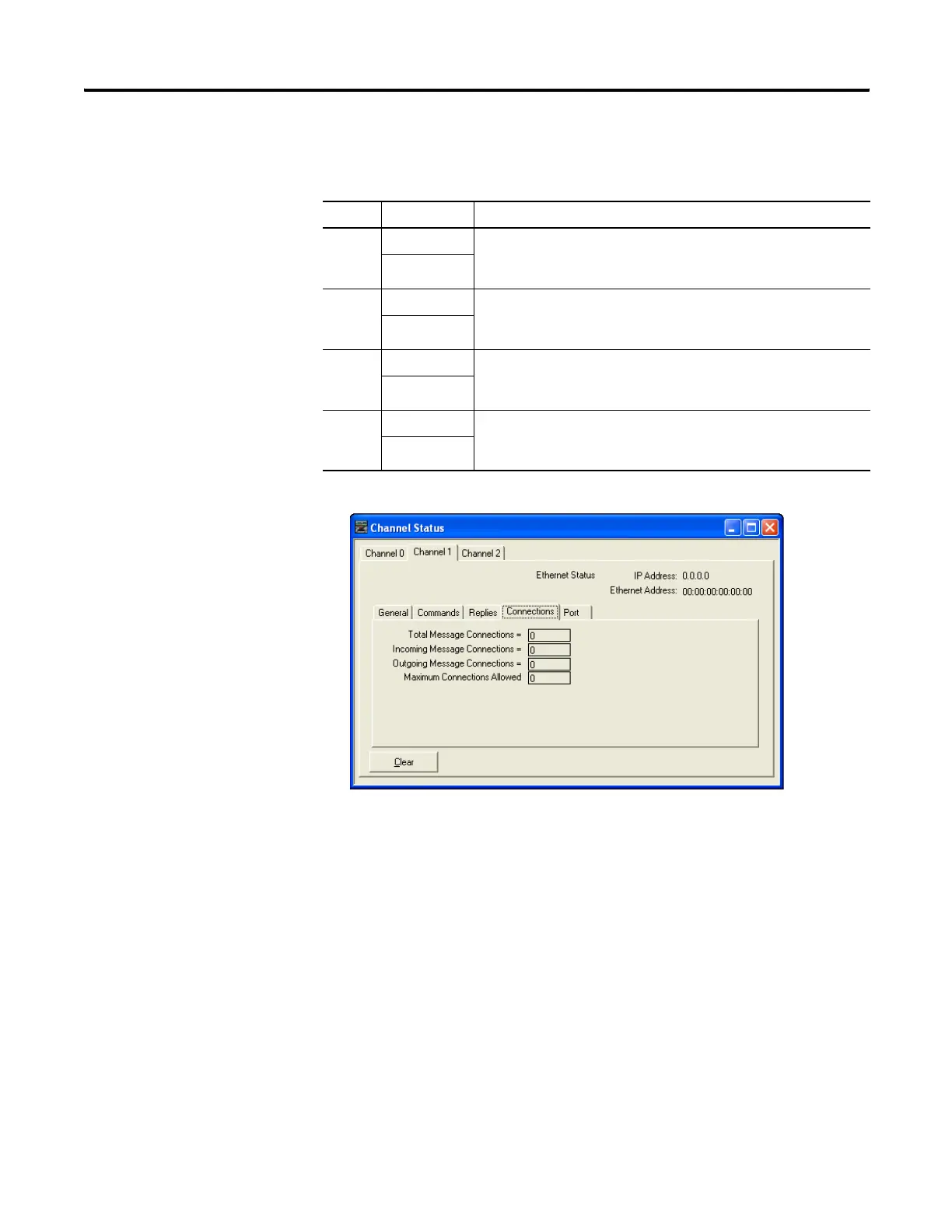

88 Function Files
The last Port tab will show the current states of Ethernet communications
port according to word 5 of Ethernet Communications Status File.
Ethernet Diagnostic Counters Block (continued)
Word Bit Description
169
170
Low word Total Message Connections
High word
171
172
Low word Incoming Message Connections
High word
173
174
Low word Outgoing Message Connections
High word
175
176
Low word Maximum Connections Allowed
High word
efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive

Allen-Bradley MicroLogix 1400 Specifications

General

Processor	32-bit
Expansion Modules	Up to 7 expansion I/O modules
Power Supply	24V DC or 120/240V AC
Programming Software	RSLogix 500
Communication Ports	Ethernet, RS-232/RS-485 combo port
Controller Type	Programmable Logic Controller (PLC)
Series	MicroLogix
Digital Outputs	12
Analog Inputs	6 (embedded)
Analog Outputs	2 (embedded)
High-Speed Counter	6 high-speed counters
Pulse Output	2 (embedded)
Ethernet Port	Yes
