Allen-Bradley PanelView Plus 7 Migration Guide

Rockwell Automation Publication 2711P-AP006C-EN-P - November 2018 109
Optimize Runtime Performance Chapter 9
Run the Tag Converter Wizard
Now that you have completed the pre-conversion process, you are ready to run
the tag converter wizard. The executable file is named TCW.exe.
During the conversion, most of the tags are converted to direct reference tags.
You will have to manually set scale and offset values for tags after the
conversion.

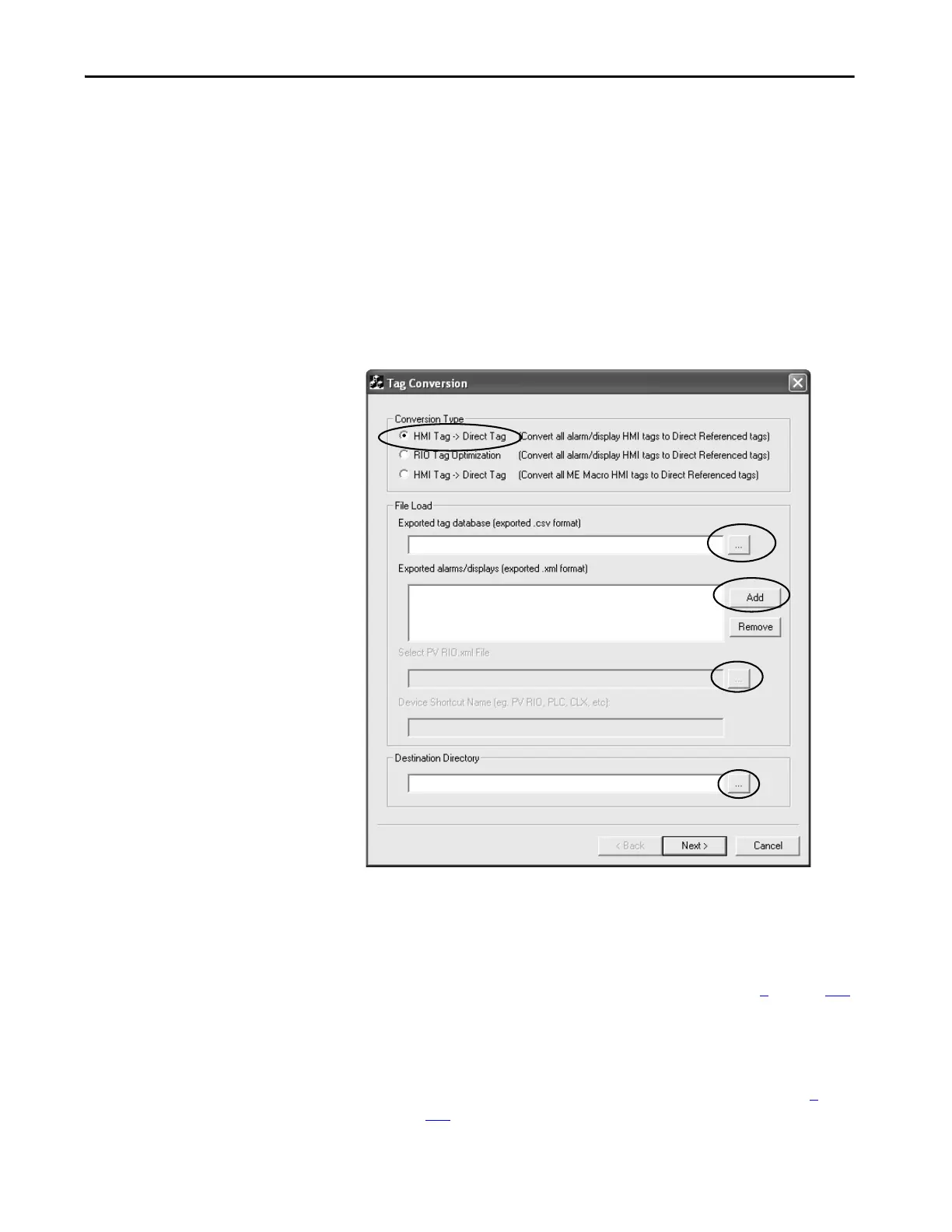

1. Double-click the TCW.exe utility.
2. Select the HMI Tag ->Direct Tag conversion type.
3. Click the ... button next to the Exported Tag Database field and load the
exported tag database.
The file is located in the directory that is specified in step
6 on page 101.
4. Click the Add button next to Exported alarms/displays.
5. Load the exported alarms and display xml files.
The alarms file is located in the folder that is specified under step
4 on
page 108
.
TIP The original HMI tag database is not altered.

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
