Allen-Bradley PanelView Plus 7 Migration Guide

88 Rockwell Automation Publication 2711P-AP006C-EN-P - November 2018
Chapter 8 Create the Runtime Application

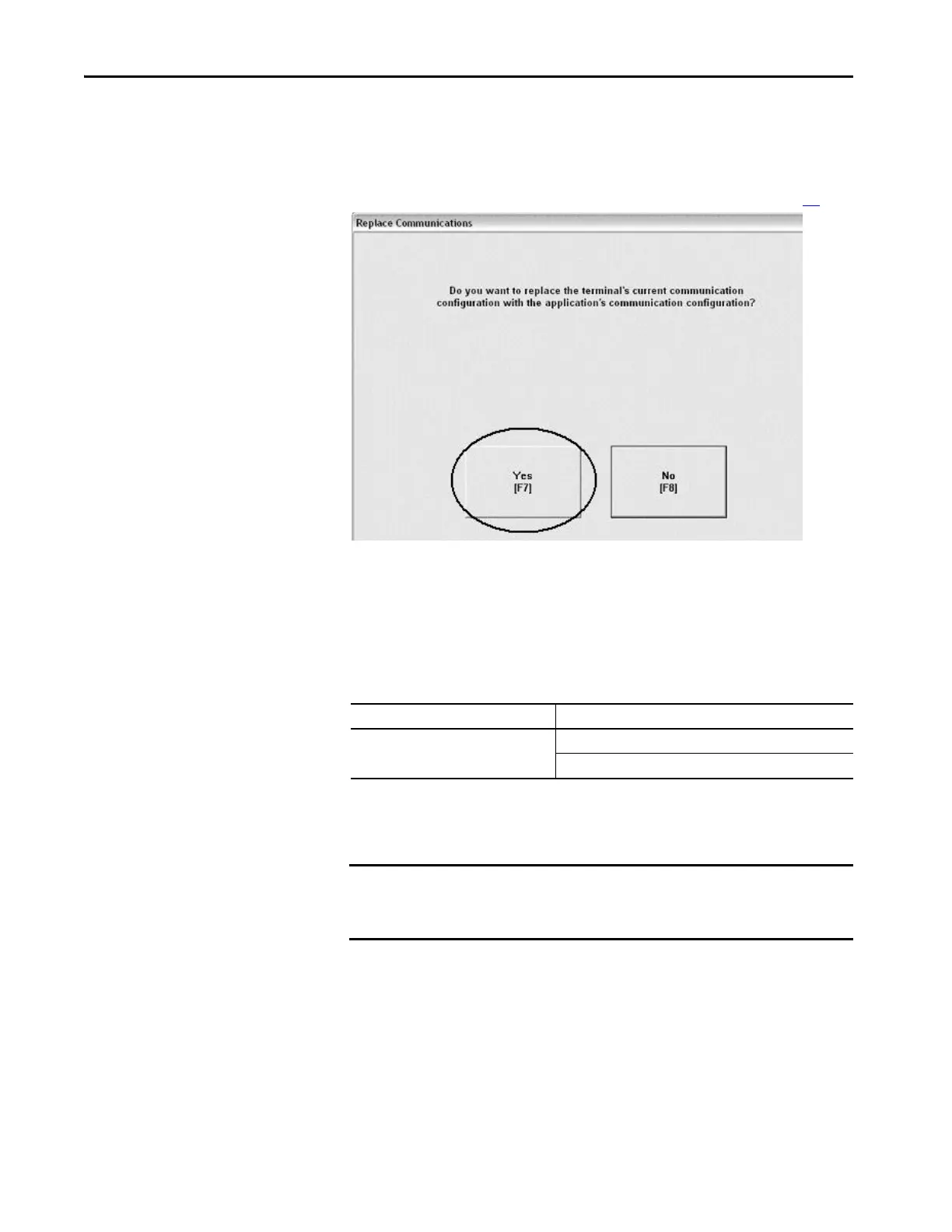

11. Press Yes or the [F7] function key on terminal to replace the
communication settings in the terminal with the settings in your
runtime application.
You are now ready to run the application on the terminal. Skip to page 91
.
Download Application Using External Storage
Follow these steps to load the runtime application on the PanelView Plus 7
terminal by using an external storage card.
1. On your computer, copy the runtime application file to the runtime
folder on a storage card that is supported by the terminal.
2. Turn off power to the terminal.
Table 15 - External Storage Media
This Terminal Platform Supports This External Storage
PanelView Plus 7 Secure Digital (SD) card, cat. no. 1784-SDx
USB flash drive on USB host ports
IMPORTANT The root of the CompactFlash card must have the path
‘RockwellSoftware\RSViewME\Runtime’ or the application file is not
recognized at runtime.

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
