Appendix A Advanced Object Editing
2. Select a graphic object on the display.

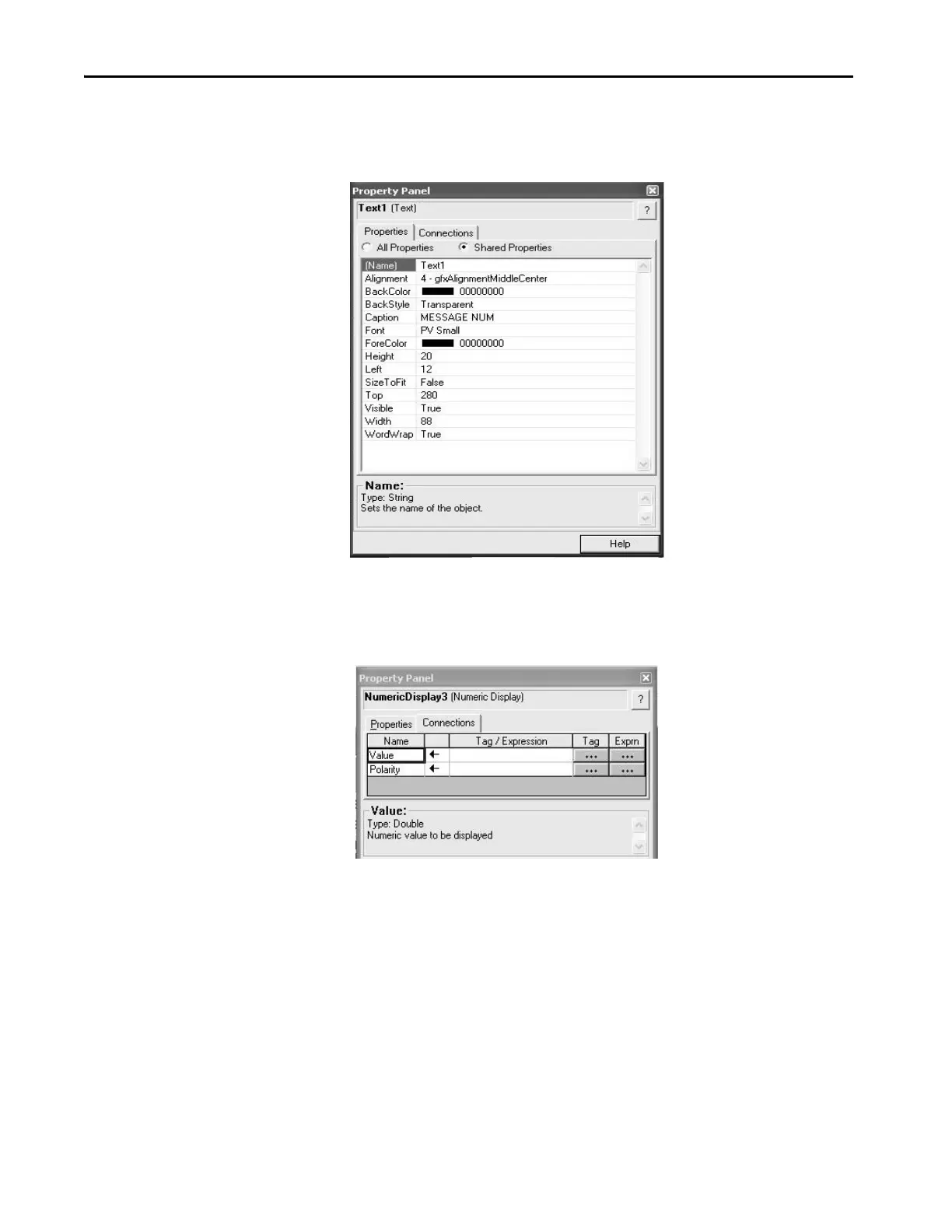

This example shows a text object selected. The property panel shows all
properties that you can edit for the selected object.
3. To view and edit the tag connection properties for the selected object,
select the Connections tab.
This example shows the Value and Polarity connections for a numeric
display object.
Edit Multiple Objects
One of the most useful features of the property panel is that you can edit
multiple graphic objects with common properties simultaneously, rather than
editing each object, one by one.
Chapter 6, Review Unsupported Features, showed you how to create
replacement multistate indicator, local message and numeric data display list
objects in FactoryTalk View ME software. Creating this replacement graphic
objects also required you to update properties to match the original
PanelBuilder®32 objects. These properties included captions, foreground/
background colors, text size, number of states, and more.

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
