Allen-Bradley PanelView Plus 7 Migration Guide

124 Rockwell Automation Publication 2711P-AP006C-EN-P - November 2018
Appendix A Advanced Object Editing
• Double-click the object in object explorer to open the properties dialog
box and make edits to a single object

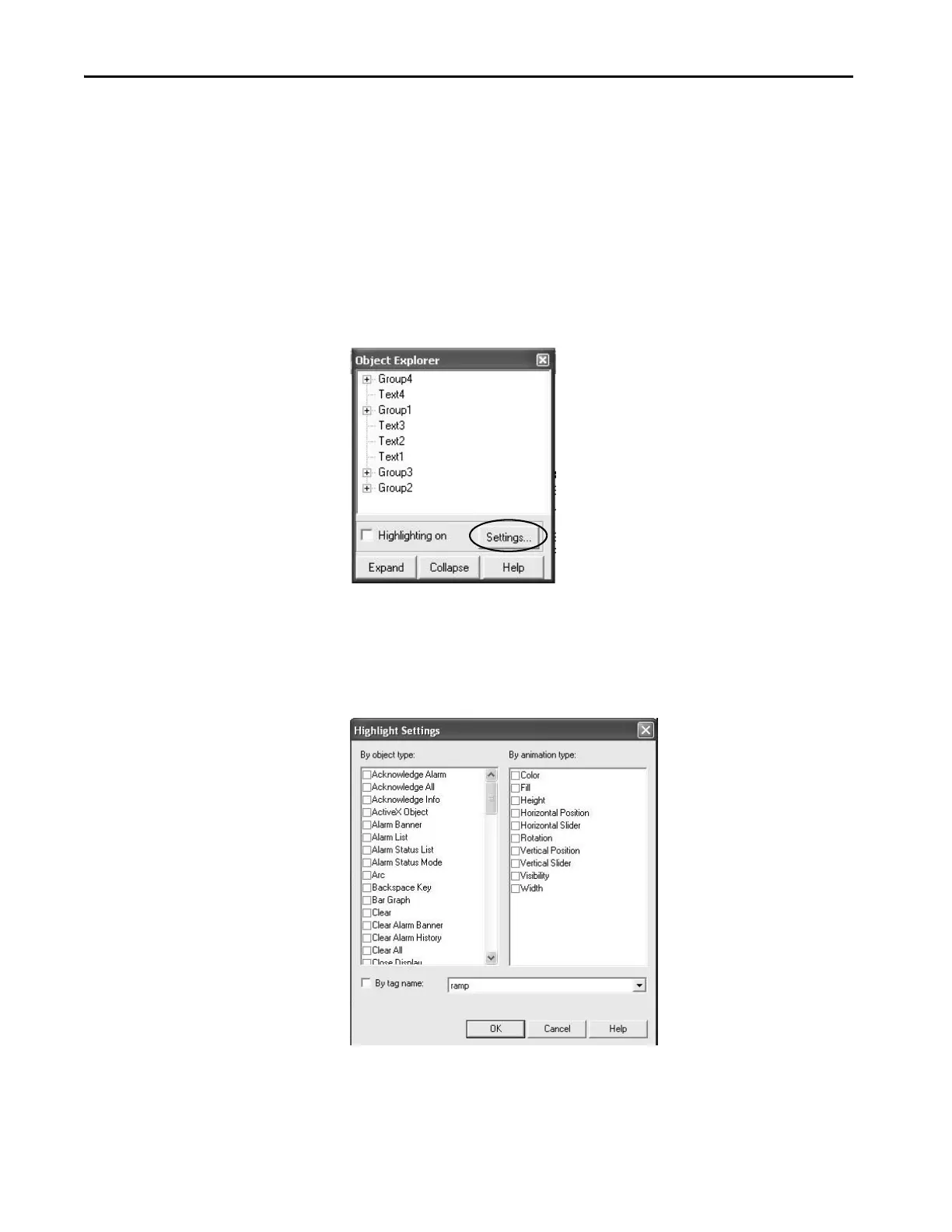

Follow these steps to open object explorer.
1. With a graphic display open, choose View>Object Explorer.
2. Expand or collapse groups of objects by clicking the Expand or Collapse
buttons.
The objects that appear in the list differ for each display.
3. To search for objects, click the Settings button.
The Highlight Settings dialog box allows you to search for objects by
Object Type, Animation Type, or Tag Name.
When selecting by tag name, the list shows all tags and expressions that
are referenced by objects in the display, except tags with embedded
variables.
4. Select Local Message Objects to search for all local message objects.

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
