Advanced Object Editing Appendix A

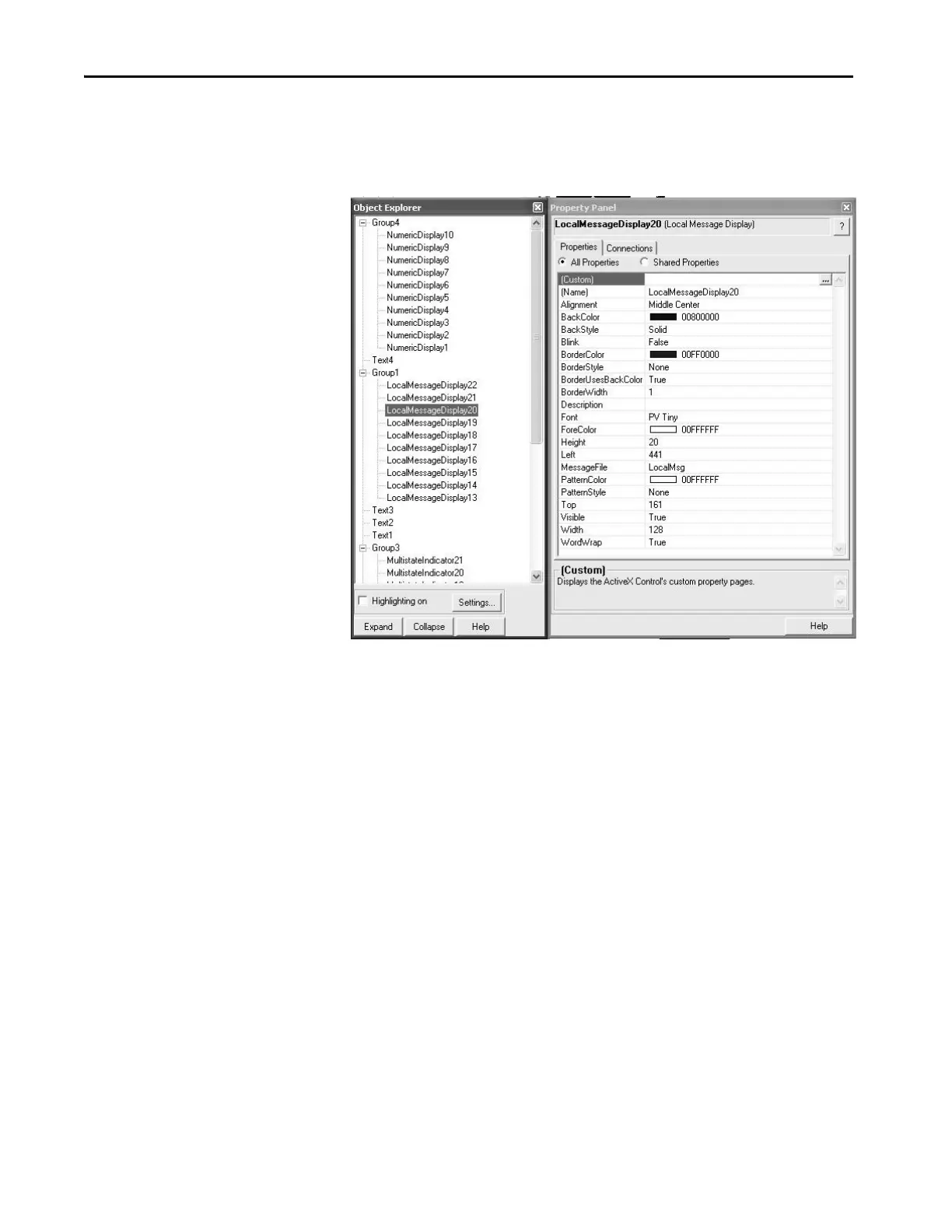

If the property panel and object explorer are both open, click any object

in object explorer. The property panel updates the display with the edit

properties for the selected objects. You can make any updates from the

property panel.
