Allen-Bradley PanelView Plus 7 Migration Guide

Rockwell Automation Publication 2711P-AP006C-EN-P - November 2018 51
Import Your Application Chapter 3

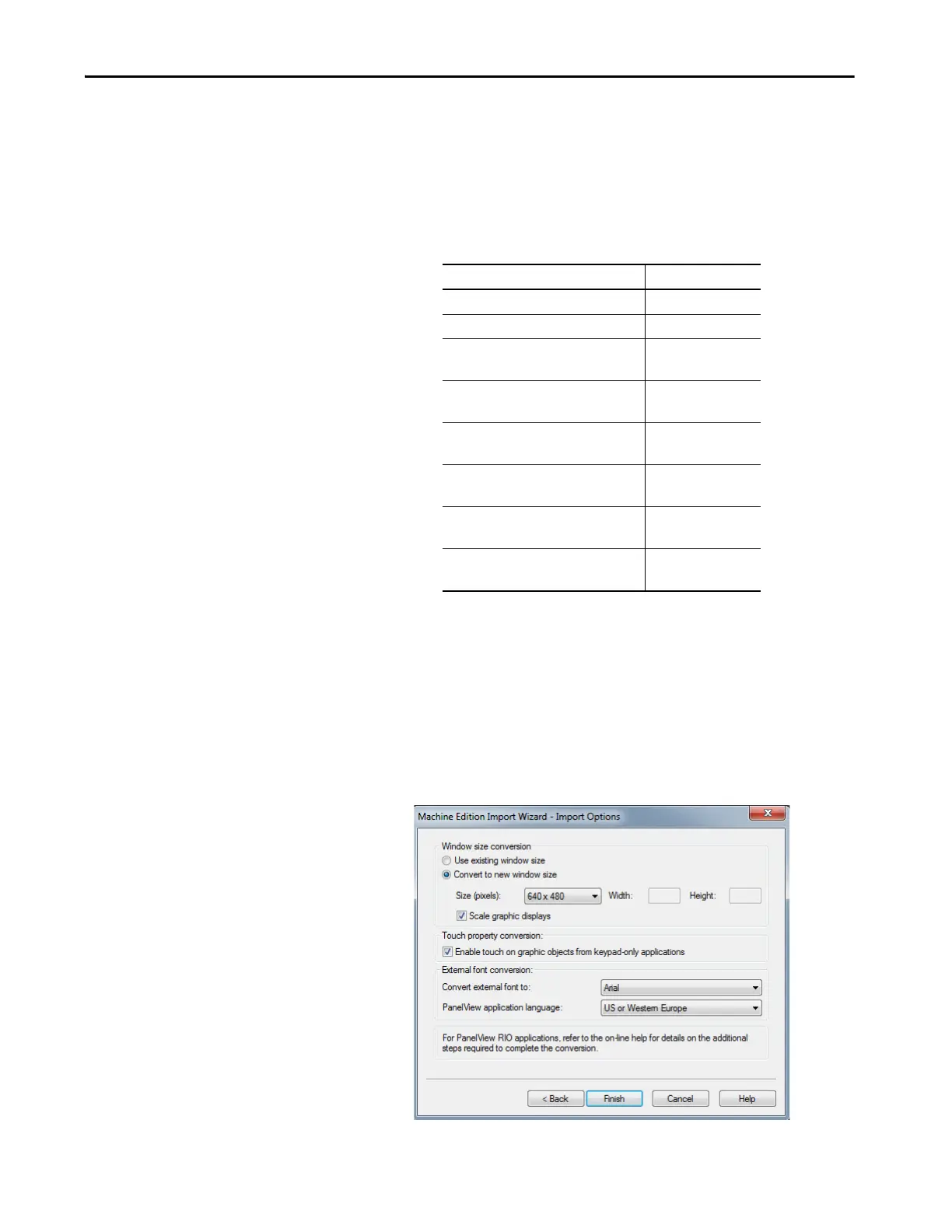

10. Configure the import options that are based on your replacement
terminal.
Click Help at any time for clarification of each option.
a. Check the Convert to new window size checkbox.
b. Select the size (in pixels) of your PanelView Plus 7 terminal display as
shown in the chart.
c. Check Scale graphic displays.
d. When checked, this setting rescales all displays.
e. If your original PanelView Standard terminal had a touch screen, or
both a touch screen and keypad, check the box under Touch property
conversion.
f. Click the Help button to read the differences between the caption
alignment options, then select an option for your new application.
g. Click Finish.
Panelview Plus 7 Terminal Resolution (pixels)
PanelView Plus 7 Standard 4 in. (wide) 480 x 272
PanelView Plus 7 Standard 6 in. 640 x 480
PanelView Plus 7 Standard 7 in.
PanelView Plus 7 Performance 7 in.
640 x 480
PanelView Plus 7 Standard 9 in.
PanelView Plus 7 Performance 9 in. (wide)
800 x 480
PanelView Plus 7 Standard 10 in.
PanelView Plus 7 Performance 10 in.
800 x 600
PanelView Plus 7 Standard 12 in.
PanelView Plus 7 Performance 12 in. (wide)
1280 x 800
PanelView Plus 7 Standard 15 in.
PanelView Plus 7 Performance 15 in.
1024 x 768
PanelView Plus 7 Standard 19 in.
PanelView Plus 7 Performance 19 in.
1280 x 1024

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
