Allen-Bradley PanelView Plus 7 Migration Guide

Rockwell Automation Publication 2711P-AP006C-EN-P - November 2018 77
Qualify the Runtime Application Chapter 7

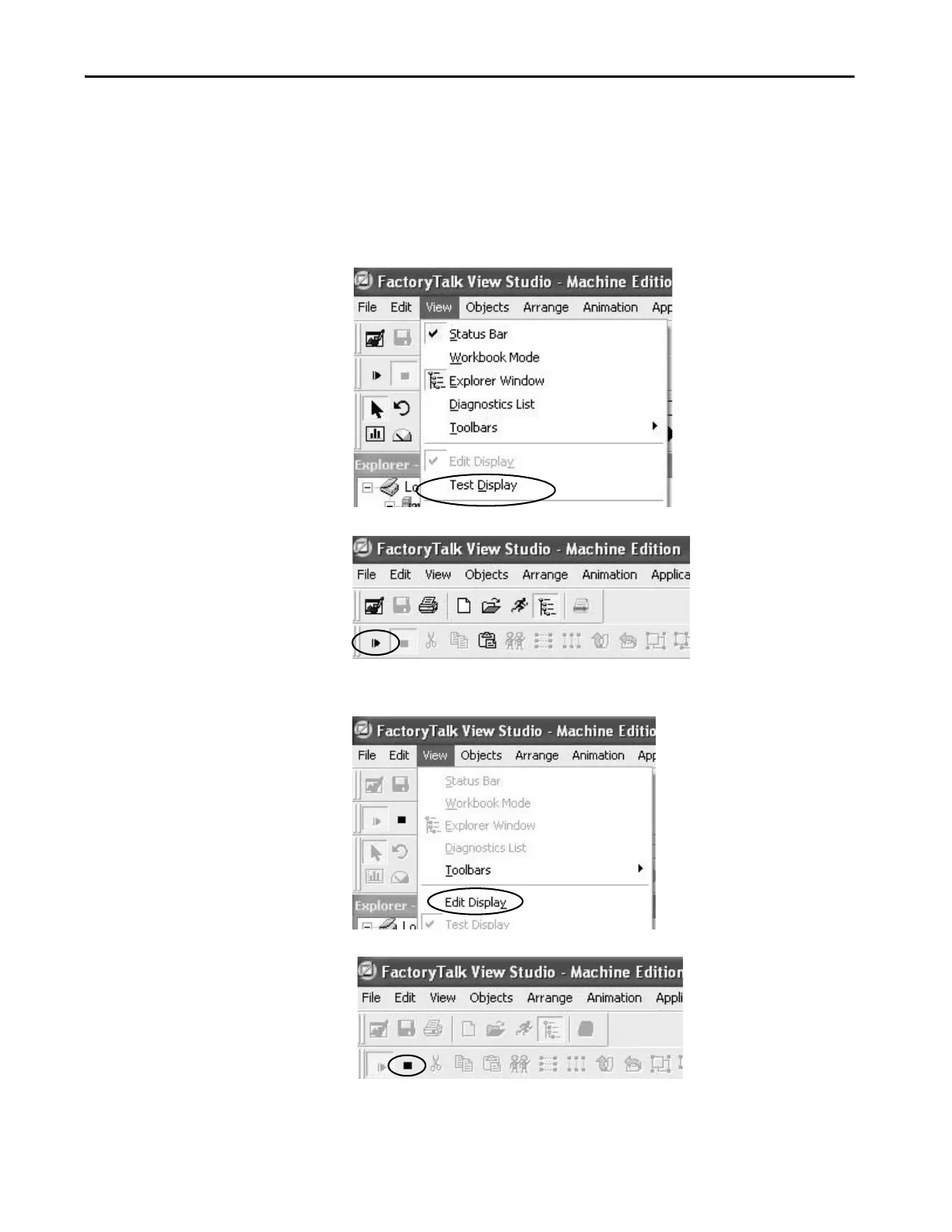

Follow these steps to activate Test Display mode for a display and then return
to Edit mode. Running Test Display mode and correcting logged errors in Edit
mode is an iterative process.
1. Open the display that you want to test.
2. Access Test Display mode in one of two ways.
• Choose Test Display from the View menu.
• Click the Test Display button on the toolbar.
3. Return to Edit mode in one of two ways.
• Choose Edit Display from the View menu.
• Click the Edit Display button on the toolbar.

Allen-Bradley PanelView Plus 7 Specifications

General

Operating System	Windows CE 6.0
Memory	512 MB RAM
Mounting	Panel mount
Display Type	Color TFT LCD
Processor	ARM Cortex-A8
Storage	512 MB Flash
Communication Ports	Ethernet, USB, Serial
Input Voltage	24V DC
Operating Temperature	0°C to 50°C (32°F to 122°F)
Environmental Rating	NEMA 4X
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% non-condensing
Certifications	CE, UL, cUL
Display Sizes	4.3", 7", 10", 15", 19"
Touchscreen	Resistive or Projected Capacitive (depending on model)
