Amazone ZA-X - Page 81

Adjustments
ZA
-X BAG0235.4 01.23
81
Example:
Desired working width: 40 ft [12 m ]
Desired spread rate: 232 lb/ac [260 kg/ha]
Working speed: 5 mph [8 km/h]

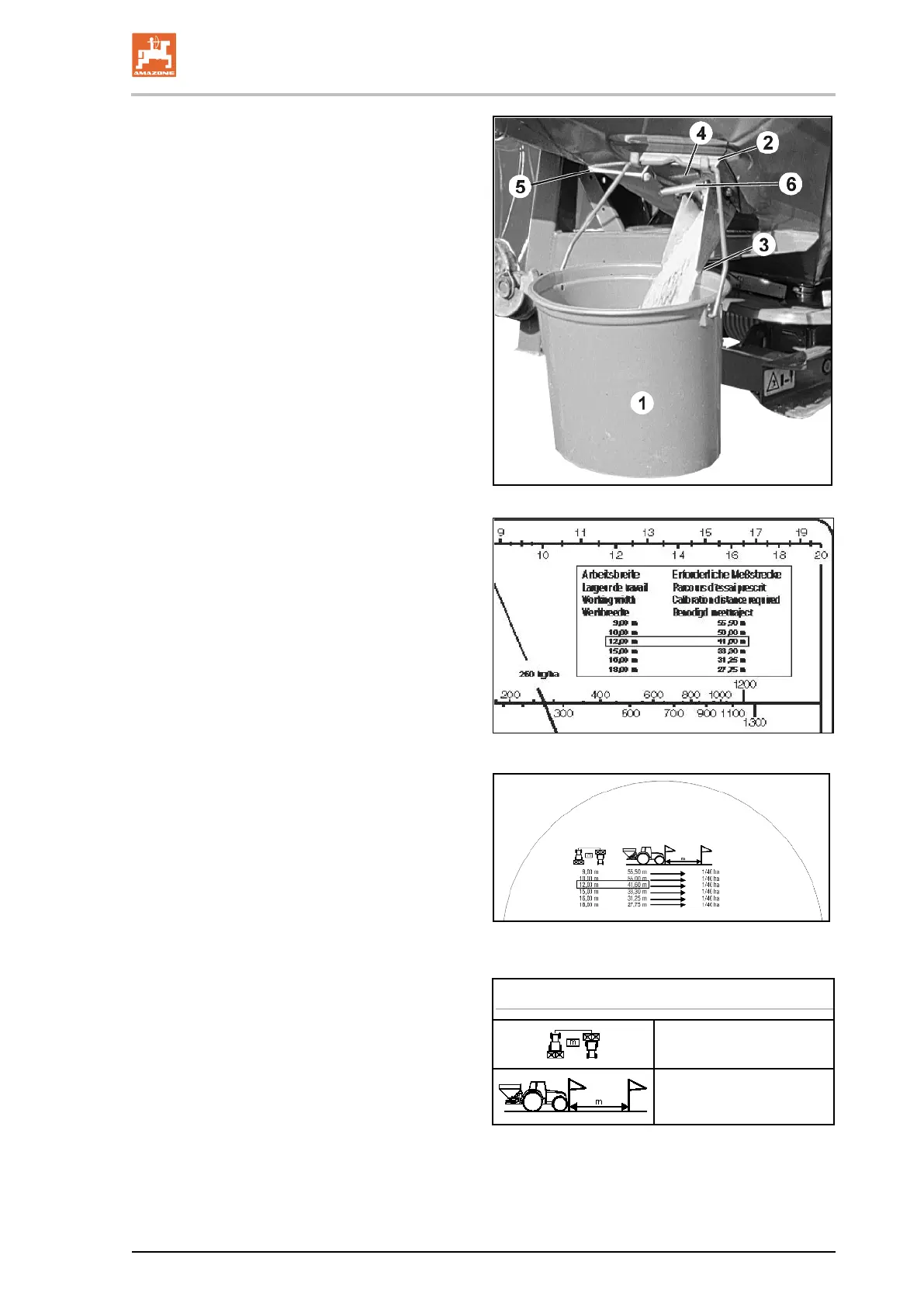

1. Hook the collection bucket (Fig. 64/1) into
the holder using the bracket (Fig. 64/2).
Latch the collection bucket into the clamp-
ing device (Fig. 64/3).
2. Open the lateral slider (Fig. 64/4) of the
outlet chute completely for approx. 5 sec.
by pulling the rope (Fig. 64
/5). This ensures
uniform flow of fertiliser. Afterwards, pour
the caught fertiliser back into the hopper of
the spreader.
3. You can obtain the required calibration dis-
tance 136 ft (41.6 m) for the desired work-
ing width 40 ft (12 m) from the chart (Fig.
65) of the nomogram or the rear side of the
rear side of the calculator disc rule.
Fig.
64
Fig.
65
Fig.
66
Symbols on the calculator disc rule:
Working width ft [m]
Calibration distance ft
[m]
