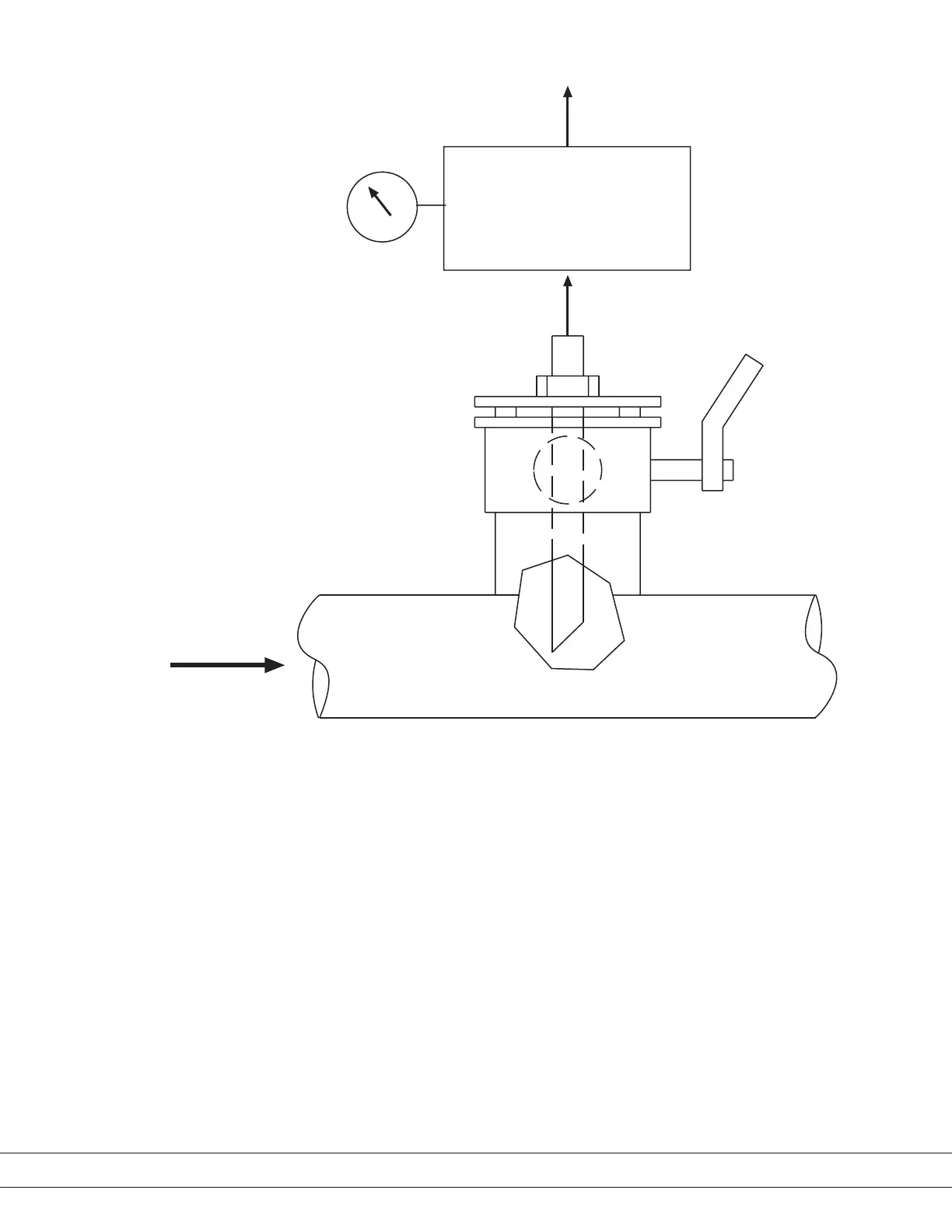

Figure 2-3.
Typical Probe Installation.
Sample Flow
To Analyzer*
Optional Heated or Unheated
Remote
Pressure Regulator
*Depending on application consider
heat tracing the sample line.
Ball Valve
Probe
Gauge
