PN 305200901, Rev YT
First, start with checking the software:
1. The software parameters should be accessed using the ALT-C window.
Working in the 3050 Congurator Software, view the Setup tab and, using
your computer’s keyboard, simultaneously press the “A LT” and “C” keys to
display the Command dialog box.

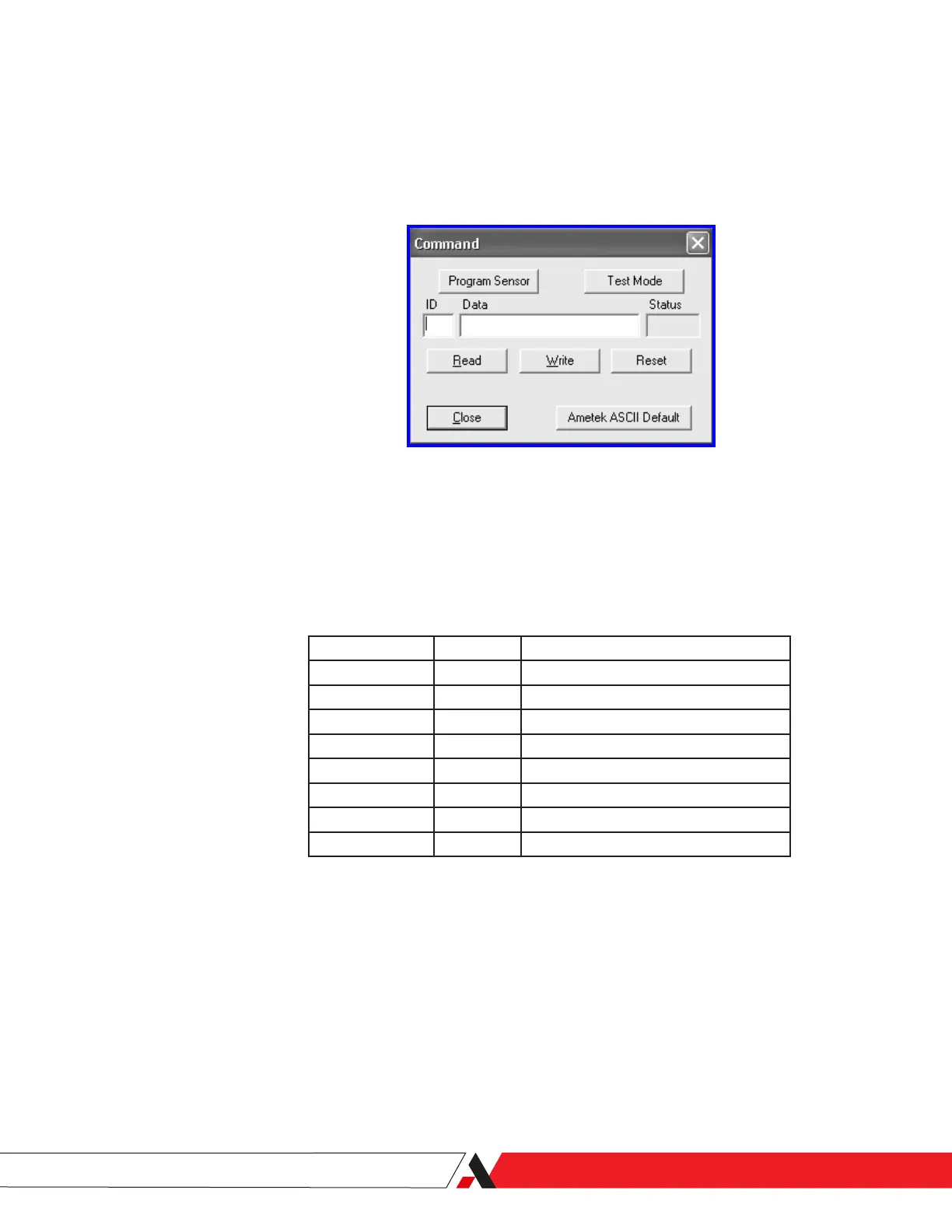

Figure 4-2.
Command dialog box.
2. Type the ID Number (Hex) – see Figure 4-3 – into the ID eld and click the
Read button. The corresponding value will appear in the Data eld. If the
value shown does not match the values listed in Figure 4-3, change the
Data eld accordingly and click the Write button to download the correct
data to memory.
ID Name ID Number Description and default value
ProBandLoop2 1D Oven control parameter default 6.0
TsLoop2 1E Oven control parameter default 2.0
TiLoop2 1F Oven control parameter default 2400
SetPointLoop2 20 Oven control parameter TEMP SET PT 60 °C
ActuatorLoop2 21 Oven control parameter default 0.0
uMaxLoop2 21 Oven control HEATER DUTY CYCLE MAX 1.0
uMinLoop2 23 Oven control HEATER DUTY CYCLE MIN 0.0
CellTempFilter 0C Oven Noise factor for cell temperature 0.2
Example:
ID Number ‘1D’ should have a default value of 6.0. If you click the Read
button and the displayed value does not match 6.0, type in the correct
value in the Data eld and click the Write button. This will write the new
value of 6.0 into the parameter ‘1D’.
Figure 4-3.
Parameter names, numbers,
descriptions.
Maintenance and Troubleshooting | 4-7
