Specications | 2-7
A

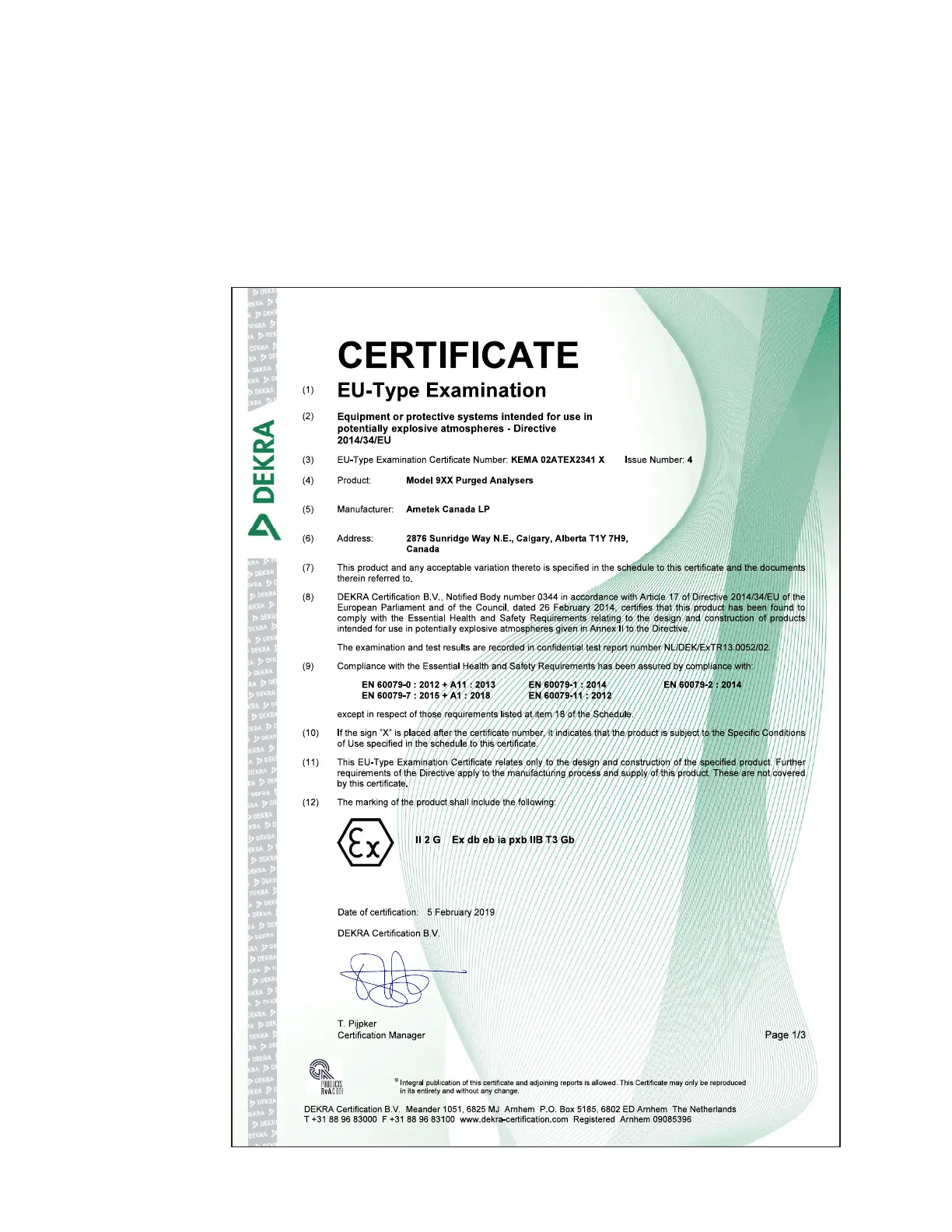

TEX and IECEx
Certicates and
Analyzer Markings
F
or installation sites with potentially explosive atmospheres that require
A
TEX and IECEx certification, AMETEK’s A
TEX and IECEx certificates for
the Model 900/Model 930 Analyzers (and their markings) are included in
the following pages.
Purged
Analyzers
A
TEX and
IECEx Certicates
and
Markings
