User Manual – Rev BE AMETEK Programmable Power
MX Series 102
4.1.4 FUNCTION Keypad
The function keypad provides access to all menus and measurement screens.
The following keys are in the FUNCTION keypad:

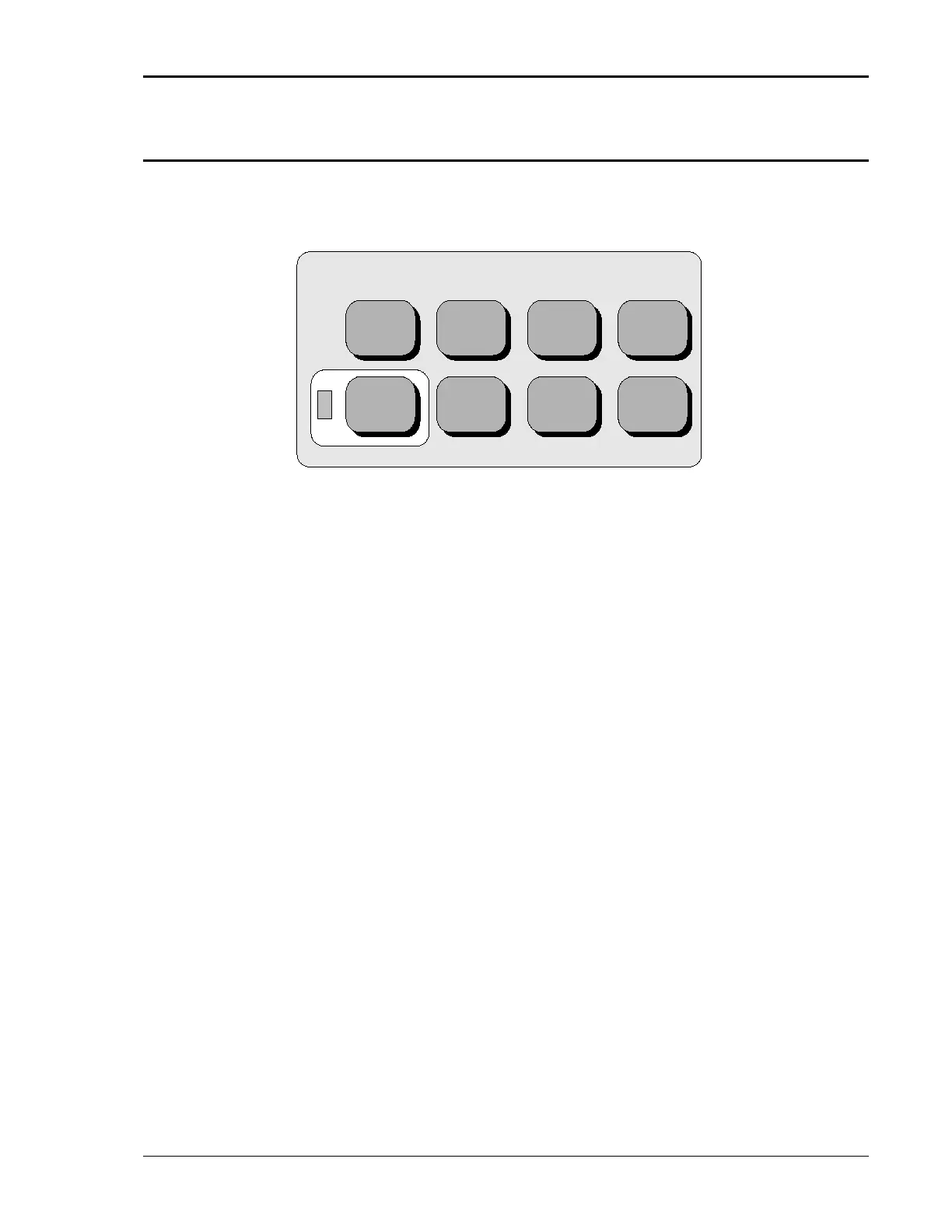

Figure 4-3: FUNCTION Keypad
KEY DESCRIPTION
MENU The top-level menu is accessed by pressing the MENU
key. Three shortcut keys are used to provide direct
access to the PROGRAM, WAVEFORM, and
MEASUREMENT screens as these are among the most
frequently used screens.
Thus, instead of going through the main menu to reach
the PROGRAM, WAVEFORM, and MEASUREMENT
screens, they can be accessed directly by pressing the
PROG, WAVE, and MEAS keys, respectively. A map of
the Main menus is provided on the next few pages.
There are three top level menus in the MX Series.
PROG The PROG key is a shortcut to access the PROGRAM
menu directly.
The PROGRAM menu is one of the most frequently used
menus. Thus, instead of going through the main menu
to reach the PROGRAM menu, it can be accessed
directly by pressing the PROG key.
WAVE The WAVE key is a shortcut to access the
WAVEFORM screen directly.
MENU PROG WAVE
MEAS
OUTPUT
ON/OFF
PHASE
SET
+/-
FUNCTION
