User Manual – Rev BE AMETEK Programmable Power
MX Series 119
HARMONICS/TRACE ANALYSIS Screen [3Pi controller only]
The fourth measurement screen is dedicated to the advanced measurements
available on the MX Series with 3Pi controller only. This screen is not available
on the P controllers. The Harmonics/Trace Analysis measurement screen is a
true menu screen offering several user accessible fields.
These fields are used to select the desired acquisition trigger and display mode.
The actual data is displayed whenever the ENTER key is pressed while the
cursor is on the VIEW or START field. The following fields are available on this
menu:

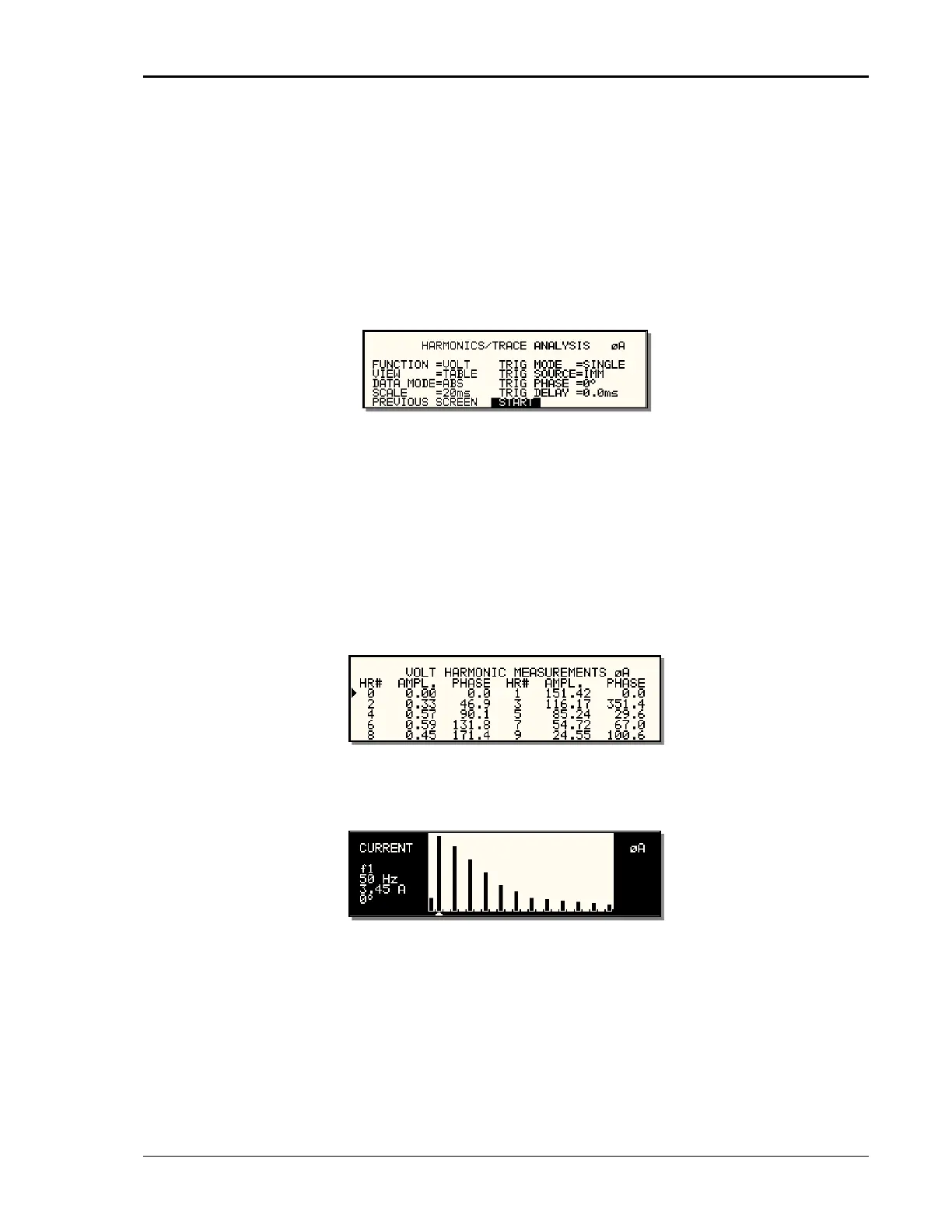

Figure 4-11: HARMONICS/TRACE ANALYSIS Screen
Entry Description
FUNCTION Selects Voltage, Current or Both parameters for display.
VIEW Available display modes are TABLE, BAR and TRACE.
TABLE mode: Displays the first 50 harmonics in a tabular text format.
BAR mode: Displays the first 50 harmonics in a graphical bar chart
display.
TRACE mode: Displays the selected Function in a time domain
(waveform) graphical display.
