4.2.11.1 GPIB/RS232 (incl. USB/LAN) SETUP menu

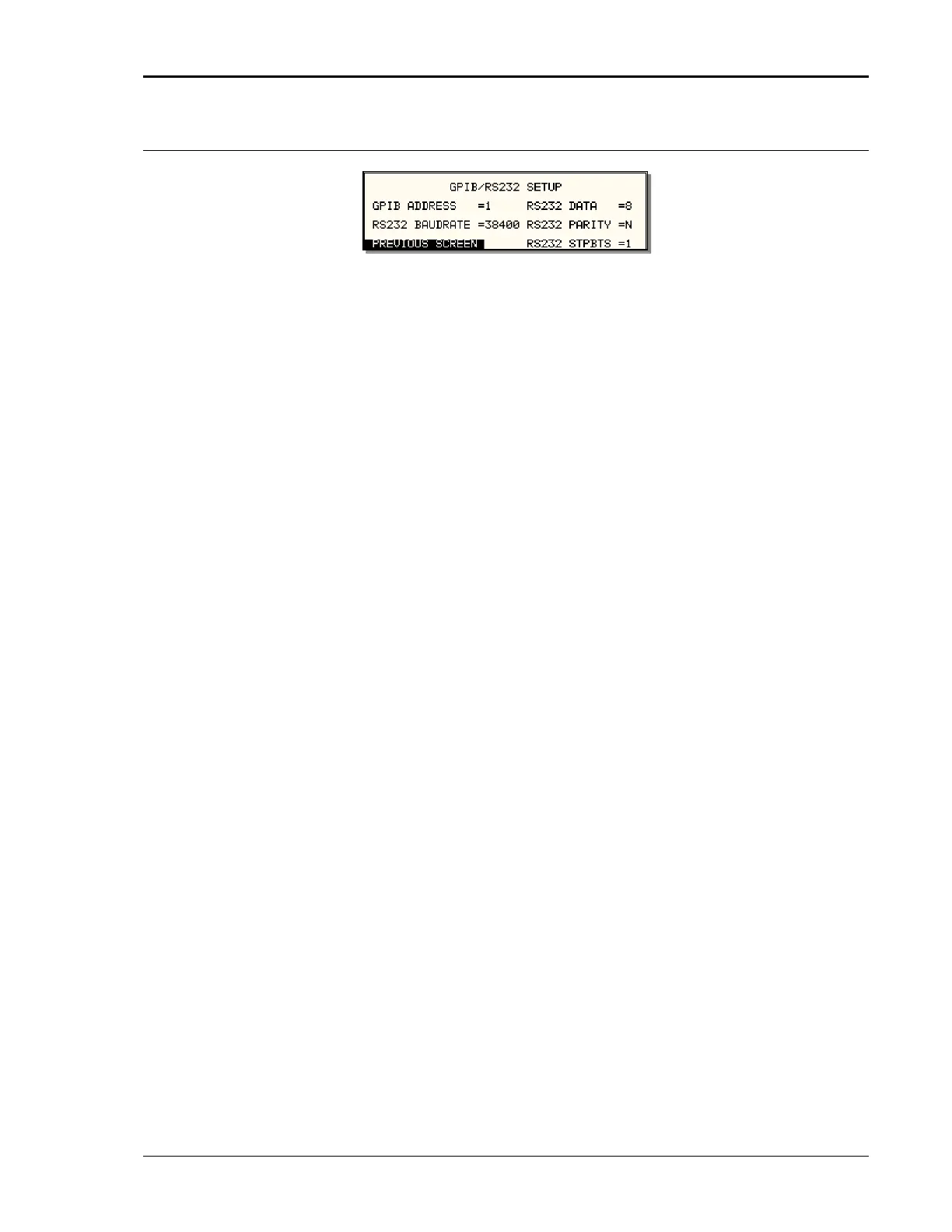

Figure 4-22: GPIB/RS232 SETUP Menu
The GPIB/RS232 SETUP menu may be used to change the interface parameter
settings for both the IEEE-488 interface and the RS232, USB, or LAN interface.
The number of interfaces available will depend on the specific model and options
as well as the time of manufacture. Older MX models do not offer USB or LAN
interfaces. Newer models can be equipped with as many as 4 different
interfaces although only one can be used at the same time.
Refer to the MX Series Programming Manual P/N 7003-961 distributed in Adobe
PDF format on the same CD ROM as this user manual for more details on using
the RS232, USB or LAN interface.
The following parameters can be set from this menu:
GPIB ADDRESS Sets the IEEE-488 address used by the AC source. The
address value can be set from 0 through 31. Address 0
is often reserved for the IEEE-488 controller. The
factory setting is address 1. Once changed, the IEEE-
488 address is retained in nonvolatile memory.
RS232 BAUDRATE This field can be used to set the RS232 baud rate to
either 9600, 19,200, 38,400, 57600 or 115,200 baud.
The baud rate set on the AC source must match the one
programmed for the communications port of the
controller. Baud rates higher than 115200 are provided
for the USB and LAN interface modes only. The same
setting is used for USB and LAN modes. For use with
either USB or LAN, the baud rate in this screen must be
set to 460800. See UTILITY 2 screen for other LAN
setup parameters.
RS232 DATA This field is used to set the number of data bits to
either 7 or 8. Factory setting is 8 bits. This value must
match the number of data bits set on the
communications port of the controller. For USB or LAN
use, always use factory settings.
RS232 PARITY This field is used to set the parity. Available options are
Even (E), Odd (O) or no parity (N). Factory setting is
No parity. This value must match the parity set on the
communications port of the controller. For USB or LAN
use, always use factory settings.
