User Manual – Rev BE AMETEK Programmable Power

MX Series 50

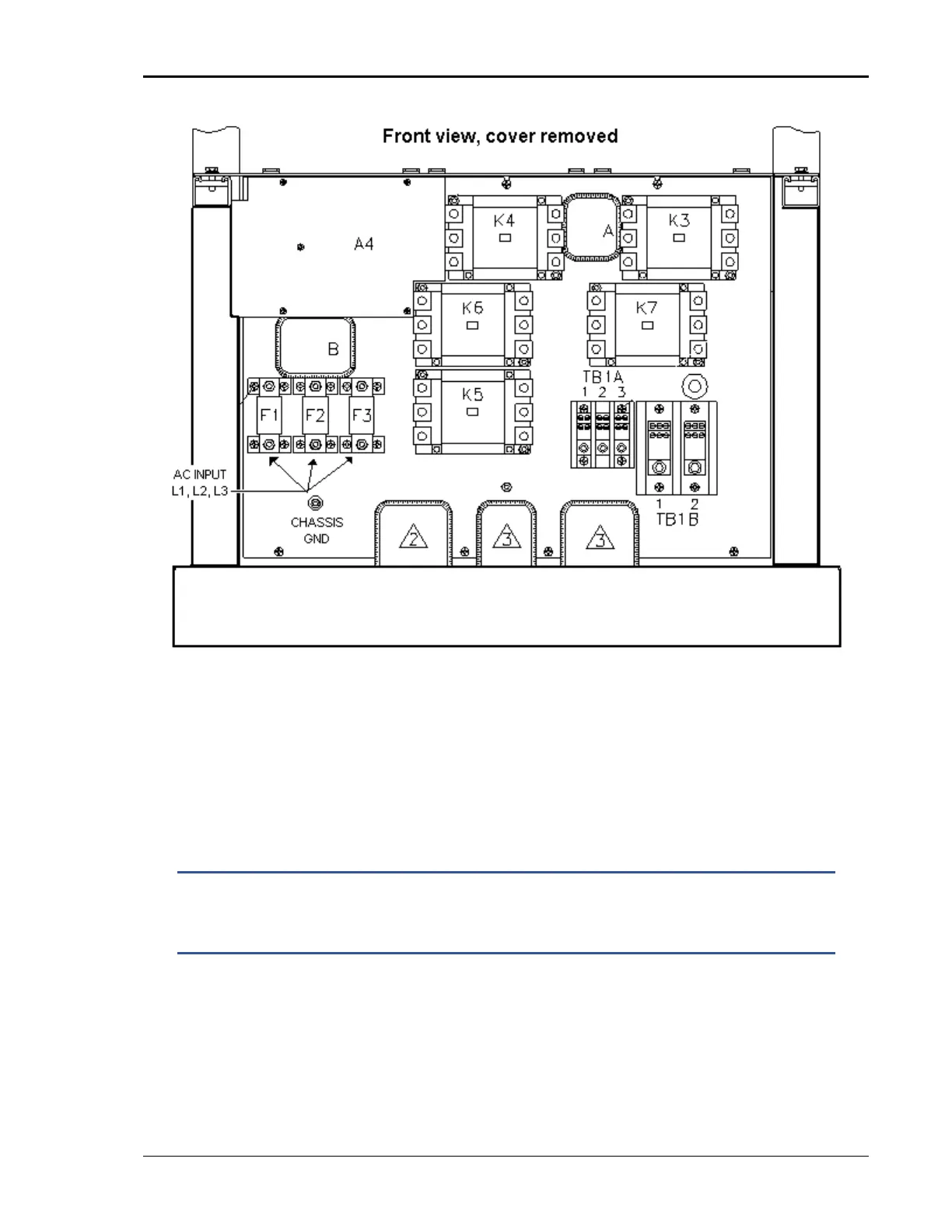

Figure 3-2: Location of AC Input and Chassis Ground Connection -

Front View, Access Panel Removed

NOTE: DO NOT USE THE NEUTRAL CONNECTION OF A 3 PHASE Y AC

POWER CONNECTION IN PLACE OF A TRUE EARTH GROUND

CONNECTION. AC power system neutrals cannot be used for

protective earth ground.

The mains source must have a current rating equal to or greater than the input

fuses and the input wiring must be sized to satisfy the applicable electrical

codes. The front cover must be re-installed prior to use and the strain relief

provisions located at the rear bottom of the unit must be used to maintain

protection against hazardous conditions.
