4.2.11.5 CONFIGURATION SETUP screens

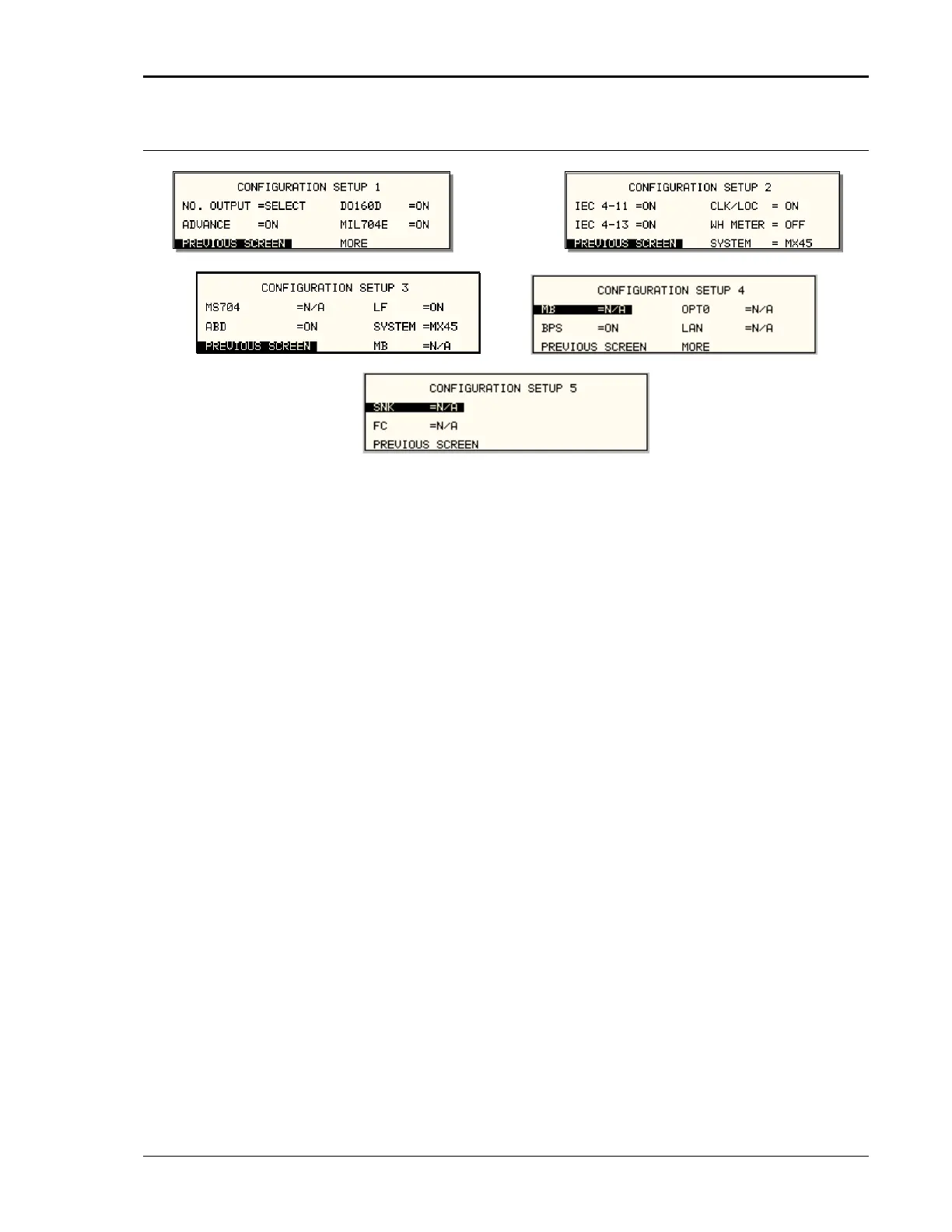

Figure 4-26: CONFIGURATION SETUP Menus
The configuration setup screens are not menus but only serve to inform the user
of the software options installed in the AC source. The cursor can be moved to
any of the fields in this screen but none of these fields can be changed. The
following information is provided on this screen:
Entry Description
CONFIGURATION SETUP 1
NO. OUTPUT Displays the phase mode option. SELECT indicates the
phase mode option is installed and the user can select
between single and three phase modes of operation.
FIXED indicates the phase mode option is not installed
and only single phase or three phase mode of operation
is possible.
ADVANCE [Pi Controllers only] This field indicates the presence of
advanced capabilities for waveform generation and
measurement analysis are present.
DO160 Indicates the presence of the RTCA DO160 test option.
If this option is installed, this field will show ON. If this
option is not installed, this field will show N/A (not
available).
To Next Page
