4.2.14 OUTPUT CAL FACTORS Menu

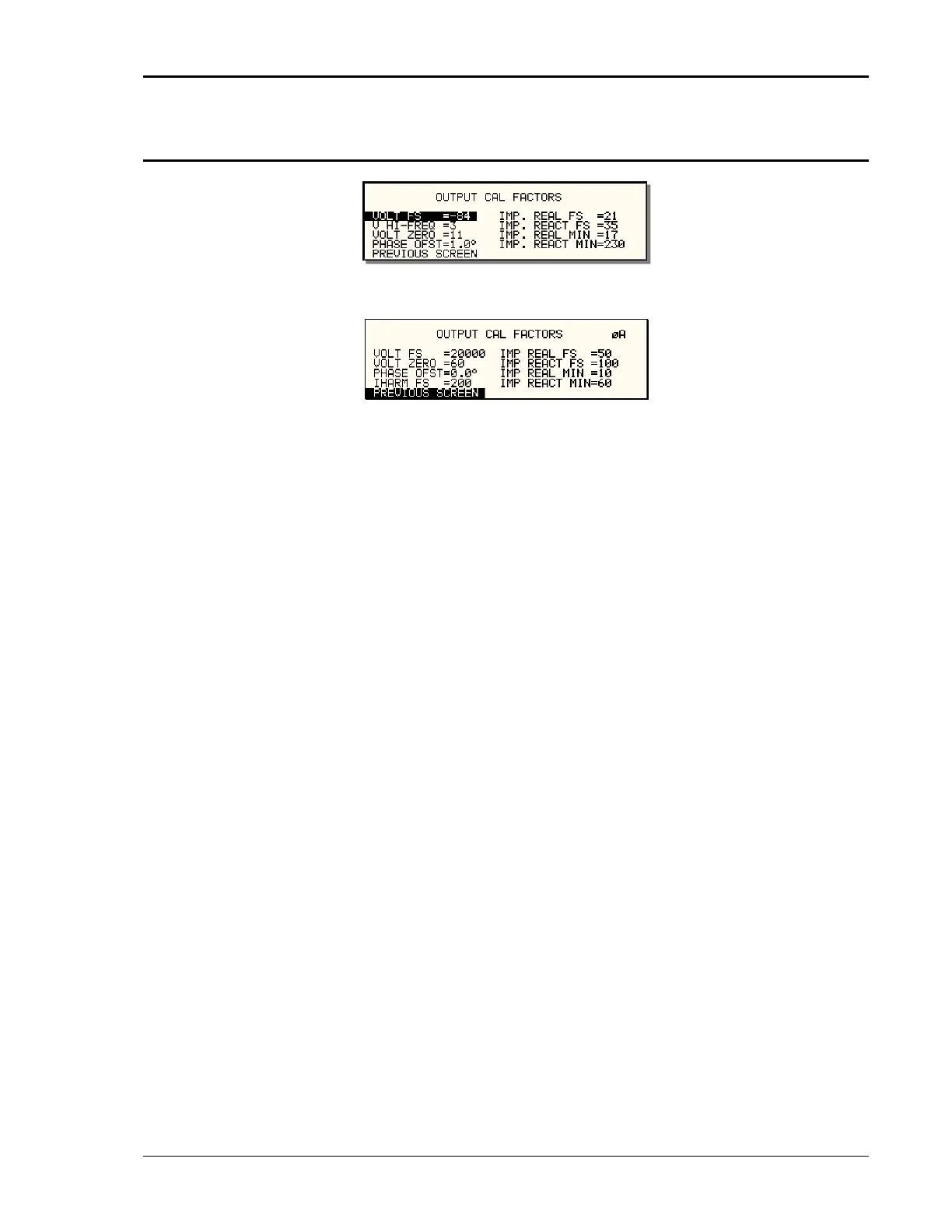

Figure 4-30: OUTPUT CAL FACTORS Menu (Series I only)
Figure 4-31: OUTPUT CAL FACTORS Menu (Series II only)
The OUTPUT CAL FACTORS menu provides access to the output calibration
parameters. These parameters are password protected and can only be changed
after the calibration password has been entered. For three phase configurations,
the PHASE keys toggle between the three calibration screens for each phase.
Refer to the calibration section in this manual for details on performing a
calibration.
The following calibration factors are available from this menu:
Entry Description
VOLT FS Full scale voltage output calibration factor.
V HI-FREQ High frequency full-scale voltage output calibration
factor. (Series I models only.)
VOLT ZERO Zero offset voltage calibration factor.
PHASE OFST Phase offset calibration factor. Compensates for phase
shift caused by AC amplifier.
IHARM FS Option –413 Inter harmonic calibration coefficient.
(Series II models only.)
IMP. REAL FS Full scale resistive output impedance calibration factor.
IMP. REACT FS Full scale inductive output impedance calibration factor.
