User Manual – Rev BE AMETEK Programmable Power
MX Series 166
selected waveform. Using the returned value as part of a program will prevent
range errors.
Limits assume a program of full-scale voltage. No adjustments for voltage
setting are made below the full-scale value.
Waveform selection and frequency programming will be subject to the above
limit. An error message will be generated to reflect this type of error:
"22,Waveform harmonics limit"
Transient editing will also generate the above error during keyboard entry.
Remote transient entry will not check for the error until transient execution.
The frequency domain VIEW mode in the WAVEFORMS menu may be used to
visualize the content of each custom waveform register on the LCD.

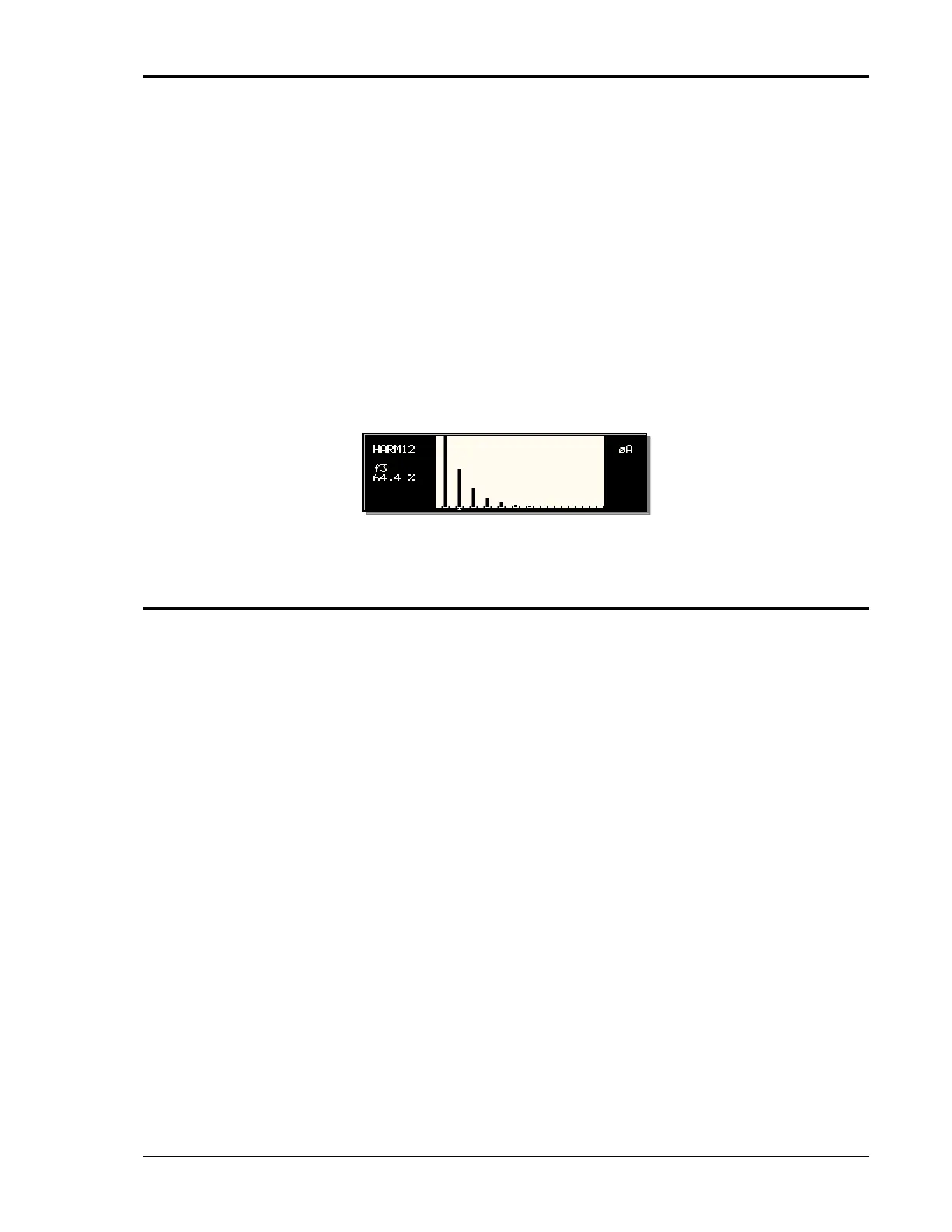

Figure 4-36: Waveform Frequency Domain View Mode
4.4.7 Switching Waveforms
Waveforms can be switched as part of the transient system. Each transient type
setup menu has a FUNCTION field. This field allows selection of any of the
standard or custom waveforms available in the selected group. Refer to the
section on transients for more details on using transient list to switch output
waveforms.
