User Manual – Rev BE AMETEK Programmable Power

MX Series 73

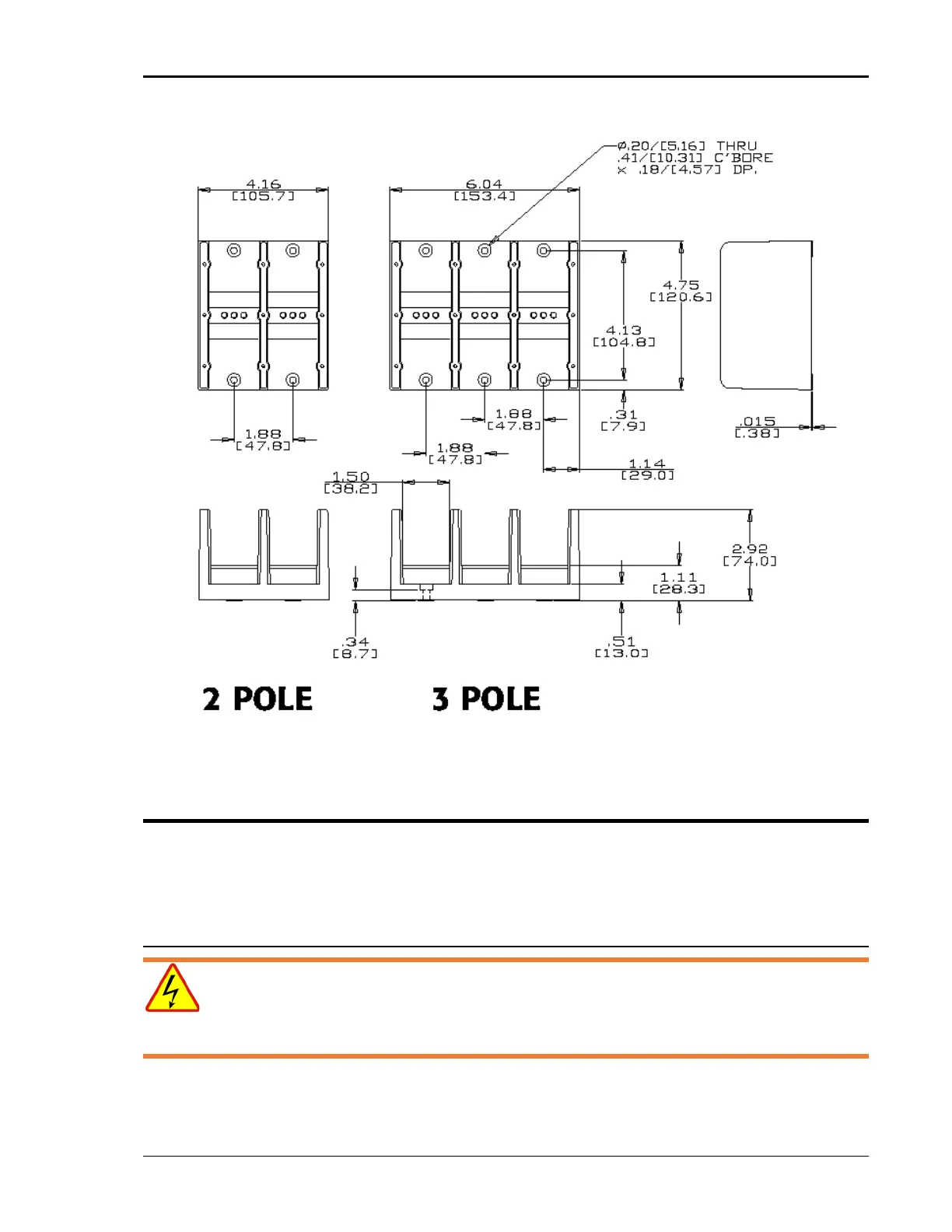

Figure 3-14: Ship kit Terminal Block Dimensions

3.7 Connectors - Rear Panel

Several connectors are located along the top rear covers. These connectors are

in a recessed area to protect them from shipment damage.

3.7.1 System Interface

WARNING: The system interface connectors are for use with AMETEK

Programmable Power supplied cables, and only between

California Instruments equipment.
