4.2.8 ADVANCE MEAS. Menu [3Pi Controller only]
This entry in the MENU 2 screen displays the HARMONICS/TRACE ANALYSIS
screen which is covered in section 4.6. This field can be used in lieu of the MEAS
key to directly bring up the advanced measurements screens.
4.2.9 APPLICATIONS Menus

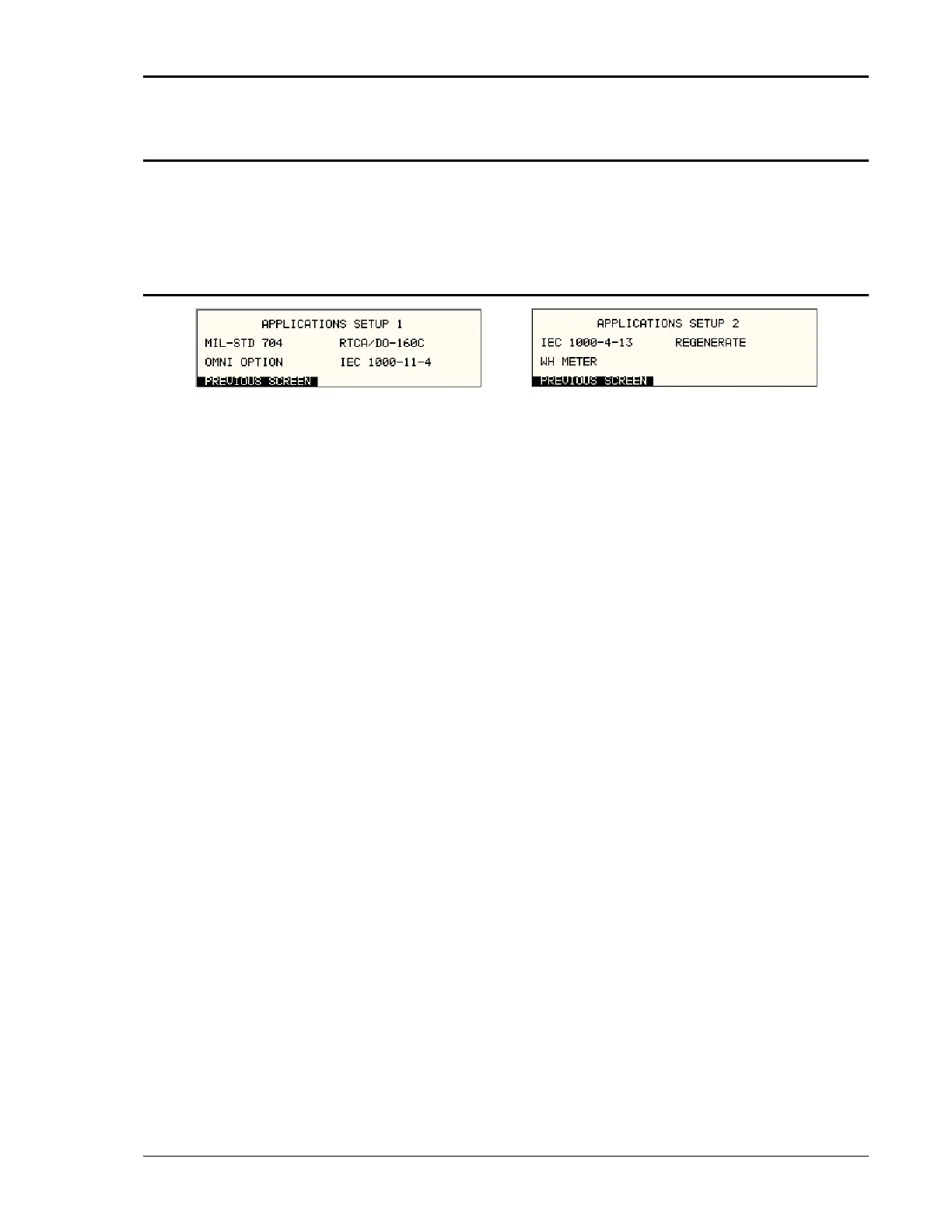

Figure 4-19: APPLICATIONS Menus
The APPLICATIONS menu provides access to the optional application specific
pre-programmed test sequences. Since these test sequences are optional, this
menu may have no choices if none of the options are installed. The following
entries may be found in the APPLICATIONS menu:
Entry Description
MIL-STD 704 Test sequence for MIL standard 704 AC and DC tests.
OMNI OPTION This entry selects the OMNI control menu. The OMNI
option provides a lumped reference impedance for use
in IEC 61000-3-3 or IEC 61000-3-11 Flicker test
applications. If the OMNI option is installed, this screen
allows the impedance to be ENGAGED or BYPASSED.
RTCA/DO-160 Test sequence for RTCA DO160 commercial aviation AC
and DC tests.
IEC-1000-4-11 Test sequences for IEC 61000-4-11 Voltage Dips and
Variations test standard.
IEC-1000-4-13 Test sequence for IEC 61000-4-13 Harmonics and Inter
harmonics test standard.
WH METER Watt Hour meter measurement option. Tracks energy
usage over a period of time and calculates Watt Hours
used.
REGENERATE The REGENERATE entry is enabled only if the –SNK
option is installed. It provides access to the setting for
driving regenerative load.
To Next Page
