4.3 Output Programming
4.3.1 Set the Output
Output parameters are all set from the PROGRAM screen.
1) Use the MENU key and select the PROGRAM entry.
2) Press the ENTER key to bring up the PROGRAM menu.
…or
Use the PROG key to directly bring up the PROGRAM menu.
There are two methods for programming output parameters:
• IMMEDIATE mode
• SET mode

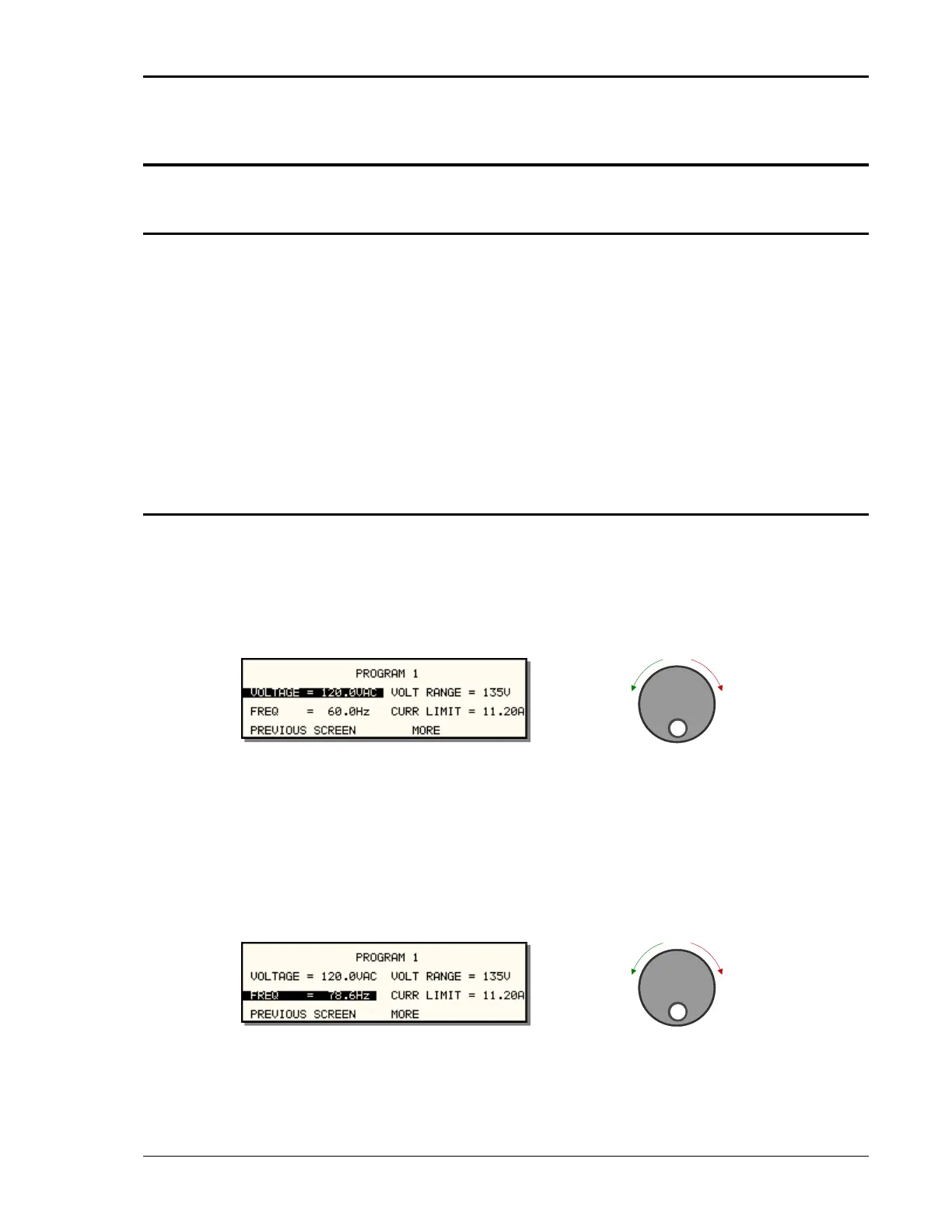

4.3.2 Slewing Output Values with the Knob in IMMEDIATE Mode
The default mode of operation is an immediate mode in which changes to output
parameters made with the knob or the entry keypad are immediately reflected
at the output.
To change the output voltage:
1) Place the cursor on the VOLTAGE entry
2) Rotate the knob clockwise to increase the value,
counterclockwise to decrease the value
These changes take effect immediately.
To change the output frequency:
1) Place the cursor on the FREQ entry
Clockwise
INCREM ENT
DECREM ENT
Counter Clockwise
Clockwise
INCREM ENT
DECREM ENT
Counter Clockwise
To Next Page
