4.7.9 Saving Transient List Programs
When the AC source is turned off, the transient list that was programmed is not
automatically retained. Thus, if you turn the unit off, you will lose your
programmed transient list. However, transient programs may be saved in
nonvolatile memory for later recall. This allows multiple transient list programs
to be recalled quickly without the need to enter all parameters each time.
Transient lists are stored as part of the overall instrument front panel setup in
any of the available setup registers.
To save the transient list you created in the previous example, proceed as
follows:

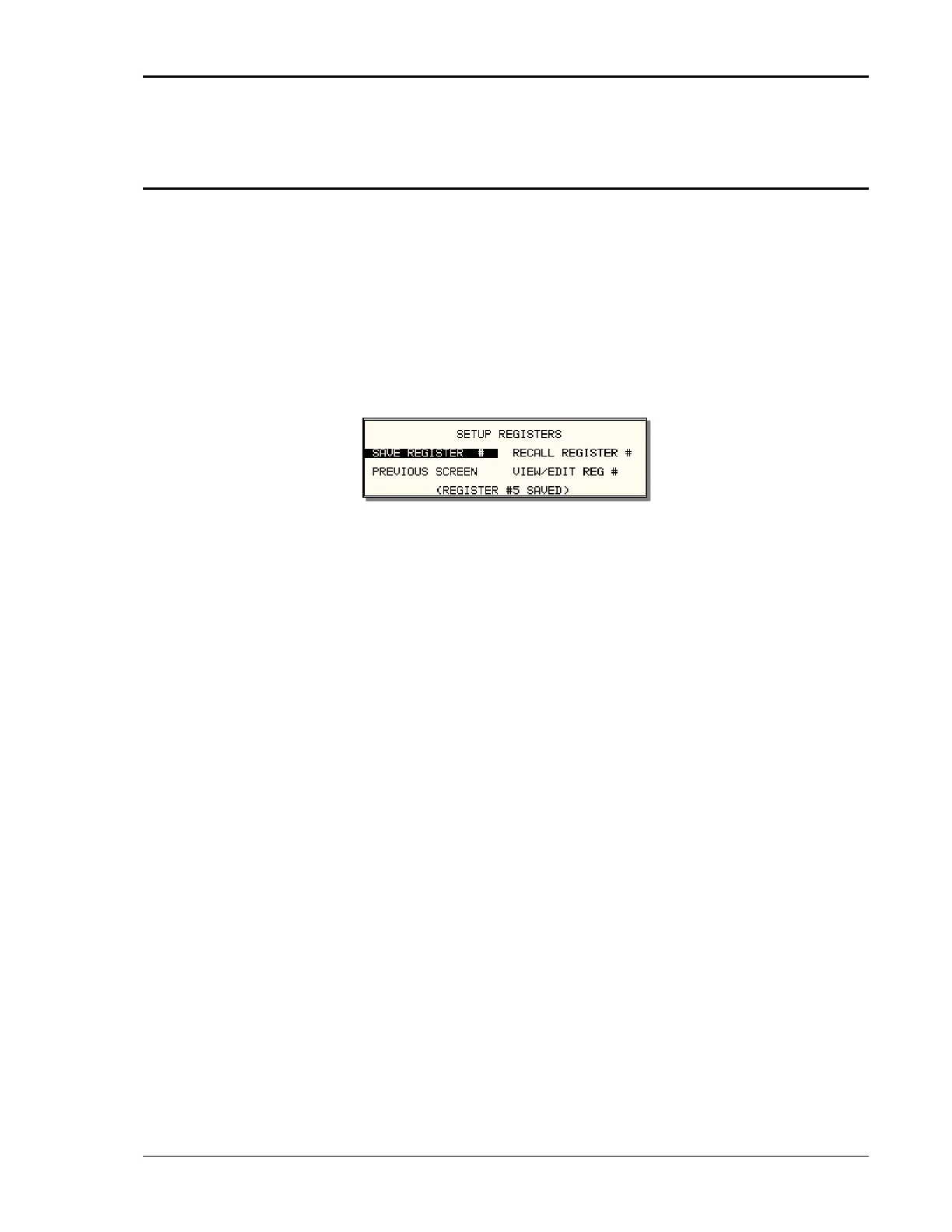

1) Press the MENU key two times to bring up the MENU 2 screen.
2) Move the cursor to the SETUP REGISTERS entry and press the
ENTER key.
3) The cursor will default to the SAVE REGISTER # position. Enter
a number from 0 through 7 and press the ENTER key.
4) A message will appear at the bottom of the screen indicating
that the front panel settings and the transient list data have
been saved in the setup register you selected.
