Page 5–24
UPLC-II™ System Manual

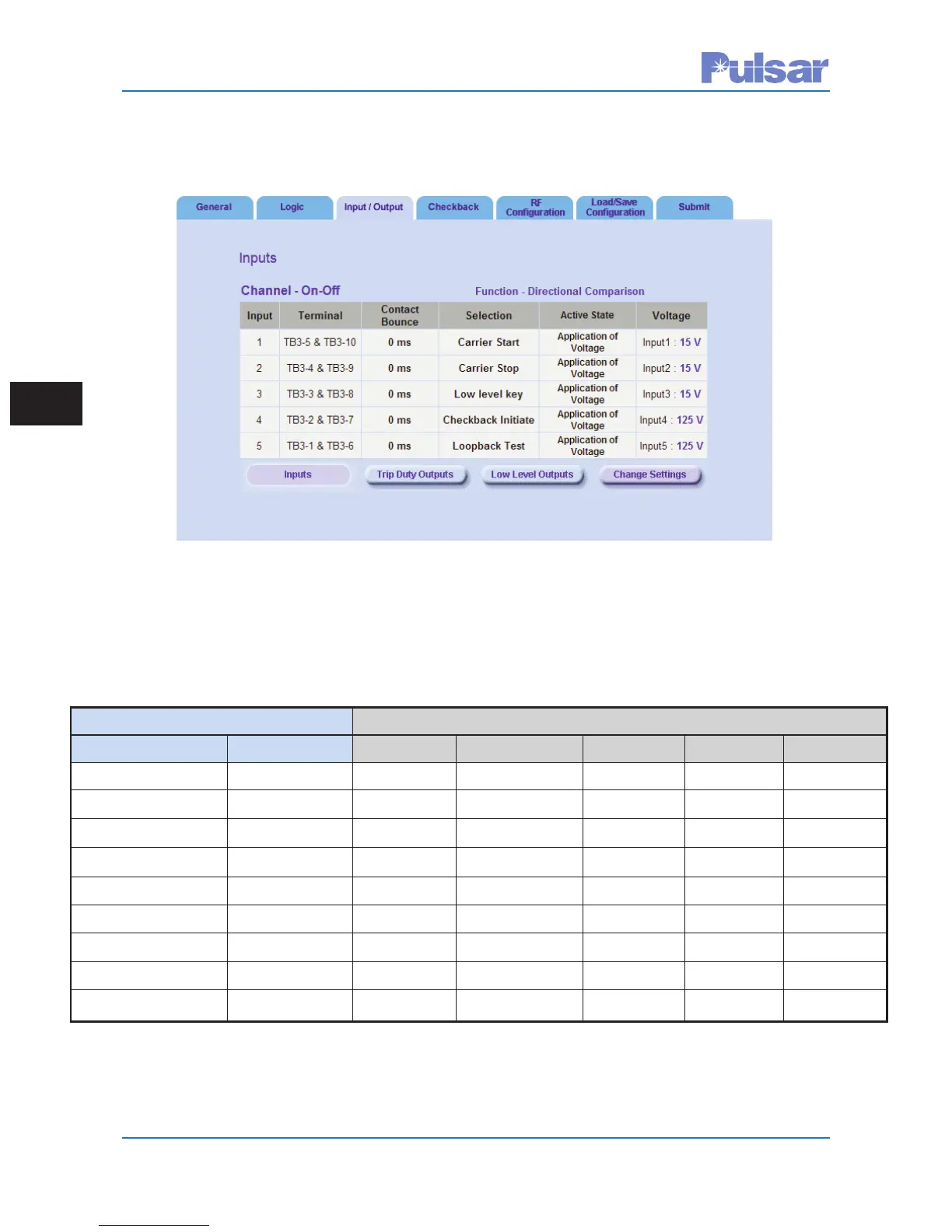

Figure 5–10. Example of the Inputs on the I/O Tab on the Settings Page (ON/OFF Mode)
ON/OFF FSK
Directional Comparison Phase Comparison Unblocking-2F Phase Comparison POTT/DTT-2F 3-Freq. 4-Freq.
Carrier Start Carrier Start UB Key PC Key Trip Key LR Key A Key
Carrier Stop Carrier Stop (TX) Power Off Boost (52B) (TX) Power Off DTT Key B Key
Low Level Key Low Level Key Trip Test SOE Event 1 Trip Test (TX) Power Off (TX) Power Off
Checkback Alarm Reset Checkback Alm Reset Disable Trip Test SOE Event 2 Disable Trip Test Trip Test Boost (52B)
Checkback Initiate Checkback Initiate Boost (52B) SOE Event 3 Boost (52B)
Disable Trip Test SOE Event 1
SOE Event 1 SOE Event 1 SOE Event 1 SOE Event 1 Boost (52B) SOE Event 2
SOE Event 2 SOE Event 2 SOE Event 2 SOE Event 2 SOE Event 1 SOE Event 3
SOE Event 3 SOE Event 3 SOE Event 3 SOE Event 3 SOE Event 2
Loopback Test Initiate Loopback Test Initiate SOE Event 3
Table 5–12. Input Selection Choices
LR = Line Relaying (POTT or UB) UB = Unblock PC = Phase Comparison
