Ametek UPLC-II User Manual

January 2016 Page 5–35
Chapter 5. Installation/Commissioning Procedure
5

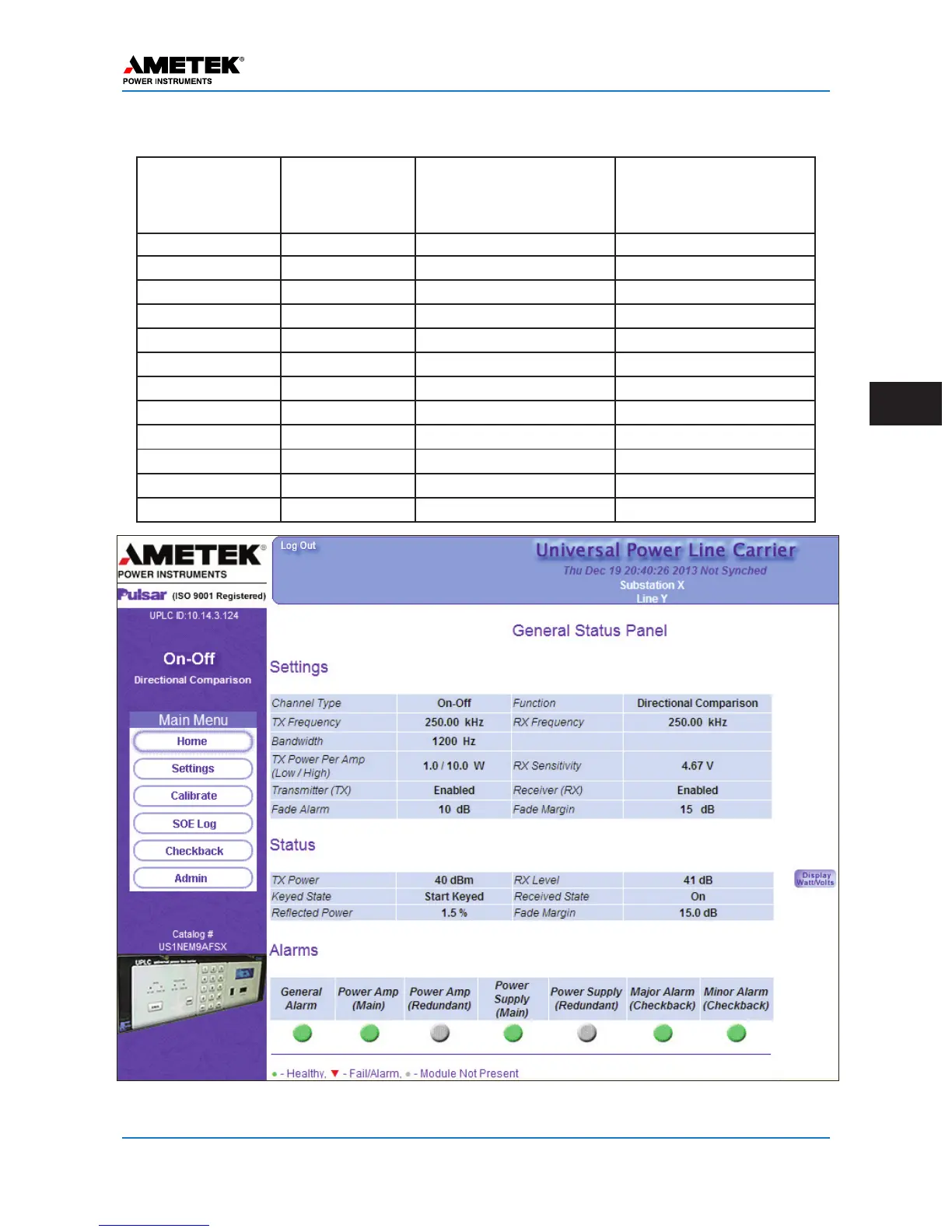

Figure 5–17. Example of the Home Page
RX Level
(dBm) When
Calibrated
RX Level (V)
When
Calibrated
RX Sensitivity with
15 dB Fade Margin
(V)
RX Sensitivity with
20 dB Fade Margin
(V)
+40 22.36 V 3.84 V
2.24 V
+35 13.24 V 2.34 V
1.32 V
+30 7.05 V 1.27 V
705 mV
+26 4.46 V 798 mV
446 mV
+20 2.24 V 397 mV
224 mV
+15 1.26 V 205 mV
126 mV
+10 707 mV 113 mV
70.7 mV
+5 398 mV 65 mV
39.8 mV
0 224 mV 37 mV
22.4 mV
–5 126 mV 21 mV
12.6 mV
–10 70.7 mV 12 mV
7.1 mV
–15 39.7 mV 6.7 mV
4.0 mV
Table 5–17. RX Level vs RX Sensitivity
