UPLC-II™ System Manual
ON/OFF-DC
TX:250.00kHZ0.0W
RX:250.00kHZ0mV
Margin-40.0dBOFF
17.515” (444.88mm)
2.25” (57.15mm)
5.218”
(132.53mm)
1.485” (37.72mm)
18.215” (462.66mm)
18.915” (480.44mm)
OPTIONAL
MOUNTING
BRACKET
9.633”
(244.68mm)
12.883”
(327.23mm)
13.258”
(336.75mm)
13.818”
(350.98mm)
RIGHTSIDEVIEW
FRONTVIEW
TOP VIEW
.28” (7.14mm)
PANEL CUTOUT(IFMOUNTINGIN A PANEL)
17.81”(452.43mm)
18.38”(466.72mm)
DRILL & TAP #10-32(4)
2.25”
(57.15mm)
5.25”
(133.35mm)
1.50”(38.10mm)
CUTOUT
(nottoscale)

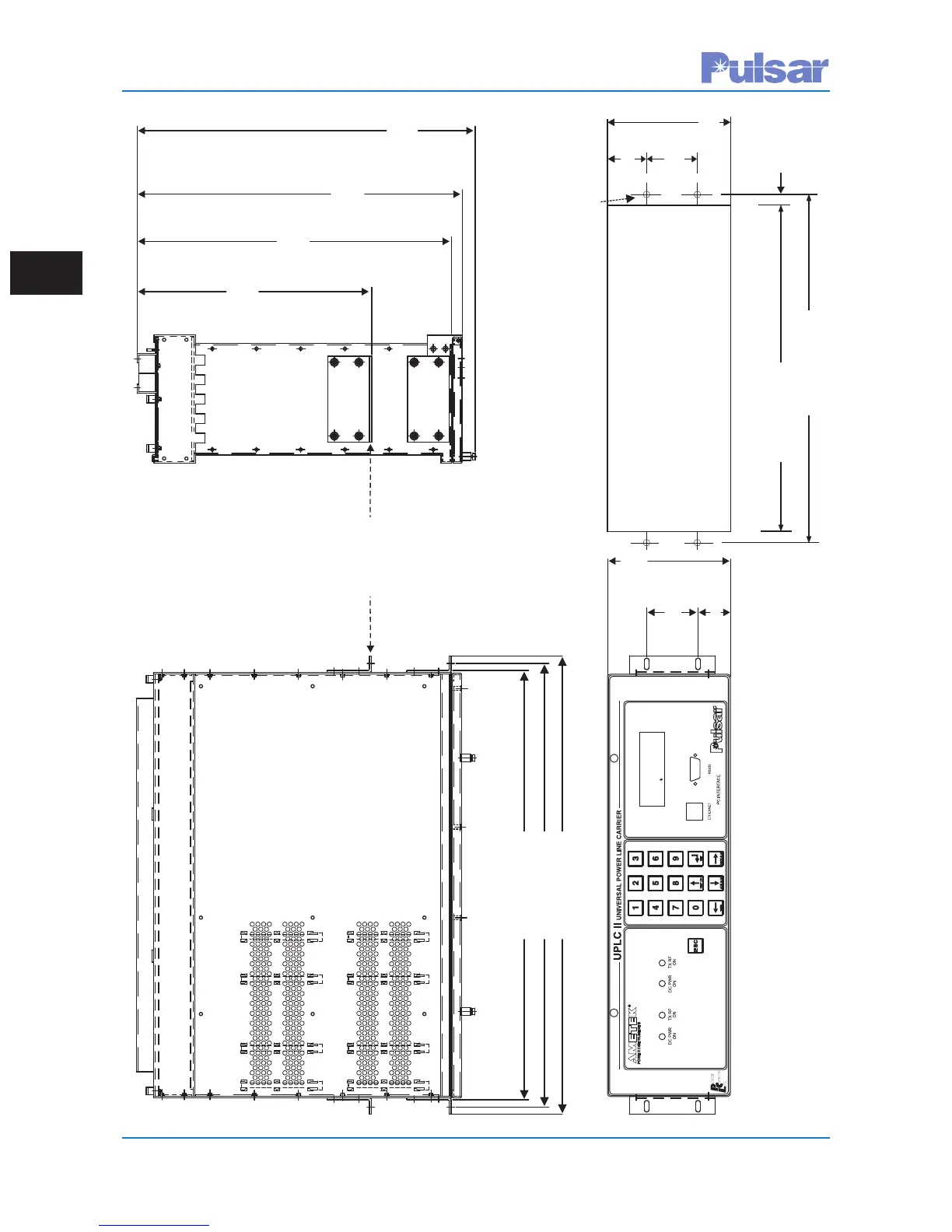

Figure 2–3. Chassis Dimensions
Optional
Mounting
Bracket
Position
(for Projection
Mounting)
