NXD/T-1200V Wall/Flush Mount Touch Panel
Protected Setup Navigation Buttons
The Protected Setup Navigation Buttons (FIG. 91) appear on the left of the panel screen when the Protected Setup page
is currently active.
These Navigation Buttons are specific to these Modero panels and include the panel specific elements described in the
following table:

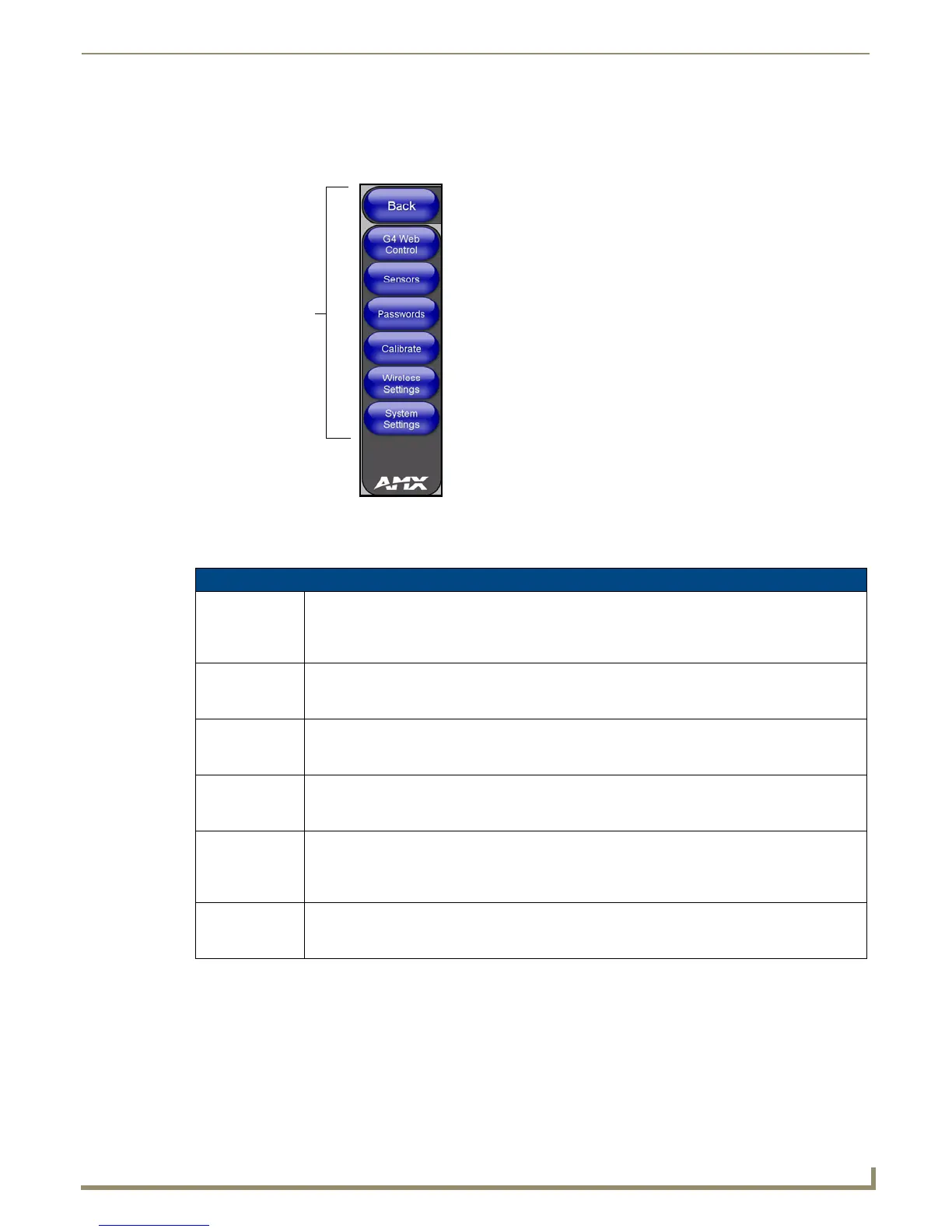

FIG. 91 Protected Setup Navigation Buttons
Protected Setup Navigation Button Elements
G4 Web Control: Press the G4 Web Control button to access the G4 Web Control page where you can enable or
disable display and control of your panel (via the web) by a PC running a VNC client.
• Refer to the Using G4 Web Control to Interact with a G4 Panel section on page 64 for more
detailed information.
Sensors: Press the Sensors button to access the Sensors Setup page where you can modify/monitor both the
light and motion sensor settings.
• Refer to the Sensor Setup Page section on page 95 for more detailed information.
Passwords: Press the Passwords button to access the Passwords Setup page where you can specify up to five
security passwords. Default password is 1988.
• Refer to the Password Setup Page section on page 98 for more detailed information.
Calibrate: Press the Calibrate button to access the Calibration page where you can use the displayed set of
crosshairs to calibrate a touch panel.
• Refer to the Calibration Page section on page 98 for more detailed information.
Wireless Settings: Press the Wireless Settings button to access the Wireless Settings page where you can setup the
wireless connection parameters used by the
NXA-PCI80211G wireless card located within the Modero panel.
• Refer to the Wireless Settings Page section on page 99 for more detailed information.
System Settings: Press the System Settings button to access the System Settings page where you can alter the
communication parameters of both the NetLinx Master and Modero panel.
• Refer to the System Settings Page section on page 102 for more detailed information.
Modero Protected
Setup Navigation
Buttons
