Touch Panel Accessories
17
NXD/T-1200V Wall/Flush Mount Touch Panel
3. Carefully remove the gold-tipped terminal ends of the antenna from their factory default connectors on the main
board. The antenna is secured at this location to restrict its movement prior to connection to a wireless card.
4. Firmly grasp the NXA-PCI80211G mini-PCI card (from the edges) and insert the pins (at a 25° angle) into the
opening on the connector (FIG. 20).
5. While maintaining the 25° angle alignment on the new module, push it in firmly until the contact pins are
completely inside the connector and the card "snaps" into place (FIG. 20).
6. Push the card downward (to the main board) until the side braces snap atop the NXA-PCI80211G and hold it in
place.
7. Locate the terminal ends of the antennas and apply downward pressure to "snap" them onto their gold-tipped
counterparts on the mini-PCI card (FIG. 20). Carefully push down on each connector to verify it is securely joined
to the card.
Step 3: Install the Compact Flash Memory Card upgrade
1.
Discharge any static electricity from your body by touching a grounded metal object and then locate the existing
Compact Flash card (factory-shipped with 128 MB) on the main board (FIG. 21 for Table Top panels and FIG. 24
for Wall Mount panels).

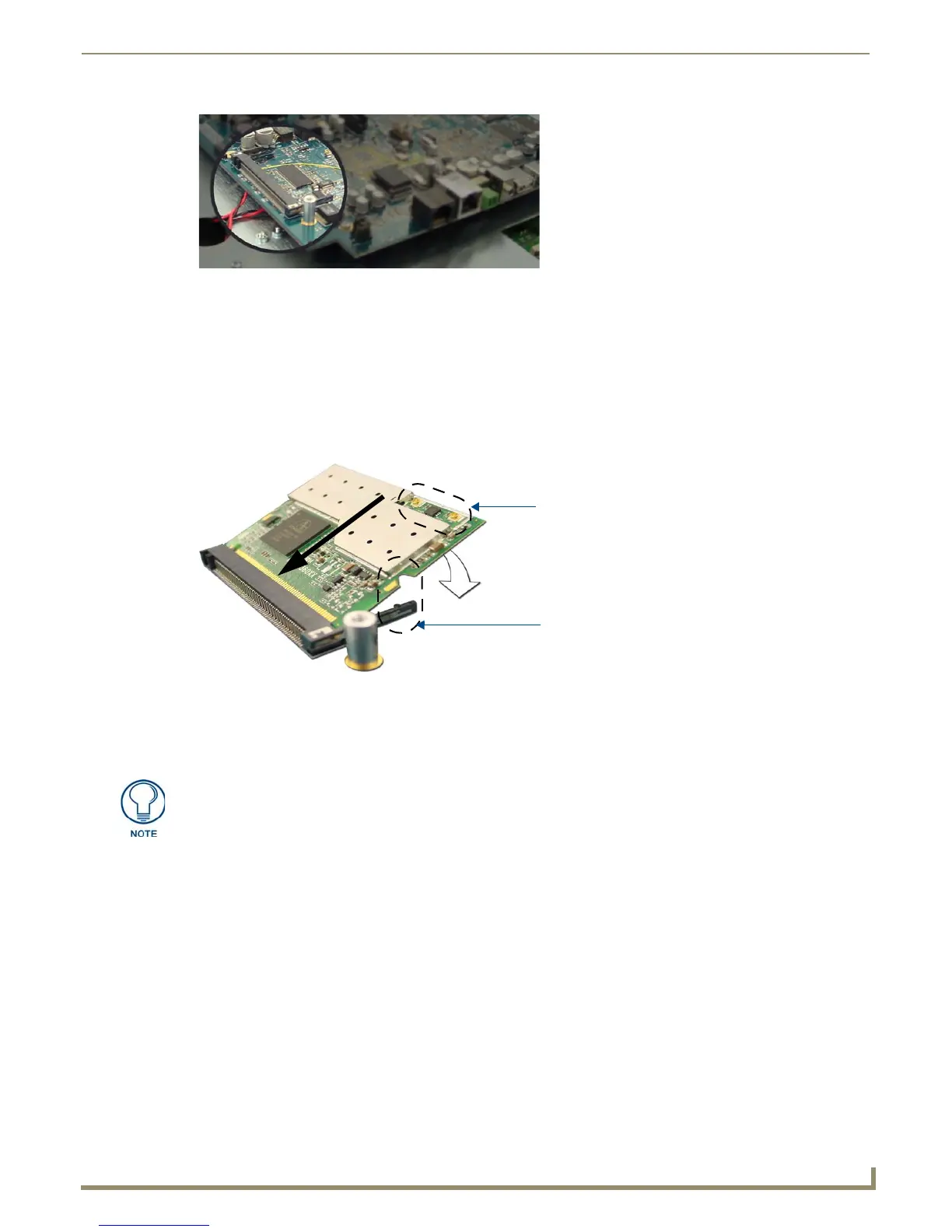

FIG. 19 Location of the mini-PCI card connector on main board
FIG. 20 Installation of the mini-PCI card connector on main board
Connection point
between the braces and
the mini-PCI card
Antennas connectors
It is recommended that any upgrade of internal equipment be done simultaneously in
order to reduce the risk of damage to internal components.
