NXD/T-1200V Wall/Flush Mount Touch Panel
Introduction
AMX has taken a great leap forward with the release of their new 1200V-Series of Modero touch panels. These panels
offer the ability to display Composite video, 802.11g communication, and USB support for extended input devices, and
panel programming via a mini-USB port. The new G4 graphics and Video technology is supported by the release of the
latest TPDesign4 Touch Panel Design Program. These video-capable panels support several video formats: NTSC,
SECAM, and PAL (Color Active (CA) panels don’t support video).
Each 1200V-Series panels have been pre-installed with 2 antennas which can be later used to configure each panel type
for wireless communication (via an optional NXA-80211G wireless mini-PCI card).
Modero Video Touch Panels (1200V-Series)
The new and enhanced line of 12" Modero Touch Panel (NXT/NXD-1200V) represent the next step in video-capable
panels and departs from the previously popular CA version. In addition to
Composite/S-Video support (does not support Component RGB signals), the new 1200V panels feature dual USB
connectivity for mouse and keyboard, and antennas, the use of a mini-USB port for panel programming and a complete
departure from the use of an ICSNet connector for communication. These panels include a built-in microphone, left/right
speakers, audio/headphone connector, and an included audio/video breakout box.
Table Top models use AMX’s exclusive SmoothTilt
®
technology for effortless adjustment of the viewing angle.
Each panel is sold only as part of a 1200V Kit which includes both a panel and an
NXA-AVB/ETHERNET Audio/Video Breakout Box (FG2254-10). This box facilitates the installation and distribution
of video, data, and audio to Modero touch panels located up to 200 feet (60.96 m) from the breakout box. These panels
are ideally suited for displaying full motion video and audio with overlay graphics for applications with demanding
visual requirements. The following is a listing of the currently available 1200V panels:
1200-V Modero Video Touch Panels
NXD-1200V
(FG2251-60K)
12" Modero Video WallMount Touch Panel Kit
(includes both an NXD panel and an NXA-AVB/ETHERNET A/V Breakout Box).
NXT-1200V
(FG2250-60K)
12" Modero Video Table Top Touch Panel Kit
(includes both an NXD panel and an NXA-AVB/ETHERNET A/V Breakout Box).
FIG. 1

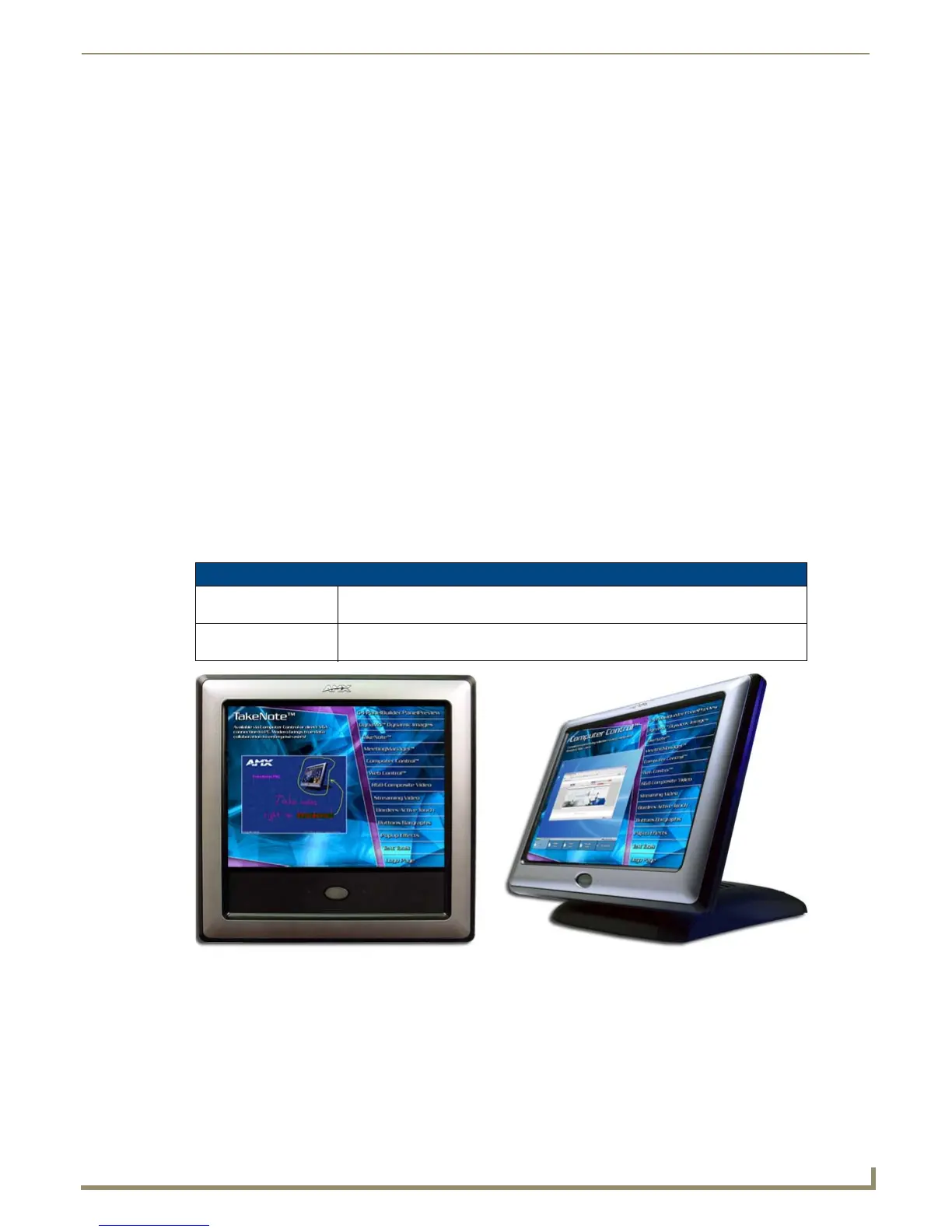

Sample 1200V Video Touch Panels (front views)
NXD-1200V (front view)
NXT-1200V (front view)
