NXD/T-1200V Wall/Flush Mount Touch Panel
NXA-BASE/B Battery Base Kit (FG2255K)
The NXA-BASE/B Battery Base is a Modero accessory that allows the Modero Table Top touch panels (NXT) to
function off the collective charge of two internally connected NXT-BP batteries (FG2255-10). The base provides both
power and battery information to the panel via the panel interface connector (FIG. 26). The NXT-BP batteries can be
charged through either the base (only when connected to the NXT touch panel) or through an optional NXT-CHG
Modero Power Station.
This base also comes as part of a NXA-BASE/B Kit that contains one (1) battery base and two batteries. The
accompanying batteries can be charged through either the base or optional NXT-CHG Battery Charger (FG2250-50).
Refer to the Installing the NXA-BASE/B to an NXT Modero Panel section on page 23 for more detailed installation and
usage instructions.
Product Specifications

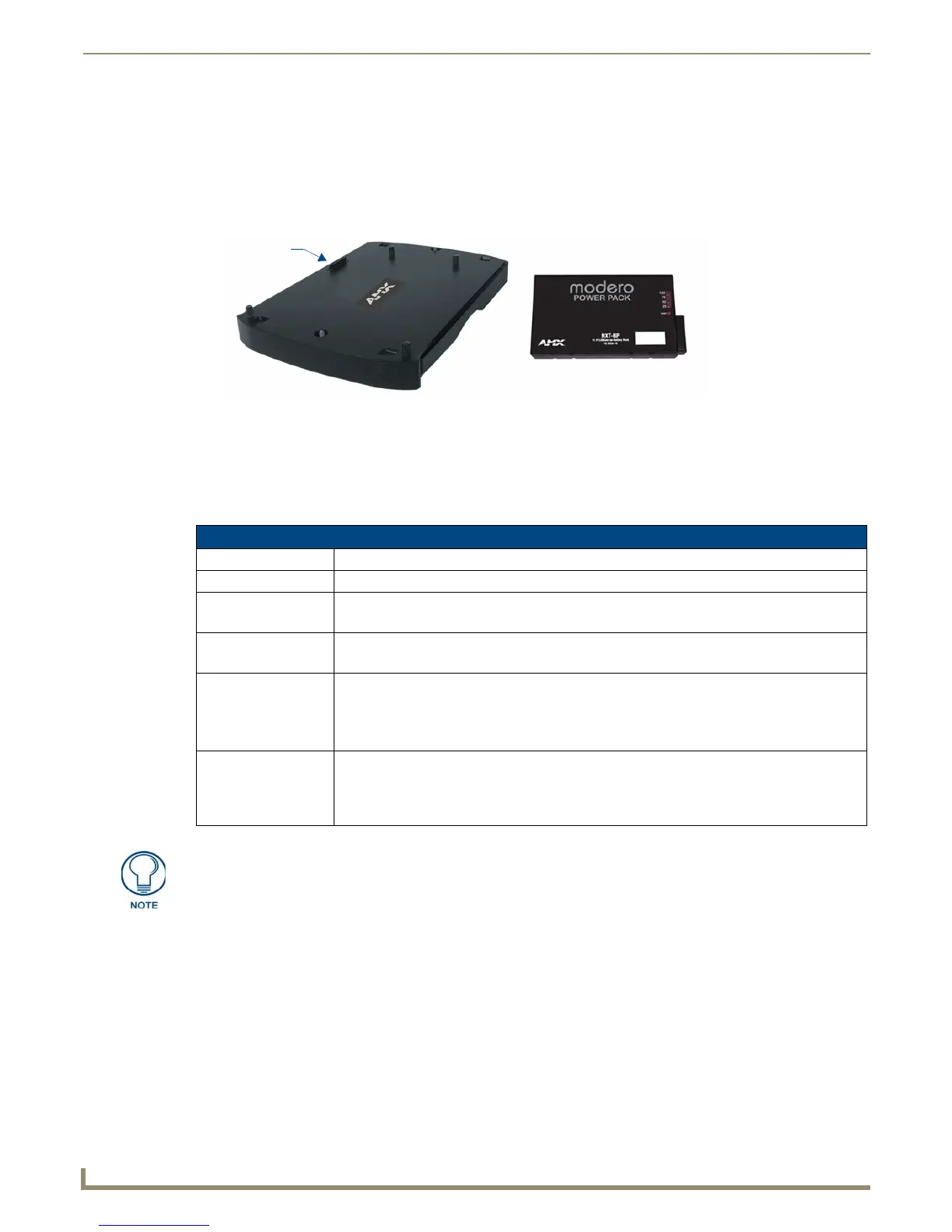

FIG. 26 NXA-BASE/B and NXT-BP combo
NXA-BASE/B Specifications
Dimensions (HWD): • 1.13" x 8.63" x 11.81" (2.86 cm x 21.91 cm x 30.00 cm)
Power Requirements: • 2.7 A @ 12 VDC (max power draw while charging)
Weight: • Base unit: 1.25 lbs (0.567 kg)
• Base and 2 batteries: 3.23 lbs (1.47 kg)
Features: • Charge time for two depleted batteries ~ 5 - 8 hours (when NXT panel is in Sleep mode)
• Must be connected to the Modero unit utilizing a 12 VDC-compliant power supply
Operating / Storage
Environment:
• Operating Temperature: 0° C (32° F) to 40° C (104° F)
• Operating Humidity: 20% - 85% RH
• Storage Temperature: -20° C (-4° F) to 60° C (140° F)
• Storage Humidity: 5% - 85% RH
Other AMX Equipment: • NXT-CHG Kit (FG2250-50K):
Charger (FG2250-50) and 2 NXT-BP batteries (FG2255-10)
• NXT-BP battery pack (FG2255-10)
• NXT-CHG battery charger (FG2250-50)
NXA-BASE/B NXT-BP
Battery Base
Battery Pack
Panel Interface
Connector
It is recommended to fully charge the batteries before their initial use.
