AMX NXD-1200V

Firmware Pages and Descriptions
82
NXD/T-1200V Wall/Flush Mount Touch Panel
Setup Page
This page (FIG. 83) centers around basic Modero panel properties such as: Connection Status of the panel, Display
Timeout, Inactivity Page Flip Time, Inactivity page file, and the Panel Brightness.
The elements of the Setup page are described in the table below:
Setup Navigation Button Elements (Cont.)
Battery Base: Press the Battery Base button to access the Battery Base page where you can modify and monitor
NXT-BP Modero Power Pack parameters.
• This button only appears when a Modero Table Top panel (NXT) is connected to an NXA-
BASE/B battery base.
• Refer to the Battery Base Page section on page 89 for more detailed information.

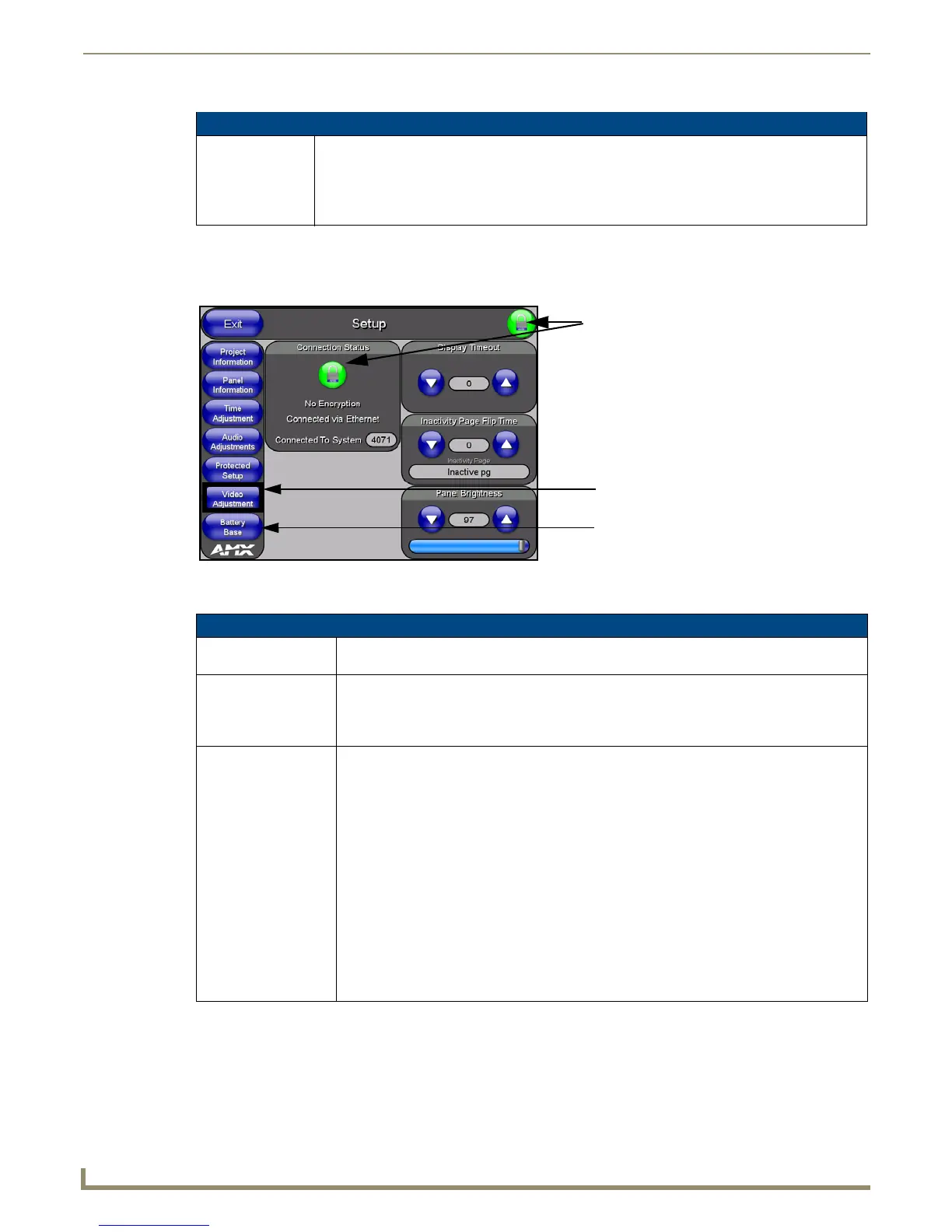

FIG. 83
Setup page
Setup Page Elements
Exit: Returns you to the Main touch panel page. In this case, the previous page is the default Main
page.
Connection Status icon: This visual display of the connection status allows the user to have a current update of the
panel’s connection status regardless of what page is currently active.
A Lock only appears on the icon if the panel has established a connection with a currently
secured target Master (requiring a username and password).
Connection Status: Displays whether the panel is communicating externally, the encryption status of the
communicating Master, what connection type is being used (Ethernet or USB), and what
System the panel is a part of.
This visual display of the connection status is also reflected at the upper-right of each firmware
page. This allows the user to have a current visual update of the panel’s connection status
regardless of what page is currently active.
• When a connection is established, the message displayed is either: "Connected via
Ethernet " or "Connected via USB ".
• If no connection can be established by the Modero panel, it will continue to try and
establish a connection while displaying: "Attempting via ...".
•The word "Encrypted" appears only when an encrypted connection is established with a
target Master.
• The panel must be rebooted before incorporating any panel communication changes and
detecting any active Ethernet connections. The Ethernet connection is not detected
until after a reboot.
Video Adjustment button doesn’t
appear on Non-Video (CA) panels
Battery Base button doesn’t appear
until NXT is connected to a BASE/B
Connection Status
Red Connection Status icon -
Green Connection Status icon -
indicates no connection to a Master
indicates communication to a Master
