Firmware Pages and Descriptions
87
NXD/T-1200V Wall/Flush Mount Touch Panel
Supported sampling rates for WAV
The following is a listing of supported sampling rates associated for WAV files played on these panels. Some WAV files
currently played on Modero's may not work on these panels. The supported sampling rates for WAV files are:
Protected Setup Page
This button opens the Protected Setup page which centers around the properties used by the panel to properly
communicate with the NetLinx Master. Refer to both the Protected Setup Navigation Buttons section on page 91 and the
Protected Setup Page section on page 92 for more detailed information.

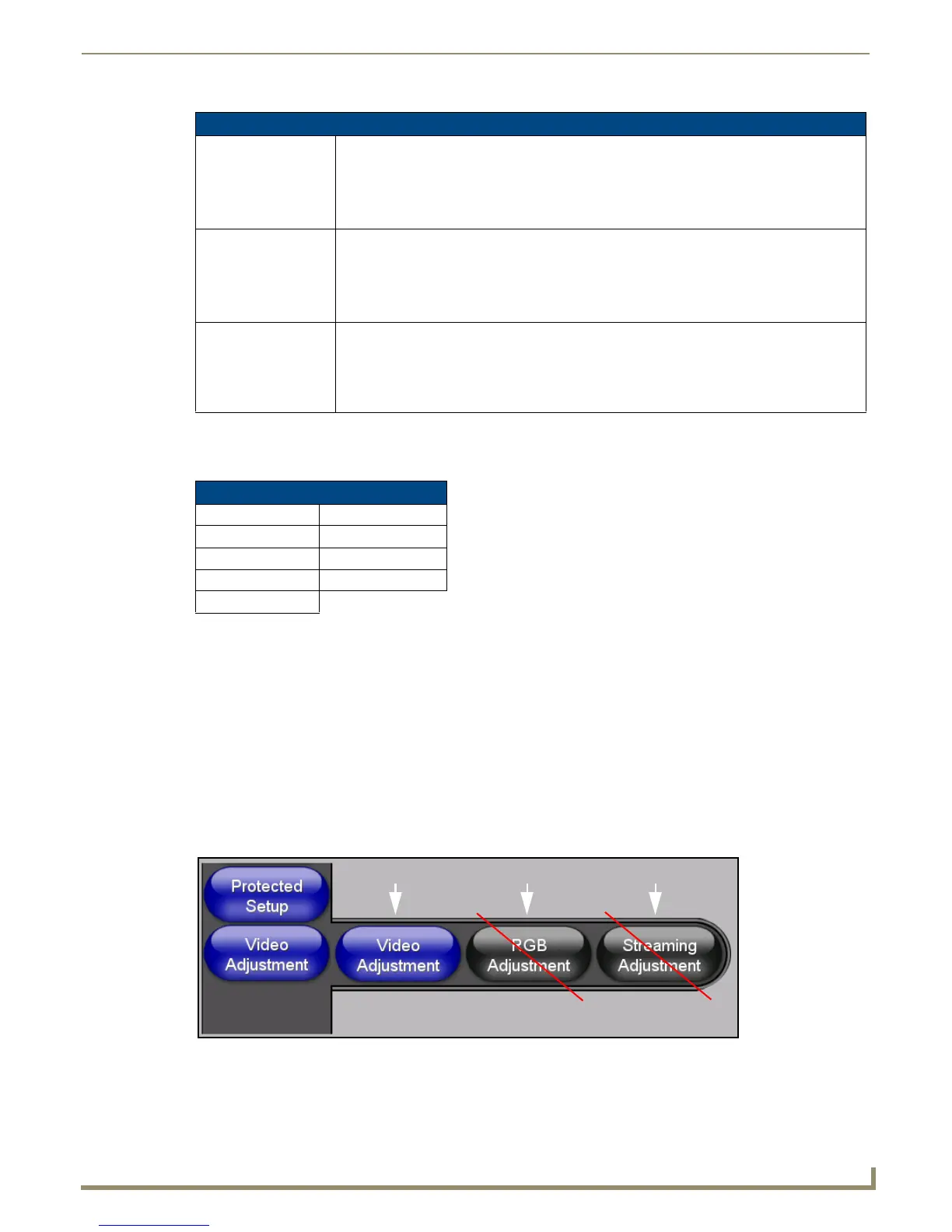

Video Adjustment Slide-Out Option Bar
Pressing the on-screen Video Adjustment button causes an option bar to slide outwards from the Navigation buttons
(FIG. 88). This option bar within a 1200V panel provides you with one choice: Video Adjustment. The other two options
(RGB Adjustment and Streaming Adjustment) are only available on a VG-Series panel and are greyed-out
(inaccessible). Each of these options corresponds to an on-board slot position where the related components reside (as
seen below). As an example: Composite video is available via slot 1 because of the location of associated components.
Since these components are shared between the 1200V-Series and VG-Series panels, it is an option common to both.
Refer to the following section for detailed information on this option.
Volume Page Elements (Cont.)
Internal Sound Level: This section allows you to adjust the current sound level on the internal panel speaker:
• Use the UP/DN buttons to adjust the volume output on the internal speakers (range = 0 -
100).
• The Internal Sound Level bargraph indicates the current sound level.
• The Mute button mutes the volume.
Line In Level: Allows you to adjust the current Line-In volume level (being received from the communicating
breakout box).
• Use the UP/DN buttons to adjust the Line-In volume level (range = 0 - 100).
• The Line-In Level bargraph indicates the current Line-In level.
• The Mute button mutes the Line-In volume.
Mic Out Level: Allows you to adjust the current Microphone volume level (being received from the
communicating breakout box).
• Use the UP/DN buttons to adjust the Microphone volume level
(range = 0 - 100).
• The Mic Out Level bargraph indicates the current Mic Out level.
Supported WAV Sampling Rates
• 48000 Hz • 16000 Hz
• 44100 Hz • 12000 Hz
• 32000 Hz • 11025 Hz
• 24000 Hz • 8000 Hz
• 22050 Hz
FIG. 88
Video Adjustment Slide-Out Options Bar
