NXD/T-1200V Wall/Flush Mount Touch Panel
Modero Table Top Cable (CA2250-50)
The Modero Table Top Touch Panels come with a standard 10' (3.048 m) Modero cable (CA2250-50) that supports
Ethernet, Audio/Video, and Power connections. The cable comes terminated with two RJ45 connectors (Ethernet and
Audio/Video) and a single 2-pin mini-Phoenix connector for power.
Product Specifications

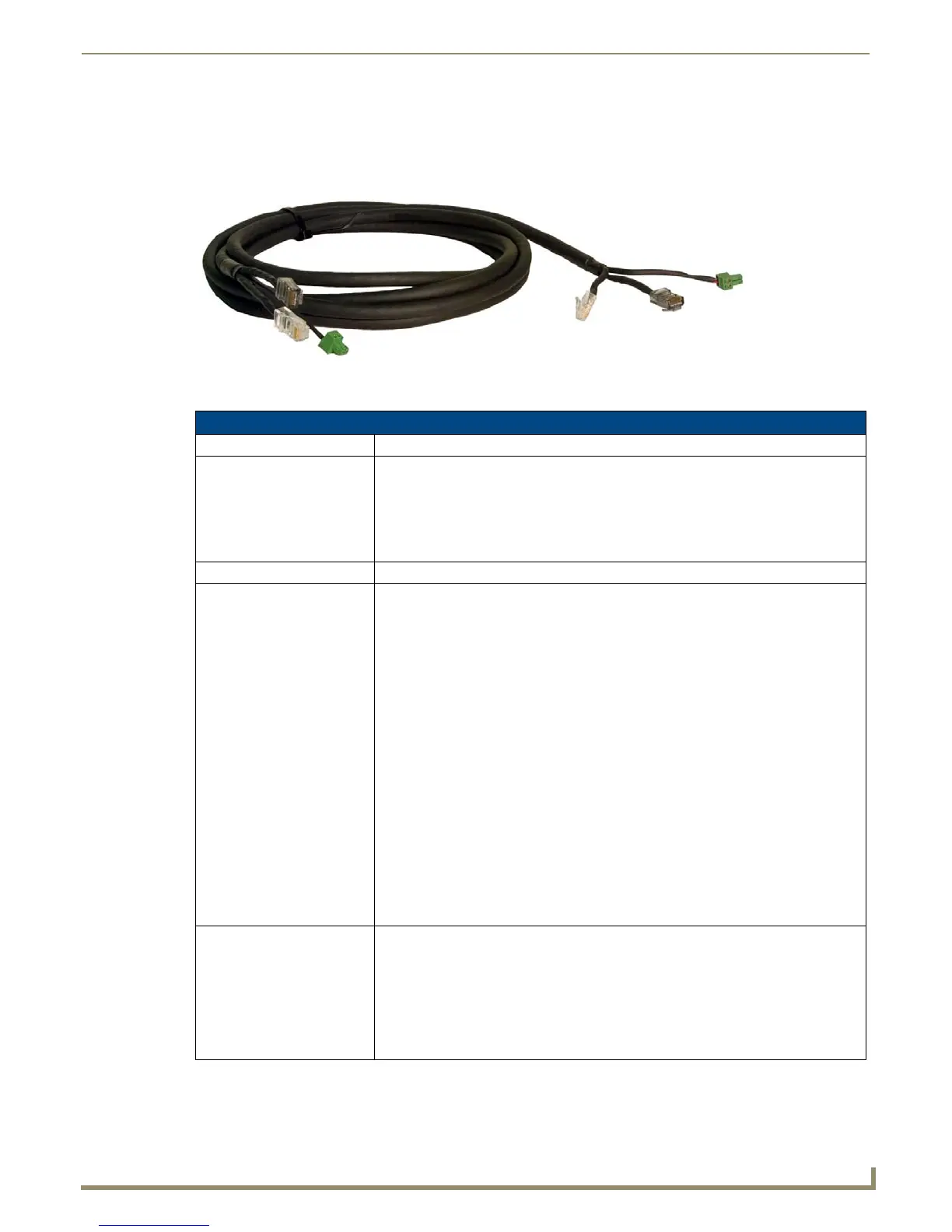

FIG. 9 10 Foot Modero Table Top Cable
Modero Table Top Cable Specifications
Dimensions (HWD): • Length: 10 feet (3.048 m)
Connectors: • Ethernet RJ-45 connector (White) routes Ethernet signals between the touch panel
and the NXA-AVB/ETHERNET Breakout Box.
• Audio/Video RJ-45 connector (Black) routes differential audio/video signals
between the touch panel and the box.
• 2-pin 3.5 mm mini-Phoenix power connector to route power from the external
breakout box to the target panel.
Included Accessories: • Modero Table Top Cable (CA2250-50)
Other AMX Equipment: Note: All 1200V, VG-Series, and CV10 Table Top panels routing an Audio/Video signal
from a breakout box must use the appropriate number of CAT5 Suppression Ferrites
which are included as part of installation kits accompanying your particular Modero
panel.
Each of the following Installation Kits come with the appropriate number of CAT5
Suppression Ferrites. These ferrites must be installed onto their appropriate
locations.
• Installation Kit for 12" and 17" NXD panels (KA2251-01):
- 2-pin mini-Phoenix connector (41-5025)
- Three Phillips-head screws (#4-20 x 0.250 Black) (80-0114-08)
- One CAT5 Suppression Ferrite (04-0014)
- Four Drywall clips (62-5924-05) and #6 -metal strips (80-0192)
• Installation Kit for 15" NXD panels (KA2251-02):
- 2-pin mini-Phoenix connector (41-5025)
- Three Phillips-head screws (#4-20 x 0.250 Black) (80-0114-08)
- Two CAT5 Suppression Ferrites (04-0014)
- Four Drywall clips (62-5924-05) and #6 -metal strips (80-0192)
• Installation Kit for 12" NXT panels (KA2251-03):
- 2-pin mini-Phoenix connector (41-5025)
- Three Phillips-head screws (#4-20 x 0.250 Black) (80-0114-08)
- Two CAT5 Suppression Ferrites (04-0014)
Other AMX Equipment (Cont.): • Installation Kit for 15" and 17" NXT panels (KA2251-04):
- 2-pin mini-Phoenix connector (41-5025)
- Three Phillips-head screws (#4-20 x 0.250 Black) (80-0114-08)
- One CAT5 Suppression Ferrite (04-0014)
• Installation Kit for 10" NXT panels (KA2259-01):
- 2-pin 3.5 mm mini-Phoenix connector (41-5025)
- One CAT5 Table Top Suppression Ferrite (04-0014)
- One cylindrical CAT5 USB Mouse Suppression Ferrite (04-0018-SA)
