Firmware Pages and Descriptions
92
NXD/T-1200V Wall/Flush Mount Touch Panel
Protected Setup Page
The Protected Setup page (FIG. 92) centers around the properties used by the panel to properly communicate with the
NetLinx Master. Enter the factory default password (1988) into the password keypad to access this page.
The elements of the Protected Setup page are described in the table below:

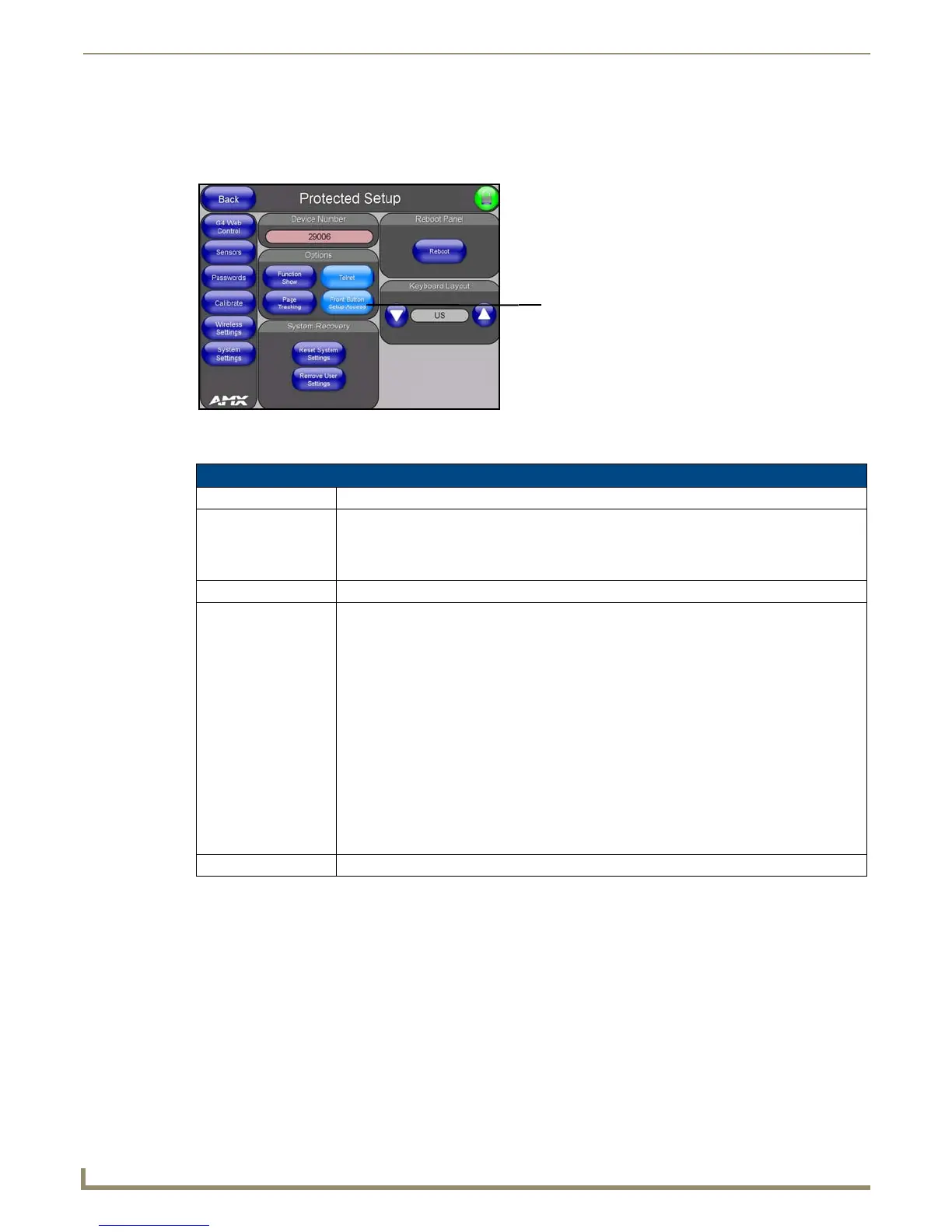

FIG. 92 Protected Setup page-showing default values
Protected Setup Page Elements
Back: Saves the changes and returns you to the previously active touch panel page.
Connection Status icon: This visual display of the connection status allows the user to have a current visual update of
the panel’s connection status regardless of what page is currently active.
• A Lock only appears on the icon if the panel has established a connection with a currently
secured target Master (requiring a username and password).
Device Number: Opens a keypad that is used to set and display the current device number.
Options: Allows you to select various touch panel features:
•The Function Show button enables the display of the channel port and channel code in
the top left corner of the button, the level port and level code in the bottom left corner, and
the address port and address code in the bottom right corner (see FIG. 94 for an example
of the function locations).
• Use the Page Tracking button to toggle page tracking. When enabled, the touch panel
sends page data back to the NetLinx Master, or vice versa depending on the touch panel
settings.
• Use the Telnet button to enable or disable the telnet server on the panel. This feature
focuses on direct telnet communication to the panel.
• Use the Front Button Setup Access button to activate the grey Front Setup Access
button (located below the LCD) to access the firmware pages.
- Default condition is On.
- Press and hold this grey button for 3 seconds to access the Setup page.
- Press and hold this grey button for 6 seconds to access the Calibration page.
Reboot Panel: Pressing this button causes the panel to restart after saving any changes.
Provides access to the panel firmware
pages by enabling the grey front
- Setup page (after a 3 second press/hold)
- Calibration page (after a 6 second
setup access button:
press/hold)
