NXD/T-1200V Wall/Flush Mount Touch Panel
NXT-CHG Battery Charger Kit (FG2255-50K)
The NXT-CHG Kit includes one charger and two batteries. The optional NXT-CHG Modero Power Station (FIG. 31) is
a two-slot, stand-alone battery charger that can be used to recharge up to two NXT-BP batteries. The batteries are
charged in the order they are inserted into the charger. The NXT-CHG Slot 1 has the feature of being able to completely
discharge and recharge (recalibrate) a battery.
Product Specifications
The batteries are charged in the order they are inserted into the NXT-CHG. SLOT 1 of the
NXT-CHG has the ability to completely discharge and recharge (recalibrate) a battery.
Powering the NXT-CHG
The NXT-CHG Smart Battery Charger uses an included power supply to charge inserted batteries.
1. Connect the rear of the NXT-CHG to the power adapter.
2. Connect the power adapter to the provided power cord (with plug).
3. Provide power to the unit by connecting the power cord (with plug) into a power outlet that meets the requirements
outlined in the Specifications section for the NXT-CHG.

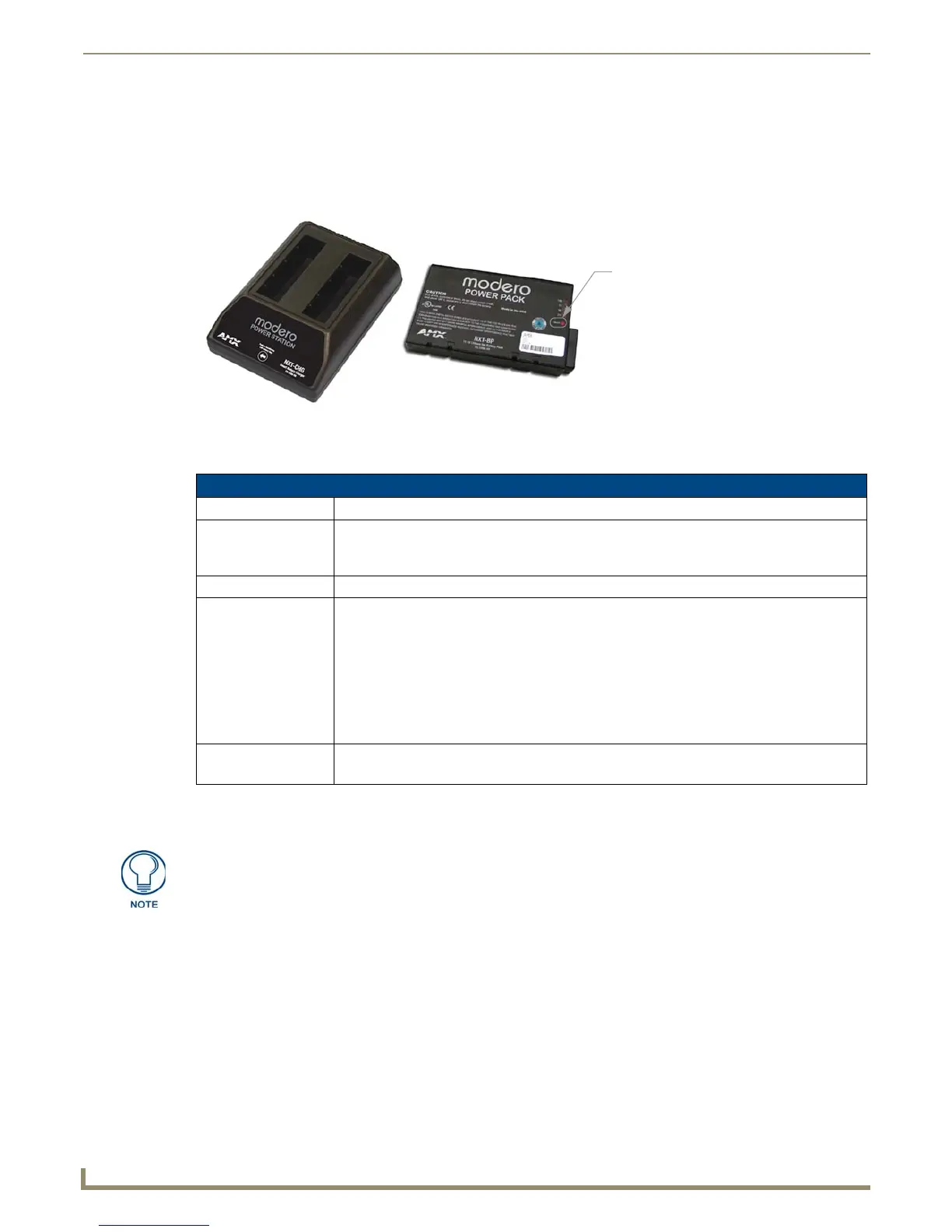

FIG. 31 NXT-CHG Kit (consists of one NXT-CHG charger and two NXT-BP batteries)
NXT-BP and NXT-CHG Specifications
Dimensions (HWD): • 1.13" x 8.63" x 11.81" (2.86 cm x 21.91 cm x 30.00 cm)
Power Requirements: • NXT-BP Battery Voltage - 11.1 Volts
• NXT-CHG: 90 - 264 VAC, 47-63 Hz, Single Phase (using the included 24 VDC power
supply)
Weight: • 0.57 lbs (0.26 kg)
Features: • Charge time for two depleted batteries: ~ 5 hours
• Charge Rate: 2.5 A @ 12 VDC
• 2-Bays: Sequential charging
• LED: One LED indicator in front of each bay which conveys the status of that bay. Refer to
the Reading NXT-CHG LED Indicator section for more information.
• Recalibration pushbutton (located between the bays): Initiates recalibration sequence in
the left bay only.
• Recalibration Time: less than 9 hours
Other AMX Equipment: • NXT-CHG Kit (FG2250-50K): - 1 charger and 2 NXT-BP batteries
• NXT-BP battery pack (FG2255-10) (additional)
NXT-CHG Modero Power Station (charger)
NXT-BP Modero Power Pack (battery)
Battery Life indicator
Recalibration improves the reporting accuracy of the battery charge back to the
Modero panel.
