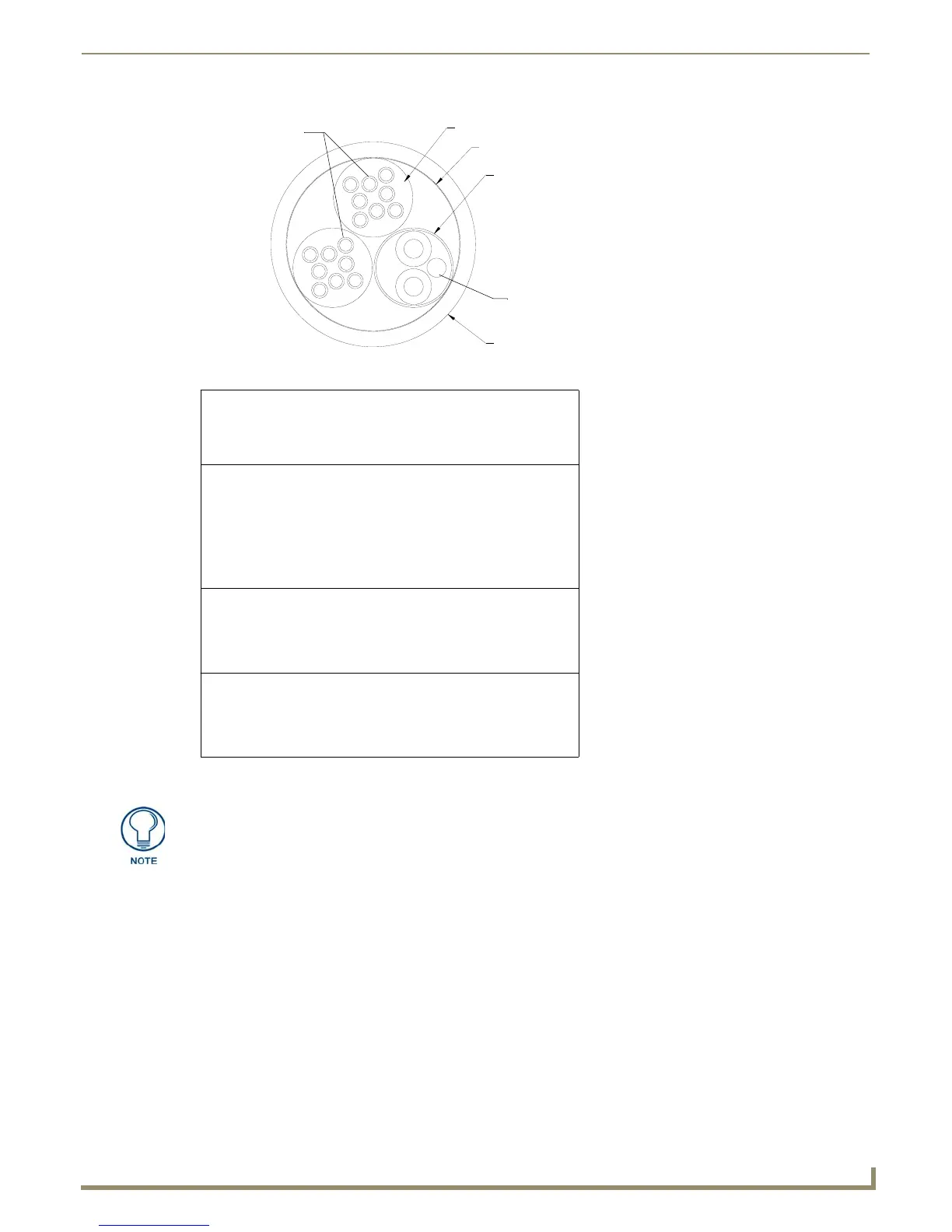

FIG. 11 Table Top Cable - cross-section view
FIG. 12 Table Top Cable - Specification Elements
ELEMENT #1:
CONDUCTOR:
INSULATION:
COLOR CODE:
P2: WHITE/ORANGE, ORANGE
P3: WHITE/GREEN, GREEN
PAIR:
(TWISTED AT VARIED LAYS TO MINIMIZE CROSS TALK)
ELEMENT #2:
CONDUCTOR:
INSULATION:
COLOR CODE:
CABLE:
BINDER:
FINAL ASSEMBLY:
AXIS TO MINIMIZE DIAMETER
BINDER:
JACKET:
COLOR:
DIAMETER:
P4: WHITE/BROWN, BROWN
DRAIN WIRE:
SHIELD:
DESCRIPTION:
TWO 4/PAIR 24 AWG STRANDED TINNED COPPER,
POLYETHYLENE INSULATION, ELEMENT #2: 1/PAIR 18 AWG
STRANDED TNNED COPPER, PVC INSULATION AND FOIL
SHIELDED OVERALL PAPER BINDER AND FLEX-PVC JACKET.
9/PAIRS COMPOSITE CABLE CONSISTING OF: ELEMENT #1:
2 X 4/PAIRS: 24 AWG STRANDED COPPER
24 AWG 7/32 TINNED COPPER; OD .024" NOMINAL
.0075" WALL POLYETHYLENE; OD .039" NOMINAL
P1: WHITE/BLUE, BLUE
2 CONDUCTORS TWINNED LEFT HAND LAY
4/P CABLED LEFT HAND LAY (BLUE BINDER, ORANGE BINDER)
PAPER TAPE
1 PAIR: 18 AWG SHIELDED
18 AWG 16/30 TINNED COPPER; OD .046" NOMINAL
.010" WALL PVC; OD .066" NOMINAL
BLACK, RED
#22 7/30 TINNED COPPER
ALUM/POLYESTER TAPE (FOIL SIDE IN)
TWO ELEMENT #1 & ELEMENT #2 CABLED ON COMMON
CLOTH TAPE 25% OVERLAP
.045" WALL FLEXIBLE PVC,
BLACK MATT
.375 INCHES NOMINAL
NONEMARKING:
