Instrument Overview 2-4 Tilt Bail Stand
MS2090A UG PN: 10580-00444 Rev. U 2-7
2-4 Tilt Bail Stand
The attached tilt bail can be used for desktop operation. The tilt bail provides a backward tilt for improved
stability and air flow. To deploy the tilt bail, pull the bottom of the tilt bail away from the back of the
instrument. To store the tilt bail, push the bottom of the bail towards the back of the instrument and snap the
bail into the clips on the back of the instrument.

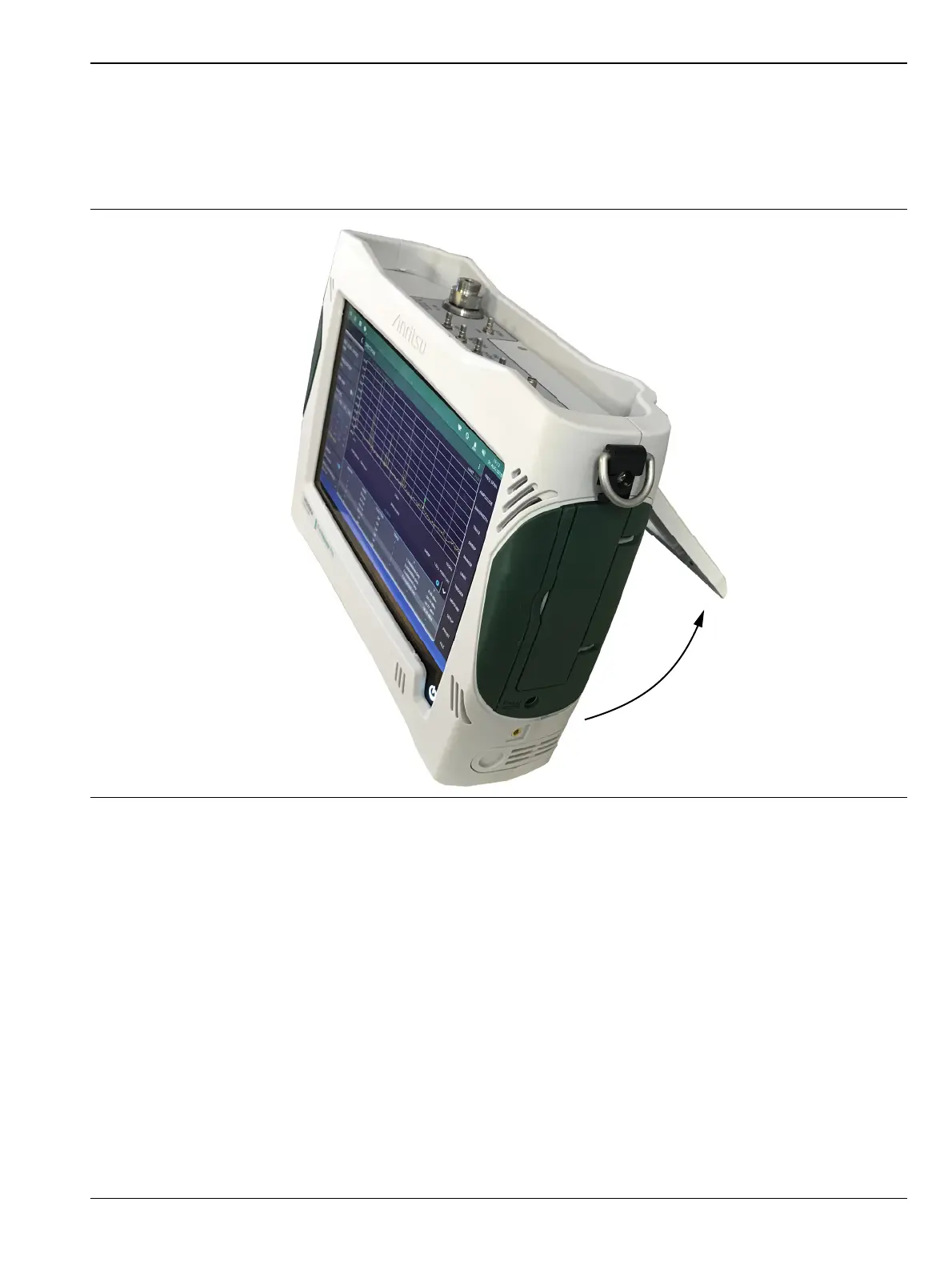

Figure 2-4. Tilt Bail Stand
