3-13 DVB-T/H Signal Analyzer (Options 64 and 57) Verification Performance Verification 2
3-88 PN: 10580-00177 Rev. D MS2721B MM
14. Set the MS2721B to DVB-T/H Signal Analyzer mode and preset the unit.
15. Press the Meas Selection function hard key and ensure that Signal Power is activated.
16. Press the Frequency/Level function hard key and ensure that the MS2721B is set to Channel 21 and that
the Pre Amp is OFF.
17. Set the Reference Level to –25 dBm.

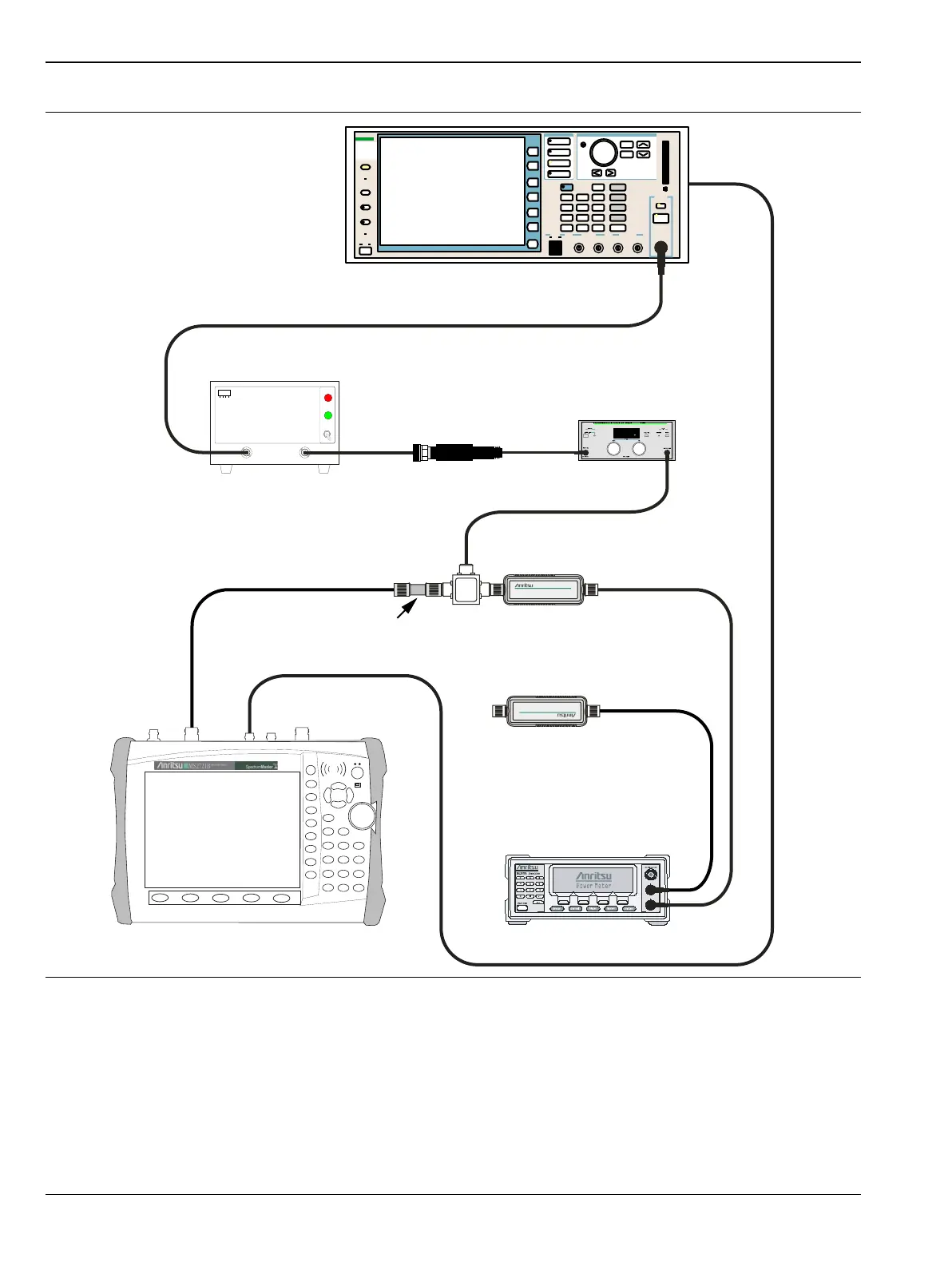

Figure 3-24. DVB-T/H Option 64 – 1 dB Compression Level Verification – Sensor B Only
Function
Ethernet Control Input Modulation Input
Cursor/Edit
RF Output
3
MG3700
Vector Signal
Generator
250kHz-6GHz
3
Mini-Circuits
RF POWER AMPLIFIER
MODEL TIA - 1000 - 1R8
INPUT
OUTPUT
ON
OFF
TEMP
AC
0.5 - 100 MHz 35dB GAIN
4 WATTS SATURATED
1.8 WATTS LINEAR
10 MHz Out
15NN50-1.5C
Sensor B
MS2721B
MG3700A
ML2438A Power Meter
1870A
IN50C
RF POWER AMPLIFIER
34NN50A
MN63A
15NN50-1.5C
15NN50-1.5C
To Next Page
