Anritsu Spectrum Master MS2721B Maintenance Manual

2-2 Spectrum Analyzer Function Verification Performance Verification 1
2-28 PN: 10580-00177 Rev. D MS2721B MM
9 kHz to 100 kHz Amplitude Accuracy Verification
Required Equipment:
• Anritsu MG3692x Synthesized Signal Generator
• Frequency Reference Symmetricom Rubisource T&M
• Spectrum Master Model MS2721B
• Power Meter, Anritsu Model ML2438A
• Agilent Model 34401A Digital Multimeter
• (2) Fixed Attenuator, Aeroflex/Weinschel Model 44-10
• (2) Power Sensor, Anritsu Model MA2442D
• Power Splitter, Aeroflex⁄Weinschel Model 1870A
• (2) Adapter, Anritsu Model 34NN50A
• Low Frequency Cal Fixture, Anritsu Model T3449
• Coaxial Cable, BNC(m) to BNC(m), 50 ohm
• Adapter, Dual Banana Plug to BNC(f)
Component Characterization:
1. Connect the equipment as shown in Figure 2-11.

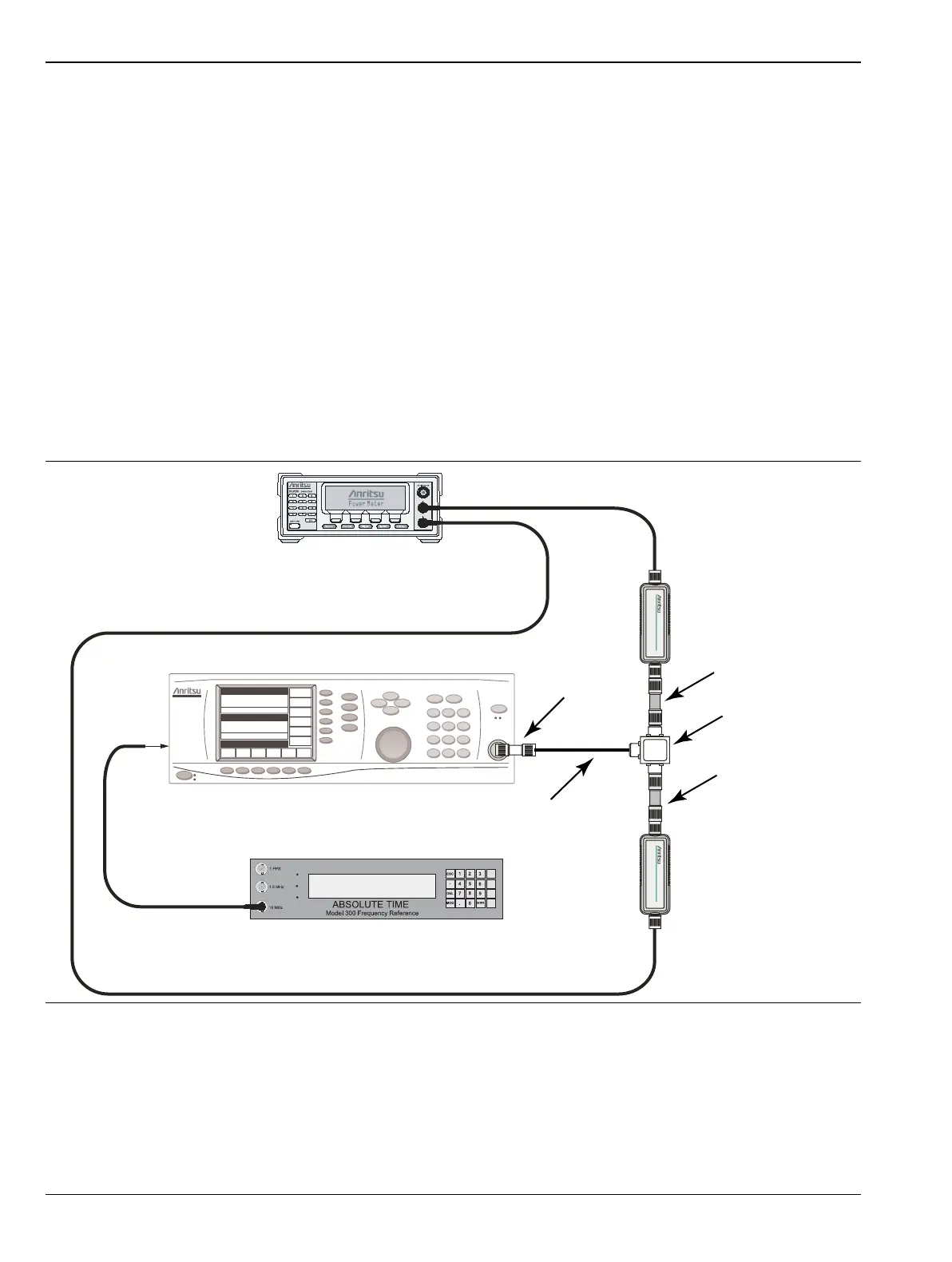

Figure 2-11. 9 kHz to 100 kHz Amplitude Accuracy Verification Component Characterization
Sensor A
Sensor B
1870A
Power Splitter
Adapter
ML2438A Power Meter
MG369XA Source
10 MHz Reference
to rear panel
connector
Attenuator
10 dB
Attenuator
10 dB
15NNF50-1.5B
